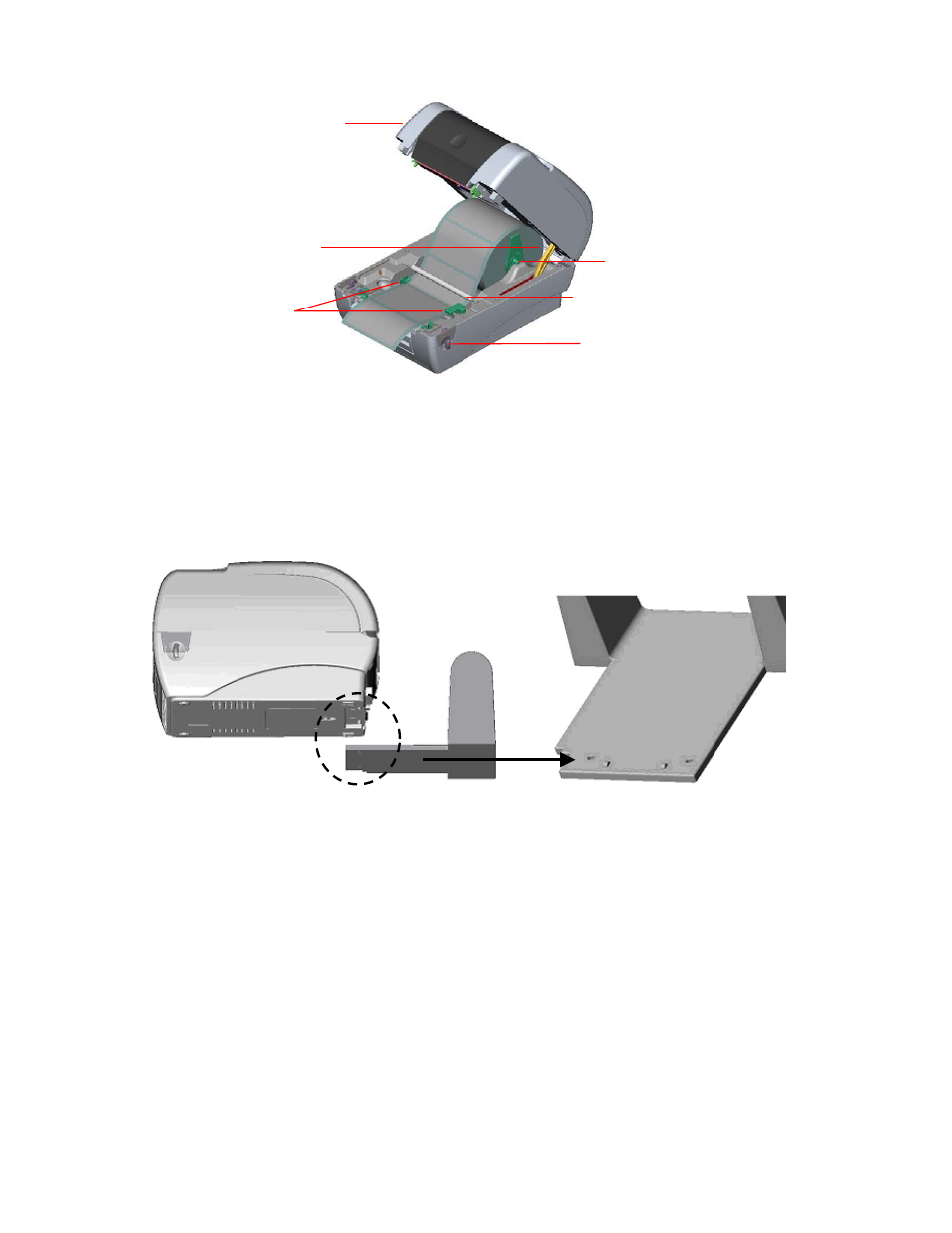

Fig. 8 Media installation (II)
3.5 External Media Roll Mount Installation (Option)
1. Attach an external media roll mount on the bottom of the printer.
Fig. 9 Attach the external roll mount to the printer
2. Open the printer top cover by releasing the top cover open levers. The top
cover support will hold the cover open.
3. Install a roll of media on the external roll mount.
4. Feed the media (printing side face up) into the external opening located at the
rear of the printer and then through the media guides.
Printer Top Cover
Top Cover Support
Media Guide
Teflon Bar
Top Cover Open Lever
Paper Roll Mount
