Peel-off panel

Backing paper

Opening

3.6.1 Loading Labels into Peel-off Module

Note: Both thermal paper and plain paper labels apply for peel-off

function, neither PVC nor vinyl work with peel-off function.

1. Insert a 1” label spindle into a label roll.

2. Open the printer top cover by pulling the top cover open levers. The top cover

support will hold the printer top cover.

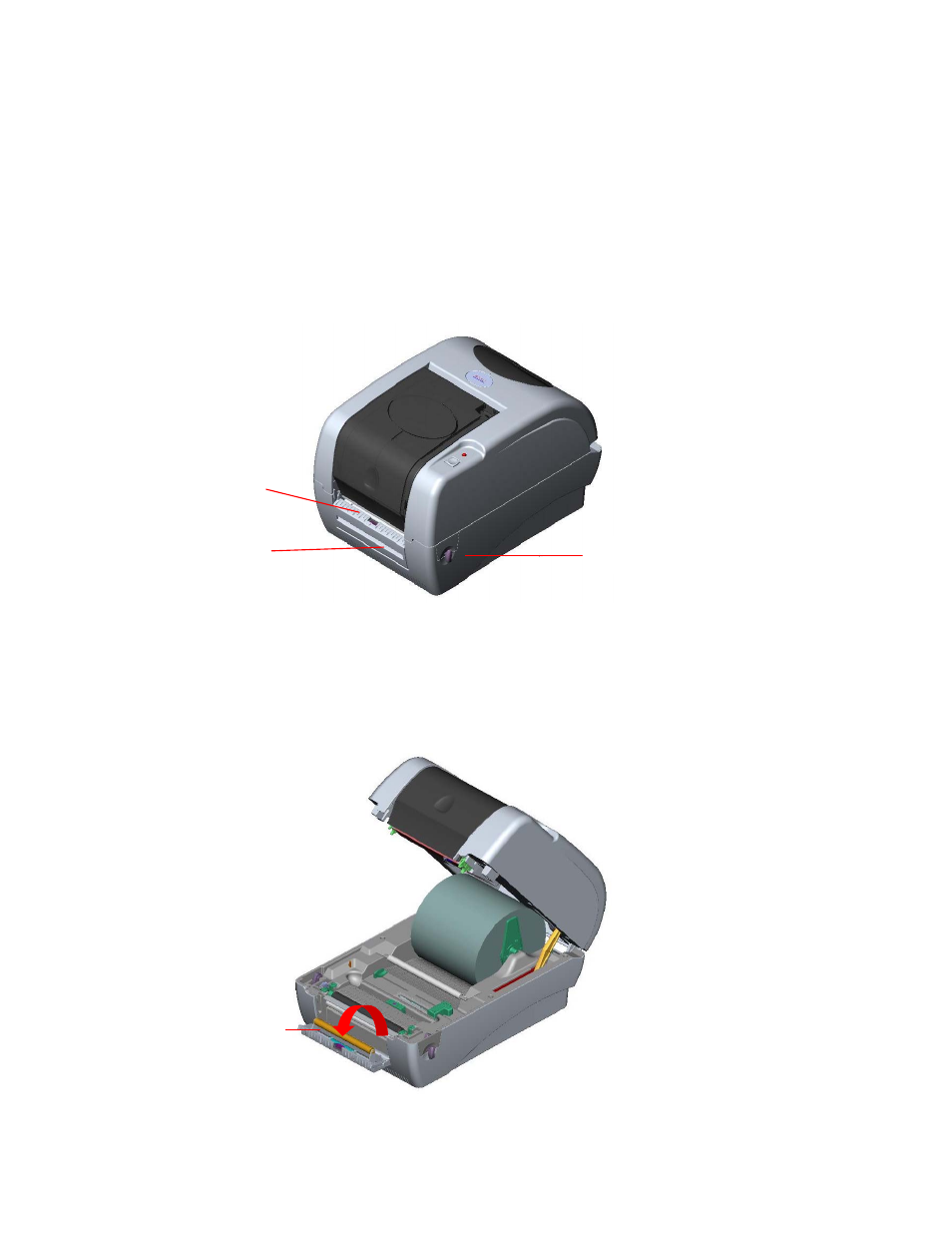

Fig. 18 Open the top cover

3. Install the label roll onto the paper roll mount.

4. Open the peel-off panel by pulling it forward.

Fig. 19 Open the peel-off panel

Peel-off

panel

Top Cover Open Lever
