4 loading media stock – AMT Datasouth M5TT Plus User Manual
Page 11

Document #120522 Rev-A
8

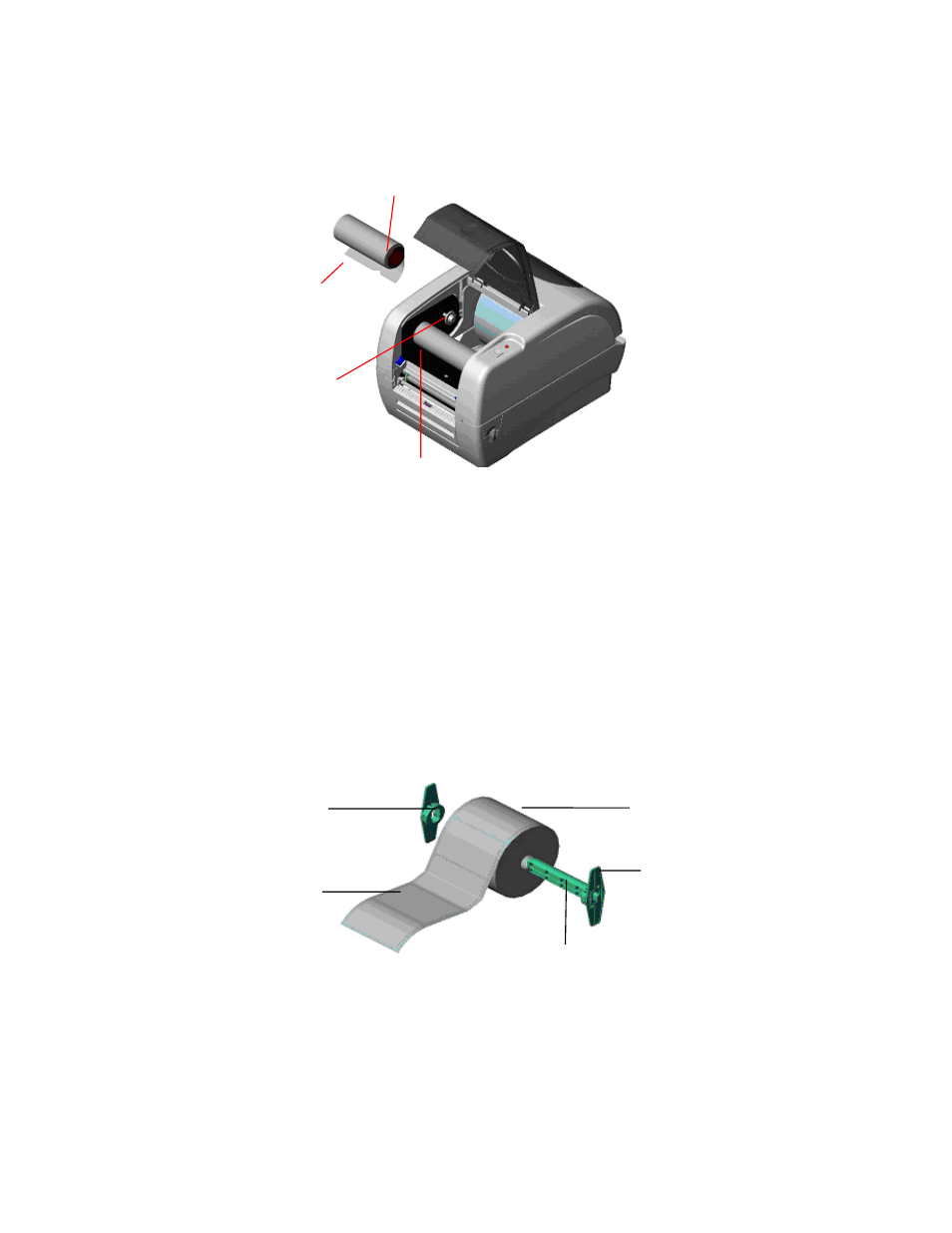

Fig. 5 Ribbon installation (II)
3.4 Loading Media Stock
1. Insert spindle into a media roll (If your media core is 1 inch, remove the 1.5 inch
core adapter from the fixing tab). If label width is 4 inch wide, two fixing tabs are
not required).
Fig. 6 Label Roll installation (I)
Rear Hub
Ribbon
Leader
Ribbon supply spindle
Ribbon Rewind Spindle with Paper Core
Paper Roll
1” Media Spindle
Printing Side
Face Up
1.5” Core
Adapter
*
Fixed Tab
