3.7 Cutter Module Installation (Option)
1. Pull the top cover open levers to open the top cover.
2. Remove the front panel from the lower cover.

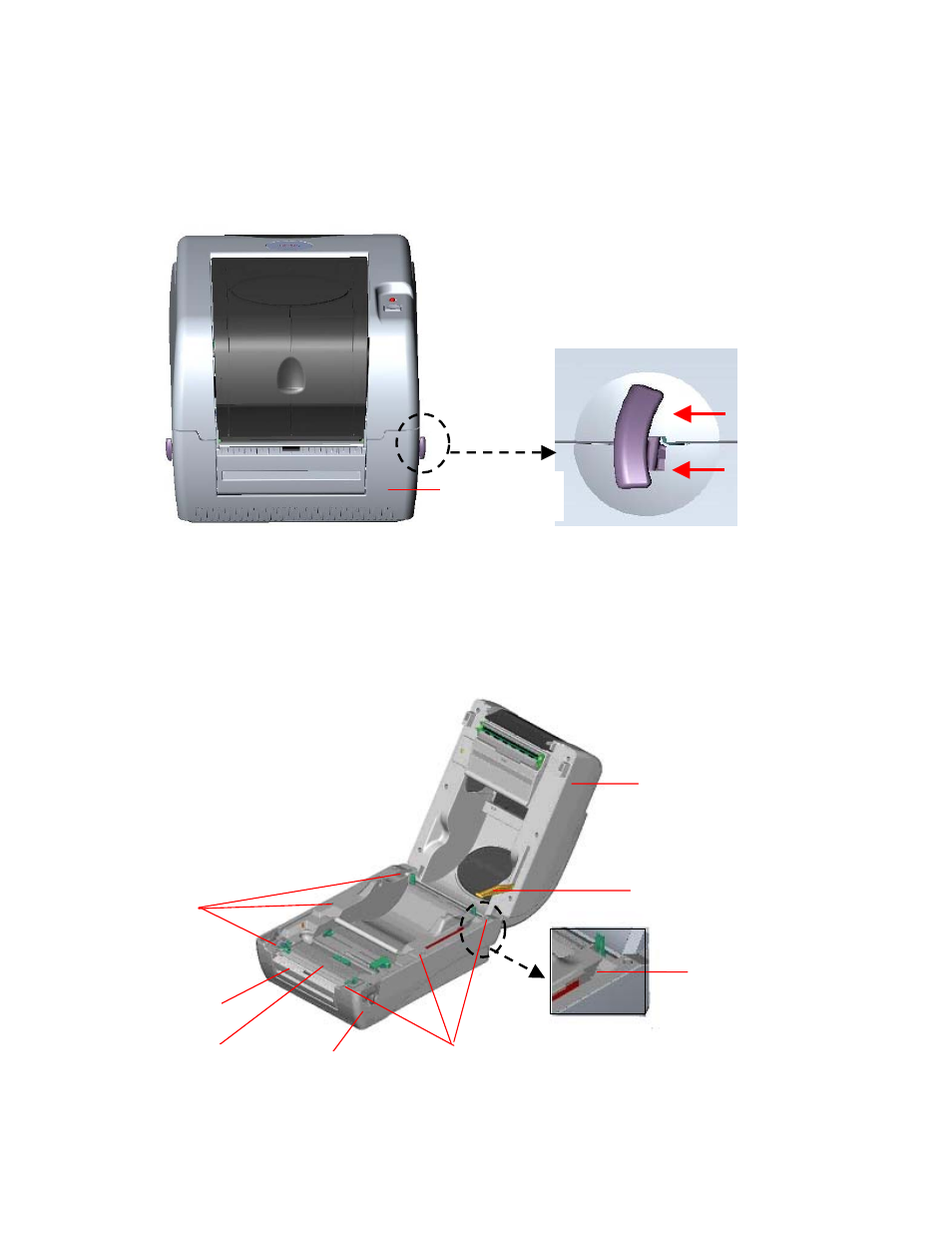

Fig. 22 Pull the lever to open the cover
3. Lift and hold the top cover while pushing down and sliding the cover support
arm backwards to release.
4. Use a screwdriver to remove 6 screws on the lower inner cover.
Fig. 23 Remove 6 screws from lower inner cover
Lower Cover
Screws
Top Cover
Screws
Top Cover Support
Flute
Lower Cover
Lower Inner Cover
Front Panel
