5
2.ASSEMBLY DIAGRAM & MAJOR PARTS CHECK
2-1. ASSEMBLING DIAGRAM

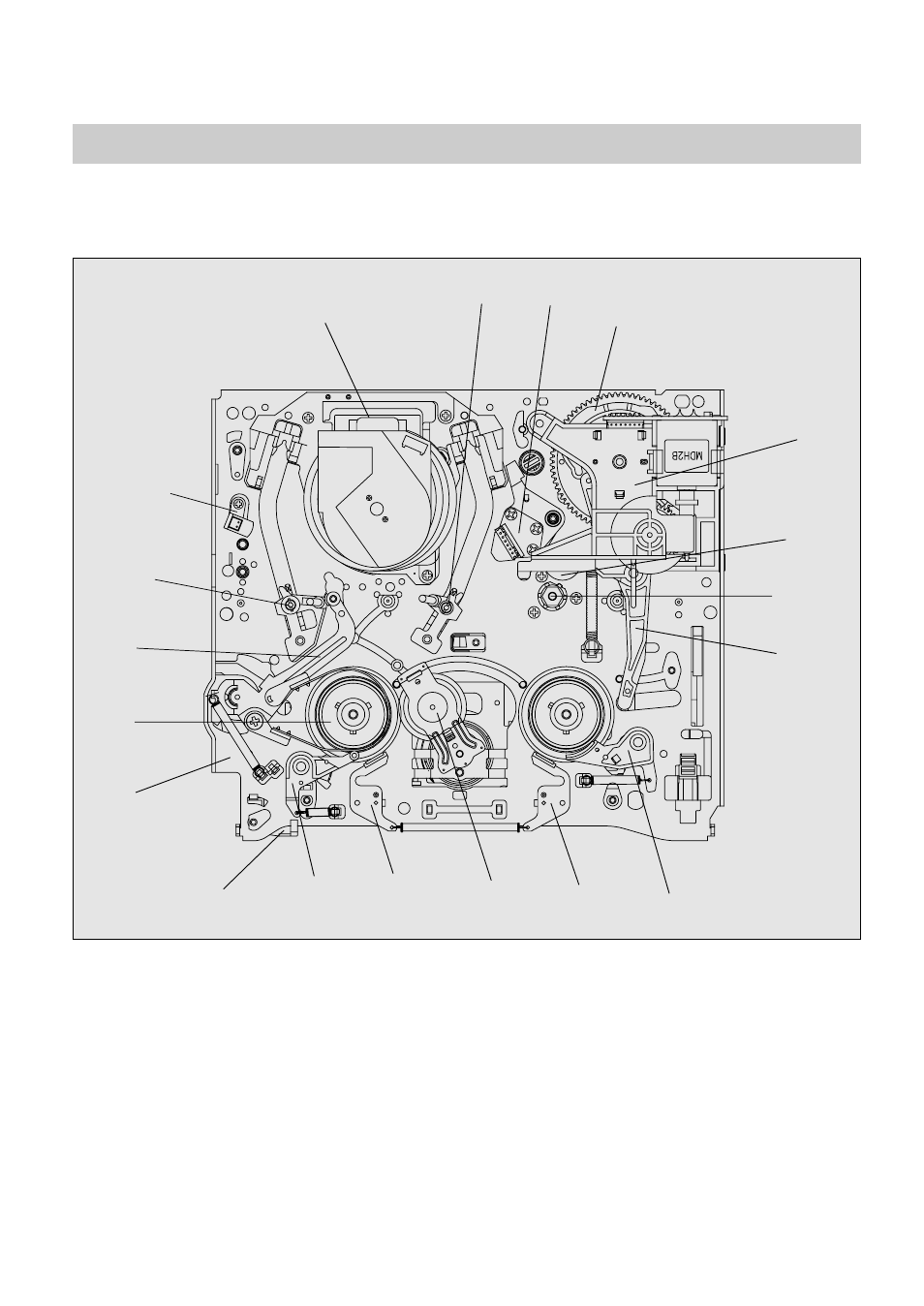

2-1-1) ASSEMBLING DIAGRAM OF DECK ASS'Y
A. TOP VIEW
8
9
7
6
5
4
3
2
1
) (
*
&
^
%
$
#
@
!
1. FE HEAD
2. S SLANT POLE ASS'Y
3. TENSION BAND ASS'Y
4. REEL TABLE
5. MAIN BASE ASS'Y
6. RECORD SAFETY LEVER
7. S SUB BRAKE ASS'Y
8. S MAIN BRAKE ASS'Y
9. IDLER PLATE TOTAL ASS'Y
10. T MAIN BRAKE ASS'Y 11. T-SUB BRAKE ASS'Y
12. RELAY LEVER
13. CAPSTAN MOTOR
14. PINCH LEVER TOTAL ASS'Y
15. L/C BRKT TOTAL ASS'Y
16. CAM GEAR
17. A/C HEAD TOTAL ASS'Y
18. T SLANT POLE ASS'Y
19. DRUM TOTAL ASS'Y
