Daewoo K3050MECHA User Manual

Page 17

3-4. REEL BELT, LOADING RACK ASS'Y, LOADING ASS'Y, S/T SLANT POLE ASS'Y

REMOVAL

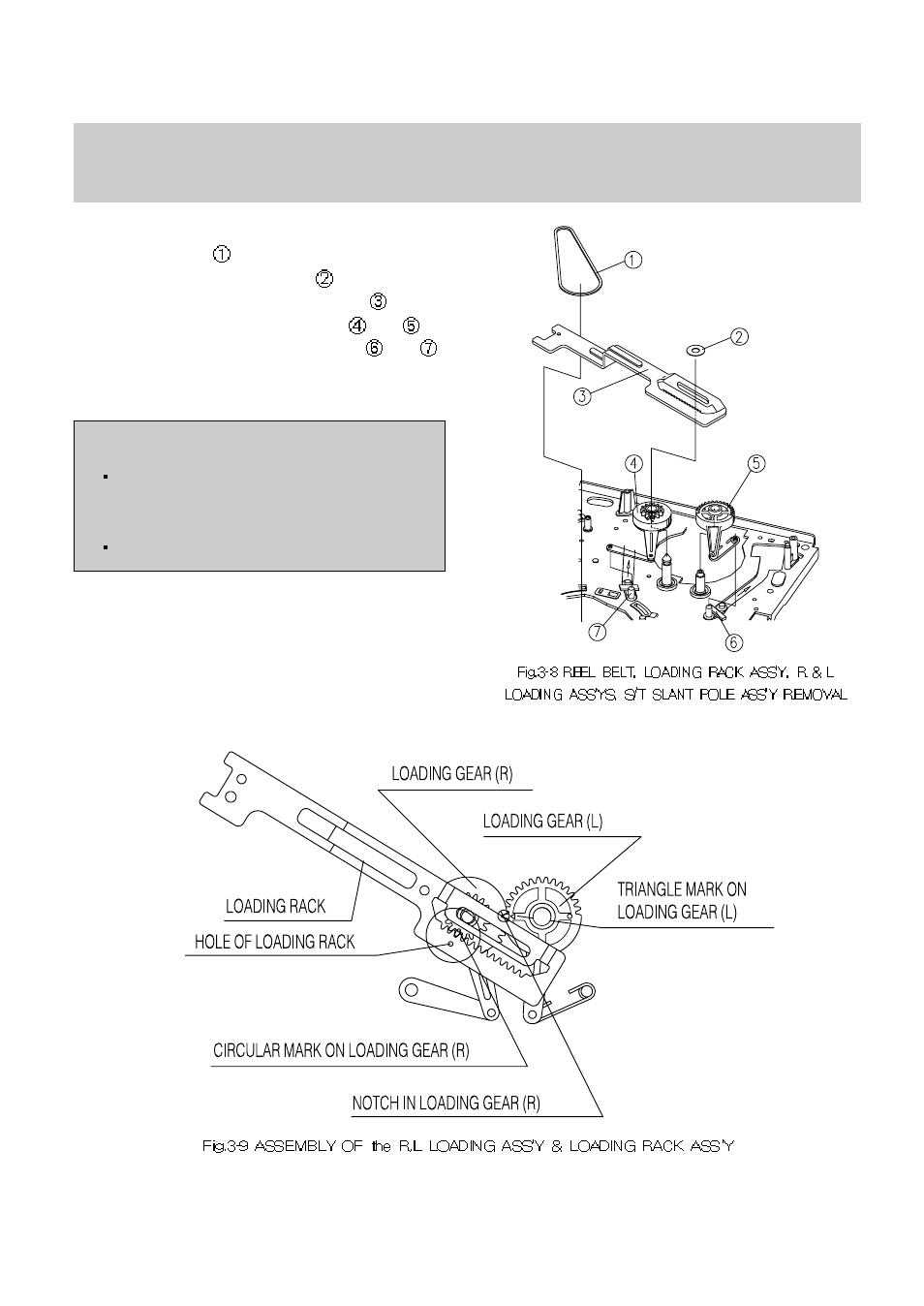

(See Fig.3-8)

a. Turn over the DECK MECHANISM and remove

the REEL BELT .

b. Remove one POLY WASHER

c. Remove the LOADING RACK ASS'Y .
d. Remove R & L LOADING ASS'YS

and .

e. Remove the S and T SLANT POLES

and

by pulling them in the directions of the arrows.

CAUTION:

Take care not to get the GUIDE

ROLLERS of the S/T SLANT POLES
stained with GREASE

When reassembling, refer to Fig. 3-9
