20

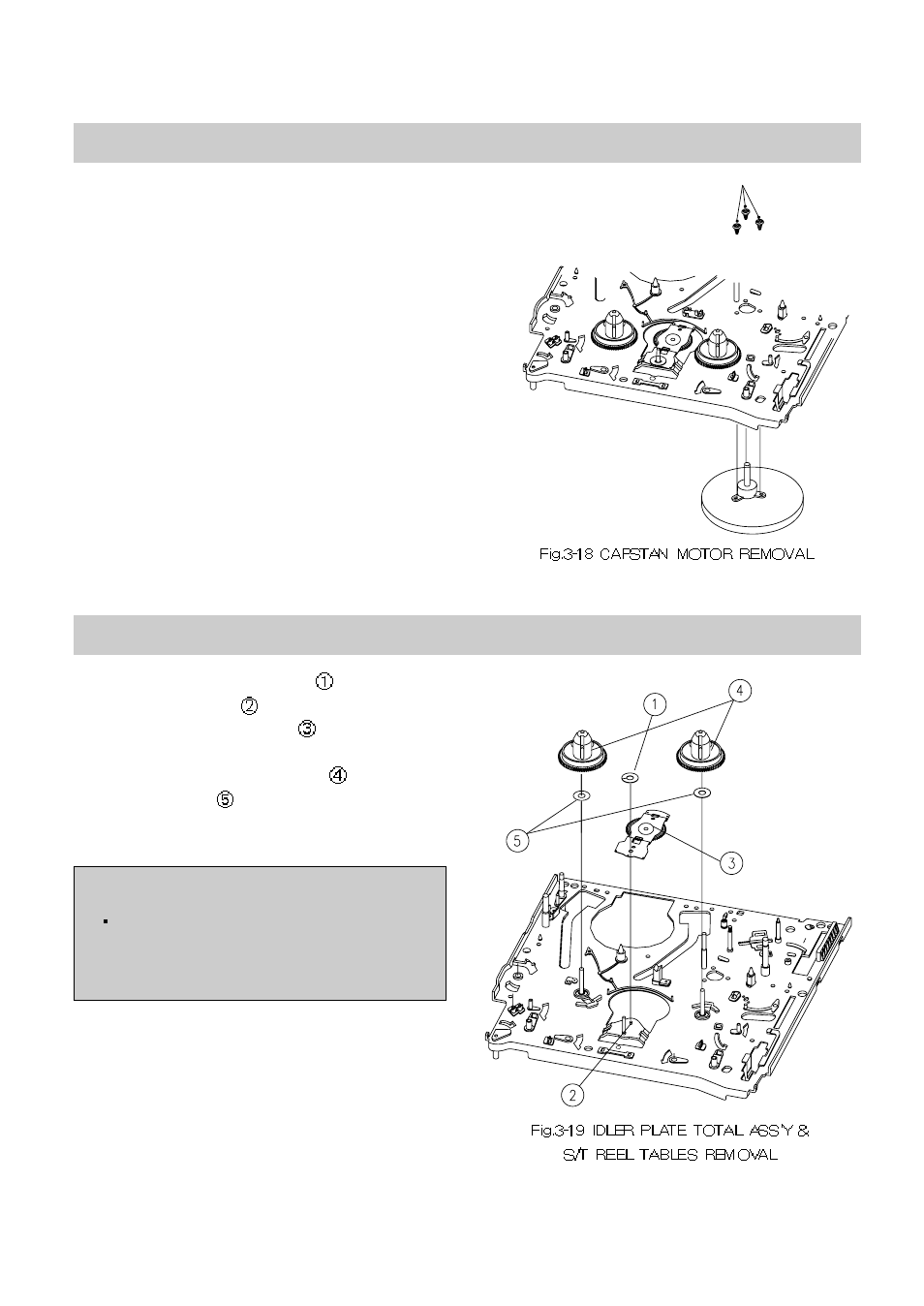

3-11. CAPSTAN MOTOR REMOVAL (See Fig.3-18)
3-12. IDLER PLATE TOTAL ASS'Y & S/T REEL TABLE REMOVAL (See Fig.3-19)
Remove 3 screws fixing the CAPSTAN MOTOR
and separate the CAPSTAN MOTOR.
a. Remove one POLY WASHER from the
REEL GEAR POST and remove the IDLER
PLATE TOTAL ASSEMBLY from the MAIN
BASE.
b. Remove the S/T REEL TABLES and two
POLY SLIDERS from the DECK
MECHANISM.
CAUTION:
When disassembling or assembling the
IDLER PLATE TOTAL ASSEMBLY, take
care not to bend it.
