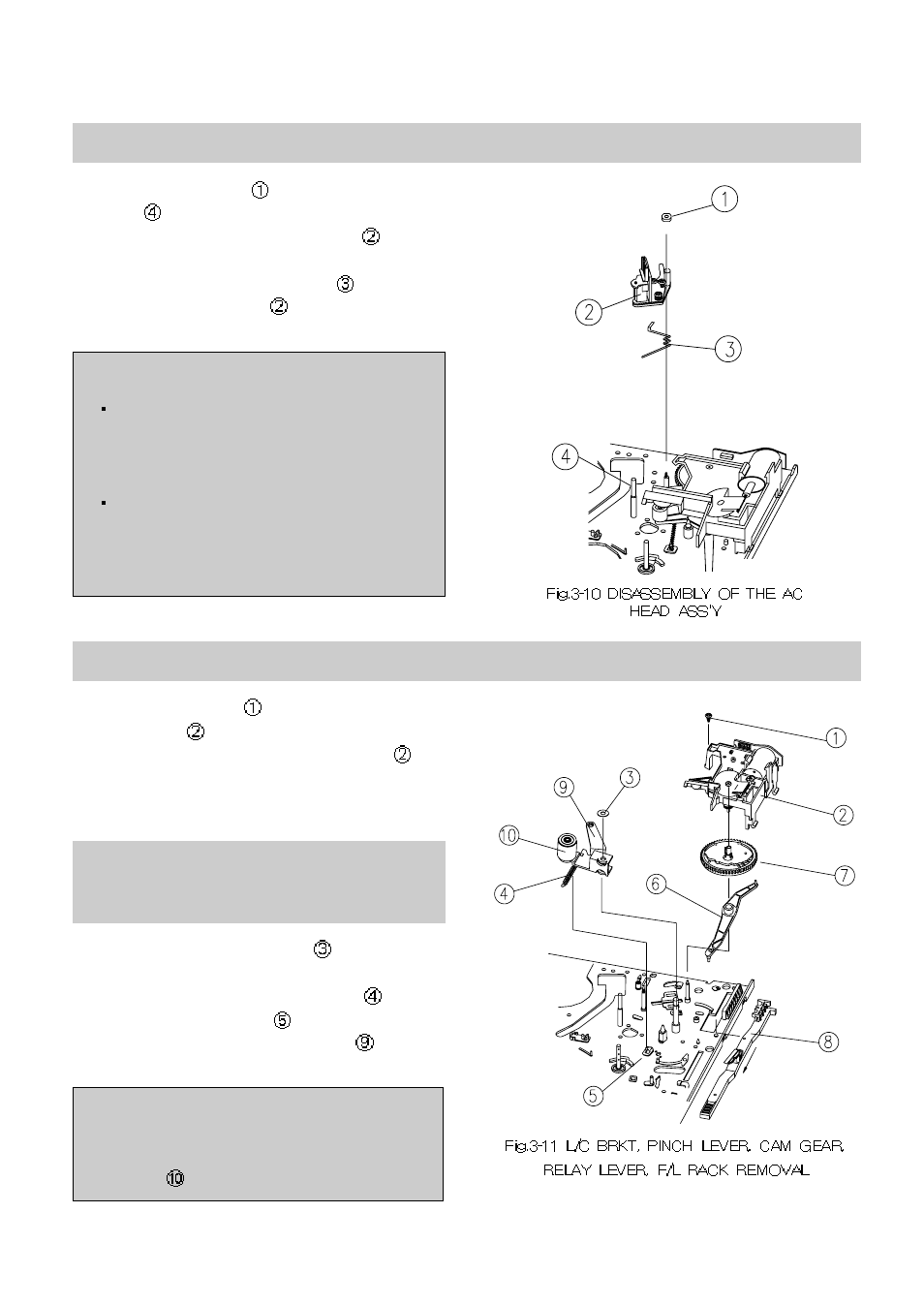

3-5. A/C HEAD ASS'Y REMOVAL (See Fig.3-10)
a. Remove one nut hex from the A/C HEAD
POST of the MAINBASE.
b. Remove the A/C HEAD ASSEMBLY from
the MAINBASE.
c. Remove the A/C HEAD SPRING from the
A/C HEAD ASSEMBLY .
NOTE:
After reassembling, adjust the TAPE
TRANSPORTING SYSTEM refering to
chapter 5 "ADJUSTMENT OF THE TAPE
TRANSPORTING SYSTEM".
After adjusting the TAPE
TRANSPORTING SYSTEM, spread the
A/C HEAD/NUT, AZIMUTH SCREW, and
TILT SCREW with LOCKING PAINT.
3-6. L/C BRACKET ASS'Y REMOVAL (See Fig.3-11)
a. Remove one screw from the L/C BRACKET
ASSEMBLY .
b. Remove the L/C BRACKET ASSEMBLY
from the MAINBASE.
3-7. PINCH LEVER
TOTAL ASS'Y REMOVAL (See Fig.3-11)
a. Remove one POLY WASHER from the
PINCH LEVER POST of the MAINBASE.
b. Unhook the PINCH LEVER SPRING from
the hook of MAINBASE and remove the
PINCH LEVER TOTAL ASSEMBLY .
CAUTION:
Take care not to coat GREASE, OIL or other
substances on the surface of the PINCH
ROLLER
.
