19

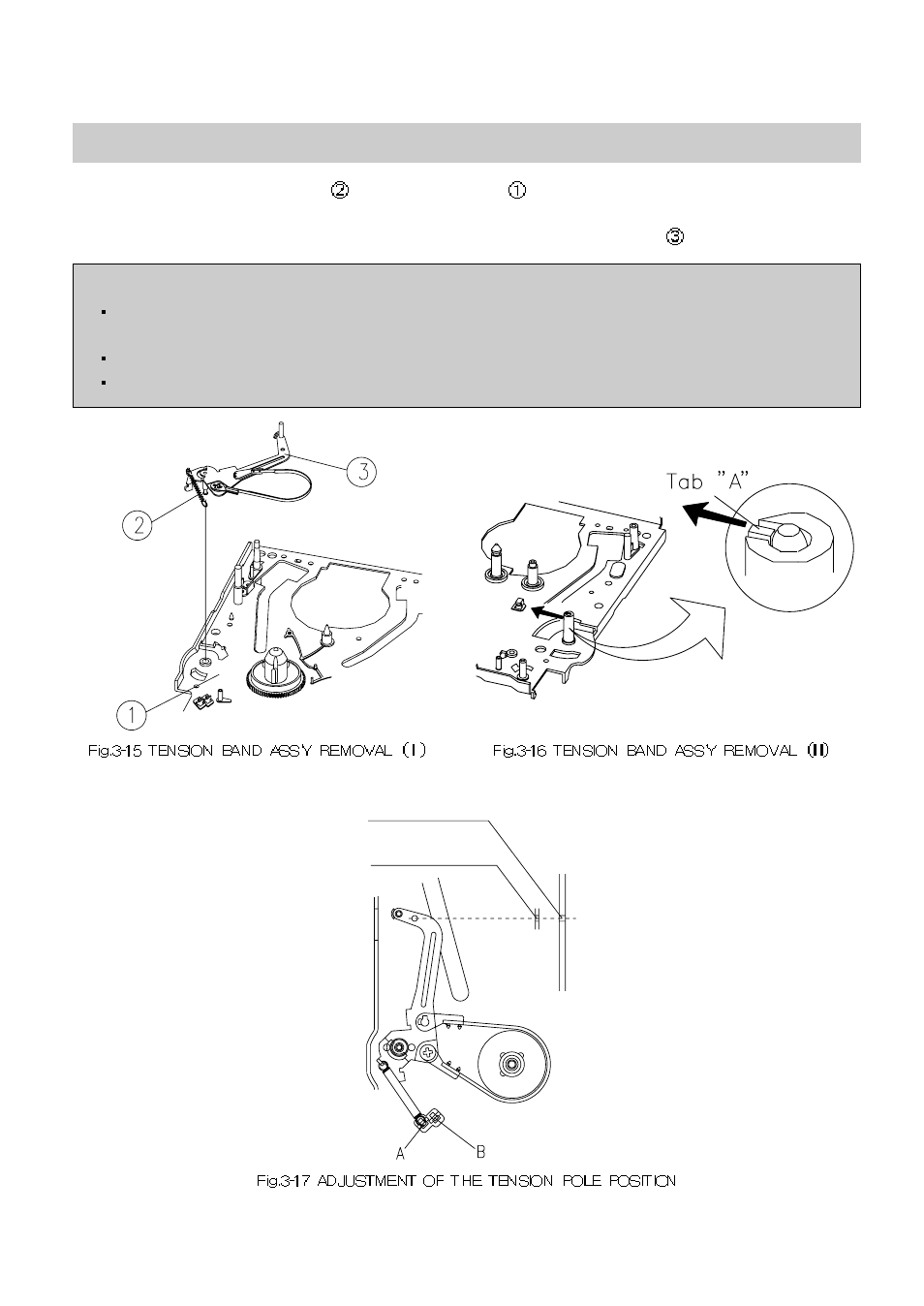

3-10. TENSION BAND ASS'Y REMOVAL (See Fig.3-15, 3-16)
a. Remove the TENSION SPRING from the MAINBASE . (Fig.3-15)
b. Turn the DECK MECHANISM over. (Fig.3-16)
c. After separating the tab of hook 'A', remove the TENSION BAND ASSEMBLY . (Fig.3-16)
NOTE:
After assembling the TENSION BAND ASSEMBLY on the MAINBASE, adjust the position of
TENSION POLE as shown Fig. 3-17.
Avoid getting GREASE, OIL or foreign substance on the FELT of the BAND BRAKE.
Take care not to deform tab 'A' when separating it .
DATUM HOLE OF MAINBASE
DATUM HOLE OF
TENSION LEVER
