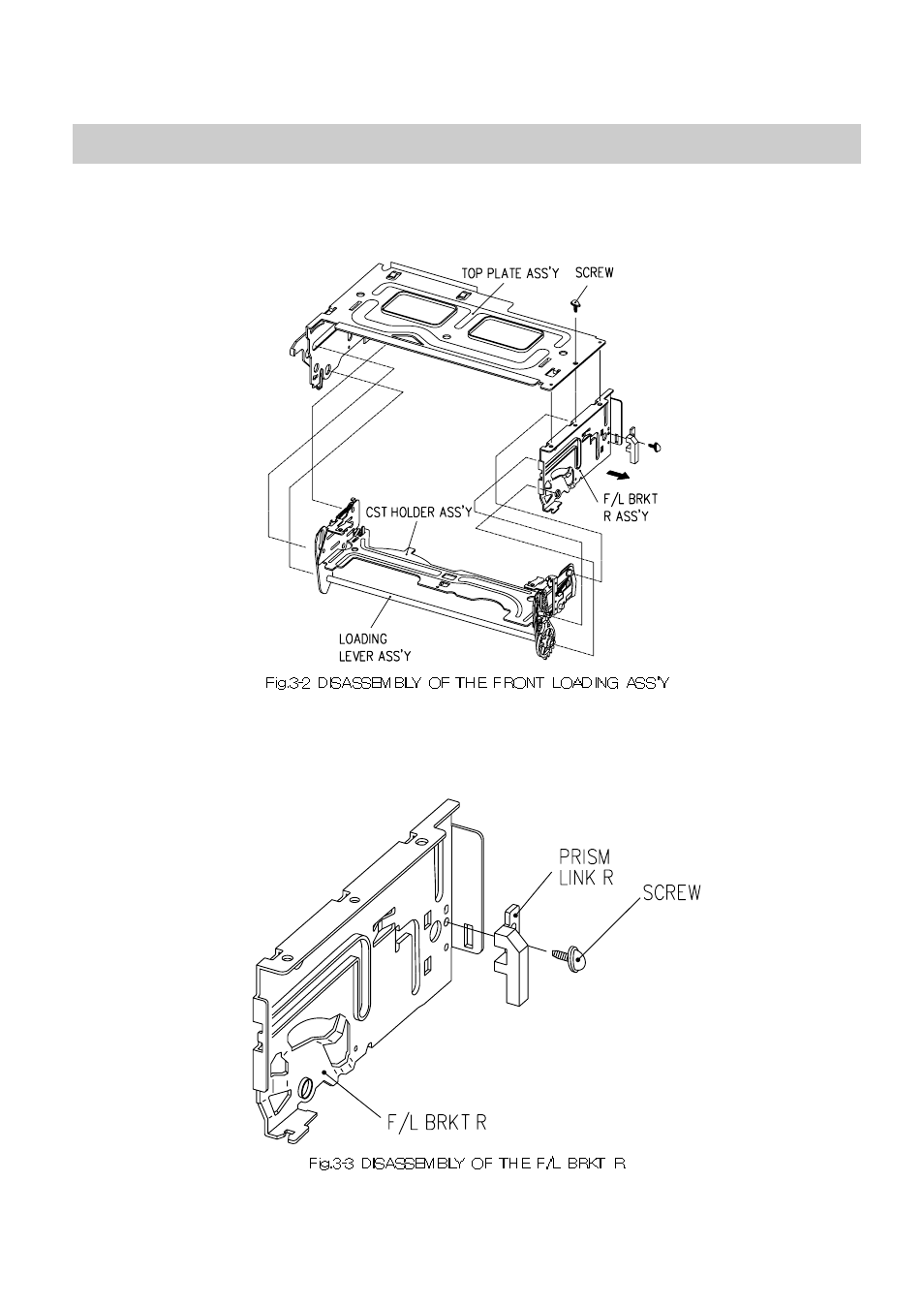

3-2. DISASSEMBLY OF THE FRONT LOADING ASS'Y
(See Fig. 3-2~3-6)
a. Remove one screw holding the F/L BRACKET R and move the F/L BRACKET R in the direction of arrow
to separate it from the TOP PLATE and CASSETTE HOLDER ASSEMBLY.
b. Remove the CASSETTE HOLDER ASSEMBLY. (Fig. 3-2)
c. Remove one screw holding the PRISM LINK R and remove the PRISM LINK R from the F/L BRACKET R.
(Fig. 3-3)
