3-8. CAM GEAR, RELAY LEVER AND F/L RACK REMOVAL (See Fig.3-11)
a. Remove the CAM GEAR from the MAINBASE. (Fig.3-11)
b. Remove the RELAY LEVER from the MAINBASE. (Fig. 3-11)
c. Remove the F/L RACK from the MAINBASE by pulling it in the direction of the arrow.
NOTE:

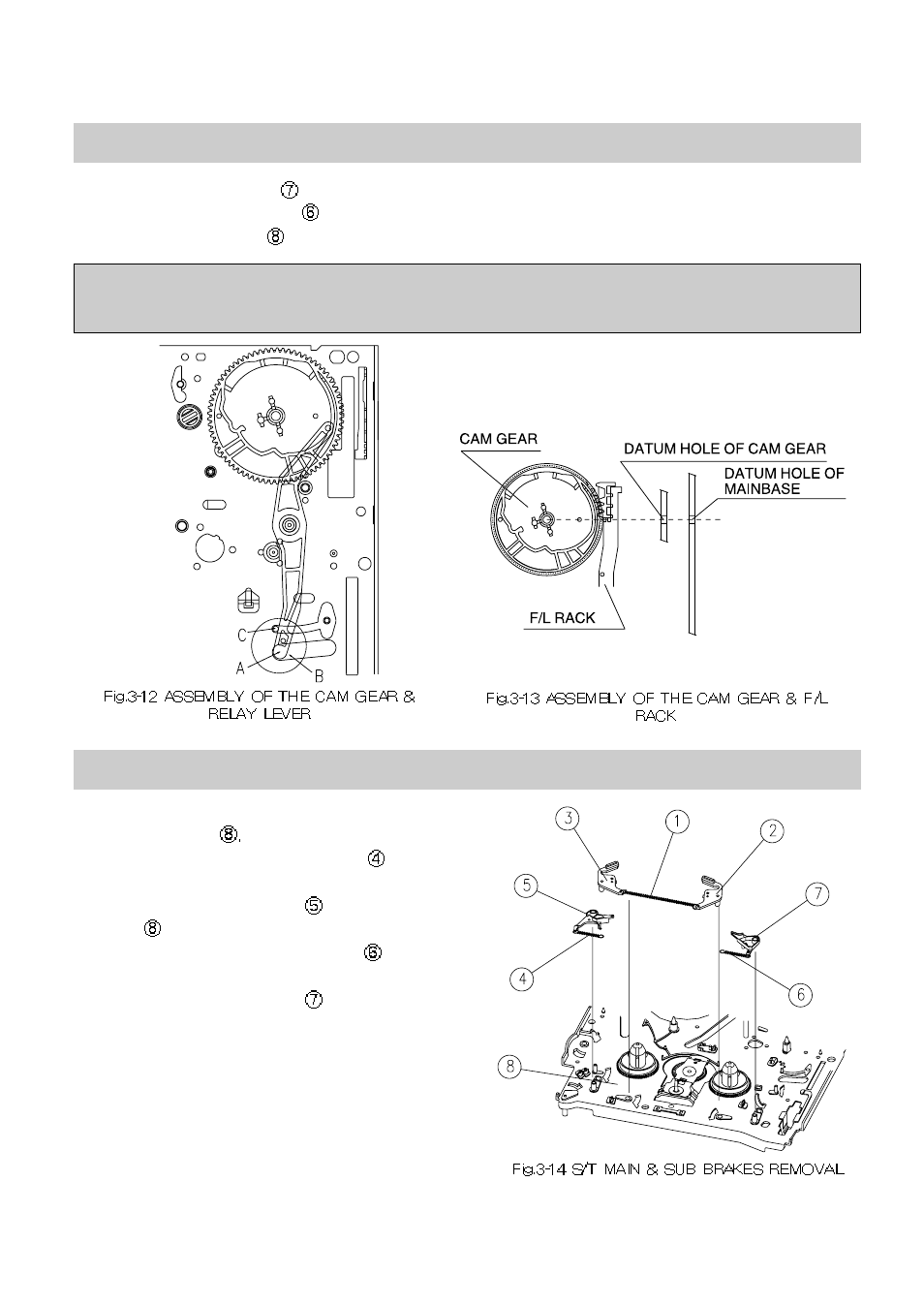

When reassembling, refer to Fig. 3-12, 13.
3-9. S/T MAIN & SUB BRAKE ASS'Y REMOVAL (See Fig.3-14)
a. Remove the S, T MAIN BRAKE Assembly from
the MAIN VASE
b. Unhook the S SUB BRAKE SPRING from
the MAINBASE and remove the S SUB
BRAKE LEVER ASSEMBLY
from the MAIN
BASE .
c. Unhook the T SUB BRAKE SPRING from
the MAINBASE and remove the T SUB
BRAKE LEVER ASSEMBLY
.
