TME-EPIC-HURQM-R2V9 Revision 2.9 Page 21 of 74

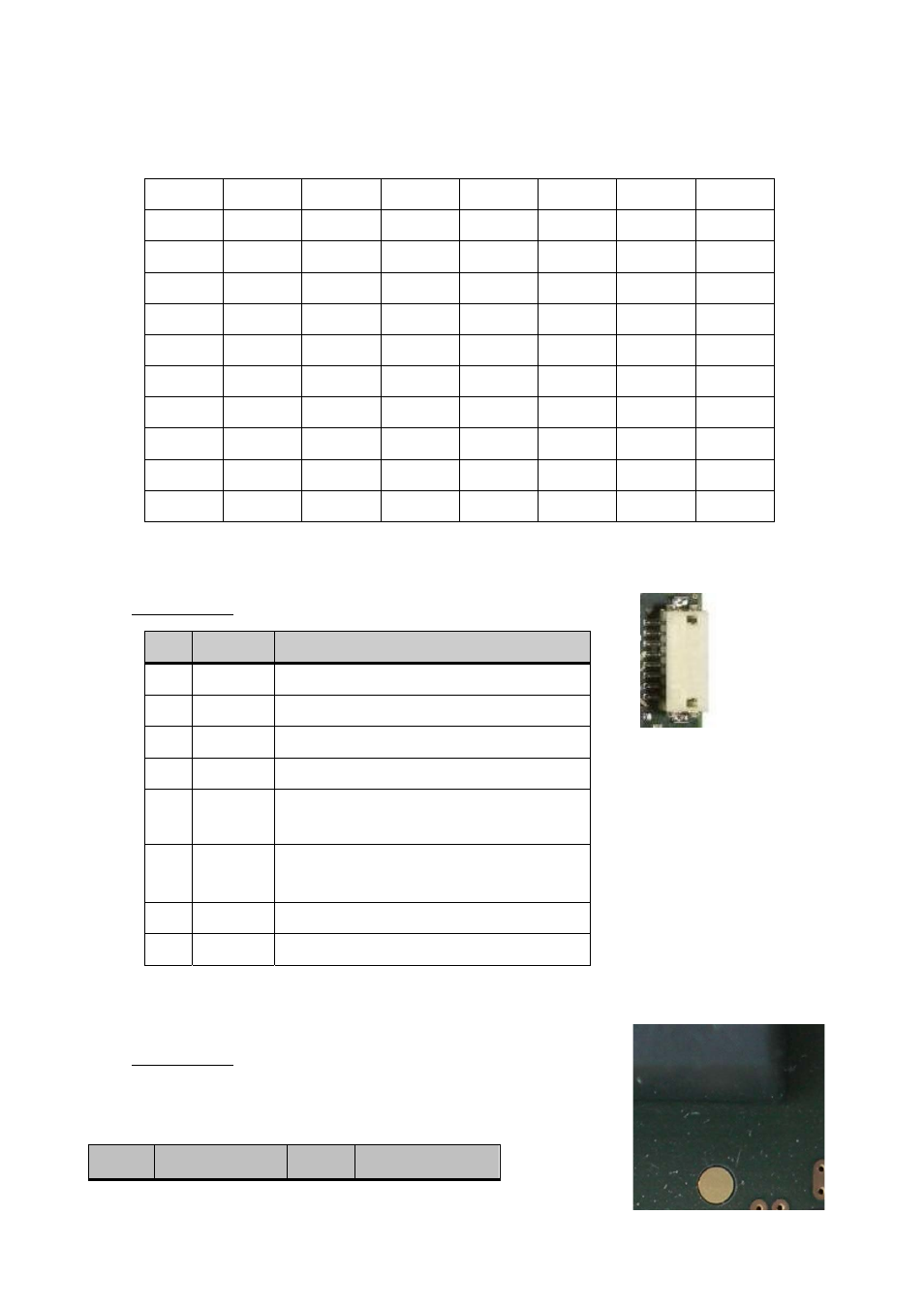

LVDS Color Mapping
Display Backlight Connector (X25)
Connector type: Hirose DF13 8 Pin
Display Voltage Selector (X11)
Jumper for voltage selection of LVDS and Backlight.
Connector type: IDC6 jumper 2.00 mm.
Use a 2mm jumper between 1-3 or 3-5 to select the display voltage.
Use a 2mm jumper between 2-4 or 4-6 to select the backlight voltage.
Pin Signal Pin Signal
1 2 3 4 5 6 7
CLKA 1 1 0 0 0 1 1
A0 G2 R7 R6 R5 R4 R3 R2
A1 B3 B2 G7 G6 G5 G4 G3
A2 DE VS HS B7 B6 B5 B4
A3 0/B1 B1 B0 G1 G0 R1 R0
CLKB 1 1 0 0 0 1 1
B0 G2 R7 R6 R5 R4 R3 R2
B1 B3 B2 G7 G6 G5 G4 G3
B2 DE VS HS B7 B6 B5 B4
B3 0/B1 B1 B0 G1 G0 R1 R0
Pin Direction Signal
1 Output +12 V DC, max. 1A
2 Output +12 V DC, max. 1A
3 Output +5 V DC, max. 1A
4 Output +5 V DC, max. 1A
5 Output Signal: Backlight Brightness Control (level: 3.3
V)
6 Output Switched Inverter Power, max. 1A (refer to “
Display Voltage Selector” below)
7 GND
8 GND
