The display options of LVDS are shown in the table:
Setting
Possible Values
Flat Panel Type
LVDS
Resolution
640x480, 800x600, 1024x768, 1280x1024, 1400x1050,
1600x1200, 1200x768, 1600x1050, 1920x1200
Data Bus Type
18/24 Bits, 2ppc
Refresh Rate
60 70, 72, 75, 85, 90, 100 Hz
HSYNC Polarity
High, Low
VSYNC Polarity
High, Low
LP Active Period
Active Only
only active during SYNC
Free Running
always active
SHFCLK Active Period Active Only
only active during SYNC
Free Running
always active
To ease usage of these displays it’s possible to select the display and backlight supply voltages with the
onboard voltage selector jumpers. (Jumper LVDS and Backlight, see below)

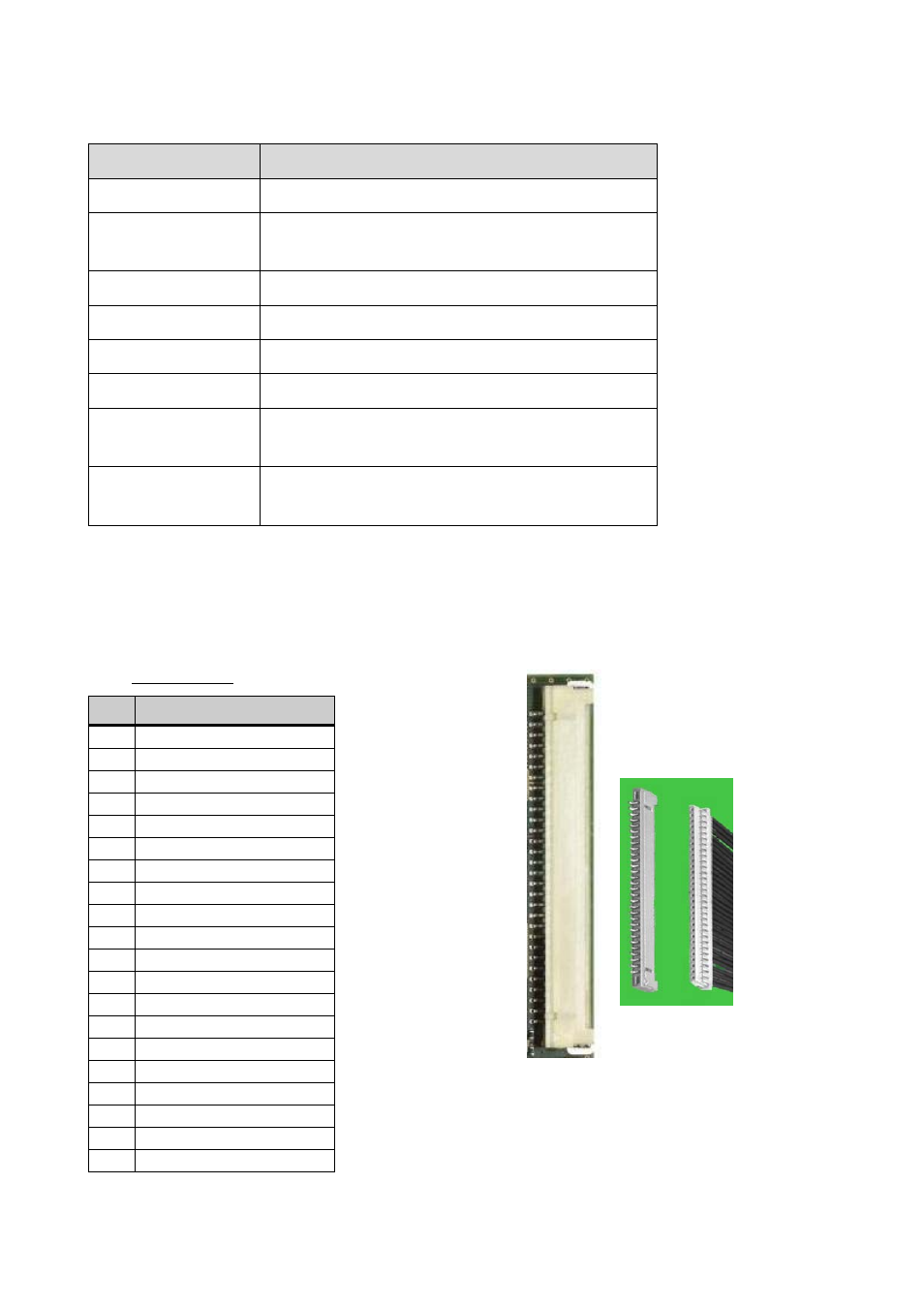

LVDS Connector (X27)
Connector type: DF14-30P-1.25H (Hirose)
Pin
Signal
1
VDD (3.3 V, opt.5 V)
2
VDD (3.3 V, opt.5 V)
3
GND
4
GND
5
TXA3 -
6
TXA3 +
7
TXACLK -
8
TXACLK +
9
GND
10
TXA2 -
11
TXA2 +
12
TXA1 -
13
TXA1 +
14
TXA0 -
15
TXA0 +
16
GND
17
TXB3 -
18
TXB3 +
19
TXBCLK -
20
TXBCLK +
