5 12v dc fan connector, 6 lvds panel backlight control connector, 12v dc fan connector – ADLINK MXC-6000 Series User Manual

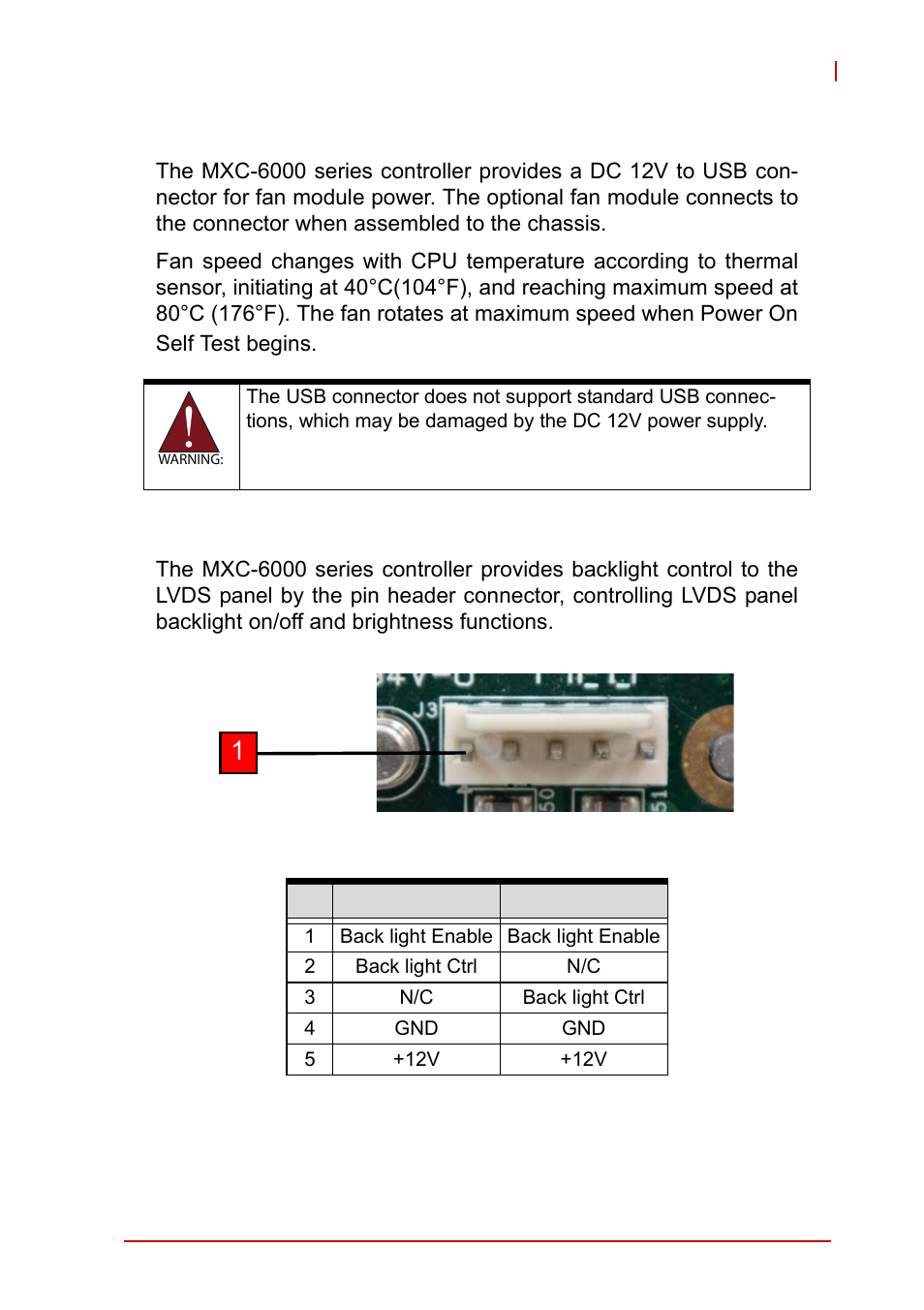

Page 43: Lvds panel backlight control connector, Table 1-18, Backlight connector pin functions
