1 power button, 2 led indicators, 3 reset button – ADLINK MXC-6000 Series User Manual

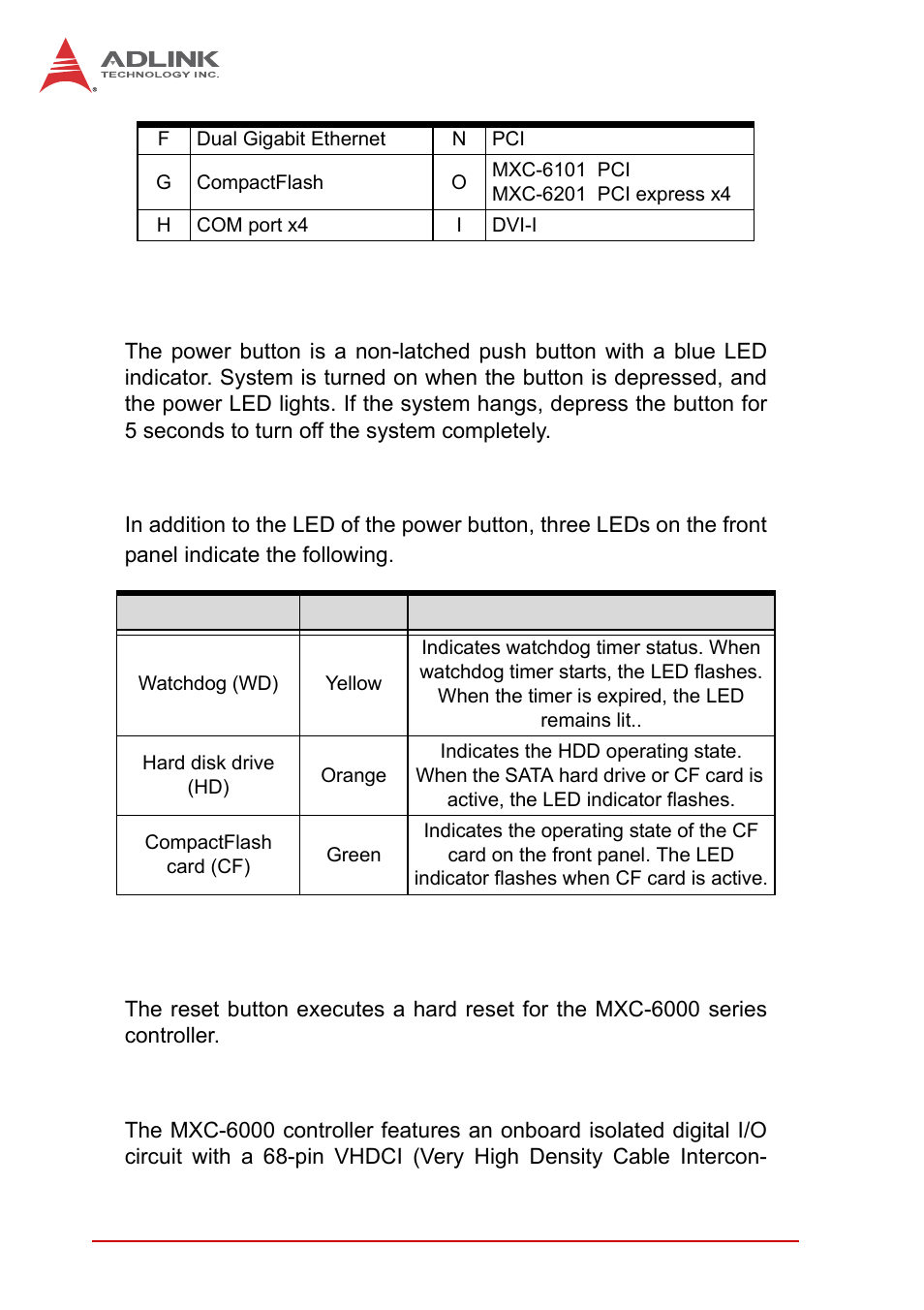

Page 22: 6 digital i/o connector, Power button, Led indicators, Reset button, Digital i/o connector, Table 1-1, Front panel i/o connector legend

1 power button, 2 led indicators, 3 reset button | 6 digital i/o connector, Power button, Led indicators, Reset button, Digital i/o connector, Table 1-1, Front panel i/o connector legend | ADLINK MXC-6000 Series User Manual | Page 22 / 100 1 power button, 2 led indicators, 3 reset button | 6 digital i/o connector, Power button, Led indicators, Reset button, Digital i/o connector, Table 1-1, Front panel i/o connector legend | ADLINK MXC-6000 Series User Manual | Page 22 / 100
