cPCI-R3P00T rJ2 Connector
Table 4-32: cPCI-R3P00T rJ2 Connector Pin Definition
Pin Z A B C D E F
22 GND NC NC NC NC NC GND
21 GND NC GND NC NC NC GND
20 GND NC GND NC NC NC GND
19 GND GND GND NC NC NC GND
18 GND NC NC NC NC NC GND
17 GND NC NC NC NC NC GND
16 GND 4PE_CLK- 2_PE_CLK+ NC GND +5V GND
15 GND 4PE_CLK+ 2_PE_CLK- NC NC NC GND
14 GND 3PE_CLK+ 1_PE_CLK+ 4_PE_CLKE# DDC_DAT +5V GND
13 GND 3PE_CLK- 1_PE_CLK- 3_PE_CLKE# VGA_HSY DDC_CLK GND
12 GND 4PE_RX00+ 1_PE_CLKE# 2_PE_CLKE# VGA_VSY 2_SATA_RX+ GND
11 GND 4PE_RX00- 4PE_TX00+ COM4_TX 2_SATA_TX+ 2_SATA_RX- GND
10 GND 3PE_RX00+ 4PE_TX00- COM4_RX 2_SATA_TX- 3_SATA_RX+ GND
9 GND 3PE_RX00- 3PE_TX00+ 0_USB+ 3_SATA_TX+ 3_SATA_RX- GND
8 GND 2PE_RX00+ 3PE_TX00- 0_USB- 3_SATA_TX- 4_SATA_RX+ GND
7 GND 2PE_RX00- 2PE_TX00+ 1_USB+ 4_SATA_TX+ 4_SATA_RX- GND
6 GND 1PE_RX00+ 2PE_TX00- 1_USB- 4_SATA_TX- RGB_RED GND
5 GND 1PE_RX00- 1PE_TX00+ 10_USB+ RS232_COM5_SEL-L RGB_GREEN GND
4 GND NC 1PE_TX00- 10_USB- USB1_10_OC RGB_BLUE GND
3 GND NC GND NC NC NC GND
2 GND NC NC NC NC NC GND
1 GND NC GND NC NC NC GND

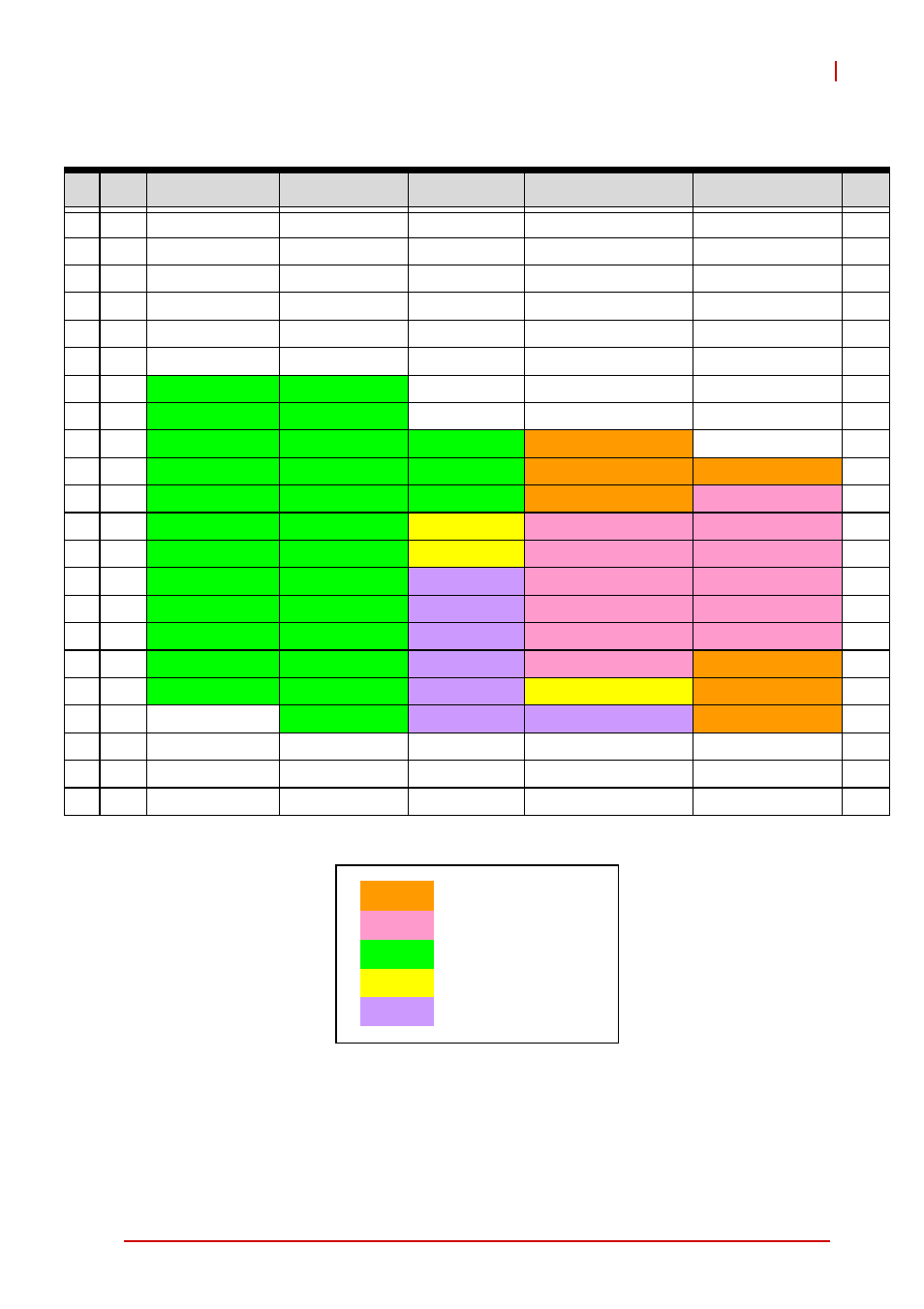

VGA
Serial ATA
PCI-Express
Serial port
USB port
