6.3.4 SATA

Configuration

You can use this screen to specify options for the SATA configuration settings. Use
the up and down keys to select an item. Use <+> and <-> keys to change
the value of the selected option. The settings are described in the following pages.

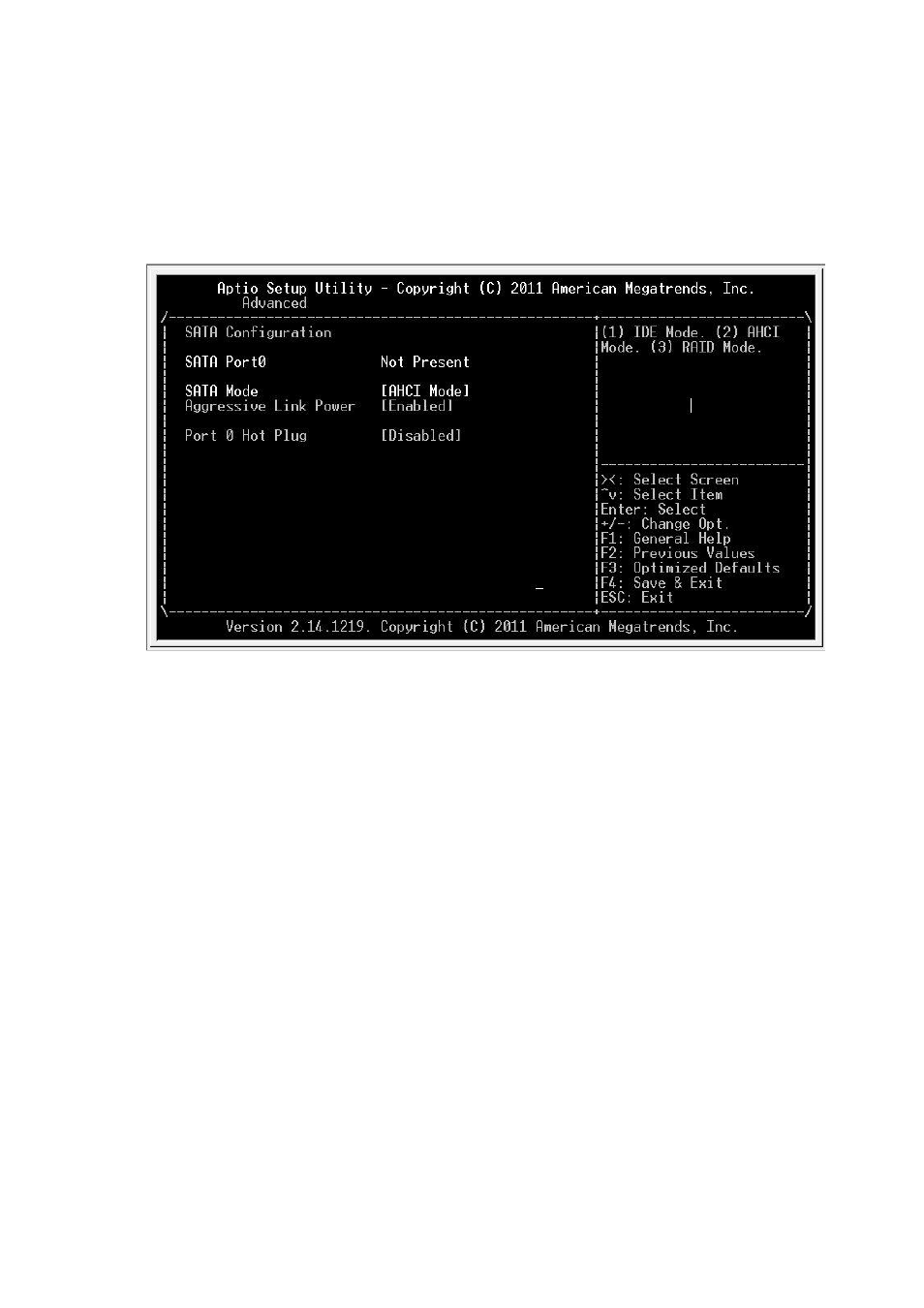

The screen is shown as below.

SATA Mode

This option is designed for configuring SATA mode. It can be Disabled, IDE Mode
and AHCI Mode.

Aggressive Link Power

It allows enabling or disabling Aggressive Link Power for SATA.

Port 0 Hot Plug

When SATA Mode is configured to AHCI Mode, SATA drive is able to be hot plugged.
This option allows setting the hot plug function of SATA drive.
