2.3 Board Layout

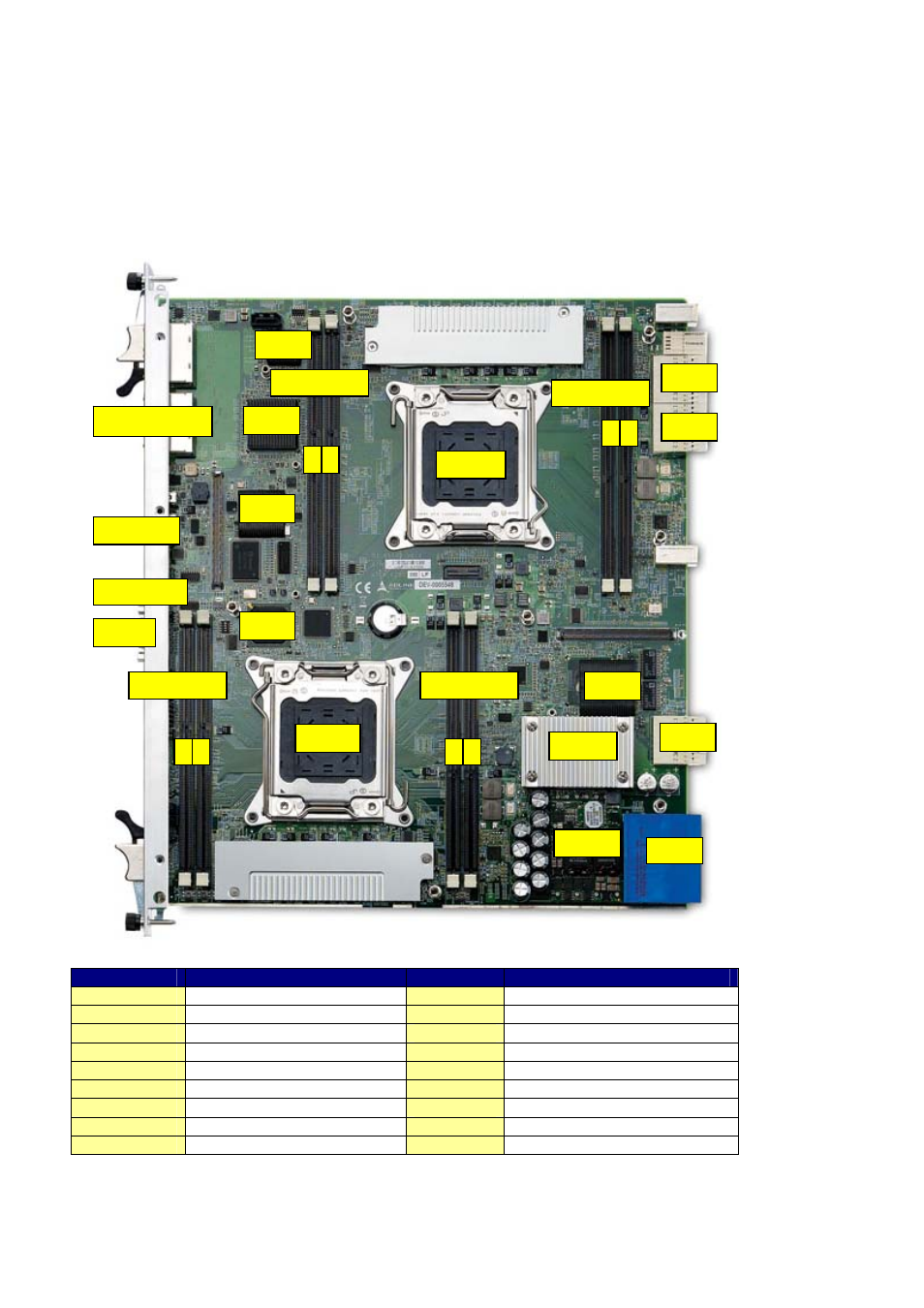

2.3.1 aTCA-6250 Board Layout
Location Description Location Description
CN2/3 USB ports J1 Base/Fabric Interface
CN4/5/7/8 GbE ports J3/4 Zone 3 to RTM
CN9 Zone 1 Connector U1 Intel C604 PCH
CN10/,14 Serial ports (USB Mini-B) U24 Intel I350 AM4 NIC
CN12 VGA connector (DB-15) U26 Intel 82576EB
CPU1 CPU1 Socket UX4 Silicon Motion SM750
CPU2 CPU2 Socket PSU1 400W -48V DC/DC module
DIMM_BA/CD DDR3-1600 DIMM A-D PSU2 400W Hotswap Power Module
DIMM_FE/HG DDR3-1600 DIMM E-H
CPU1
CPU2
J3
J1
CN5/4/8/7
CN14/10
U24
U1
UX4
DIMM_HG
CN2/3
J4
CN9
PSU1
CN12
G H
DIMM_CD
D C
U26
DIMM_FE
DIMM_BA
U14
PSU2
A B
E F
