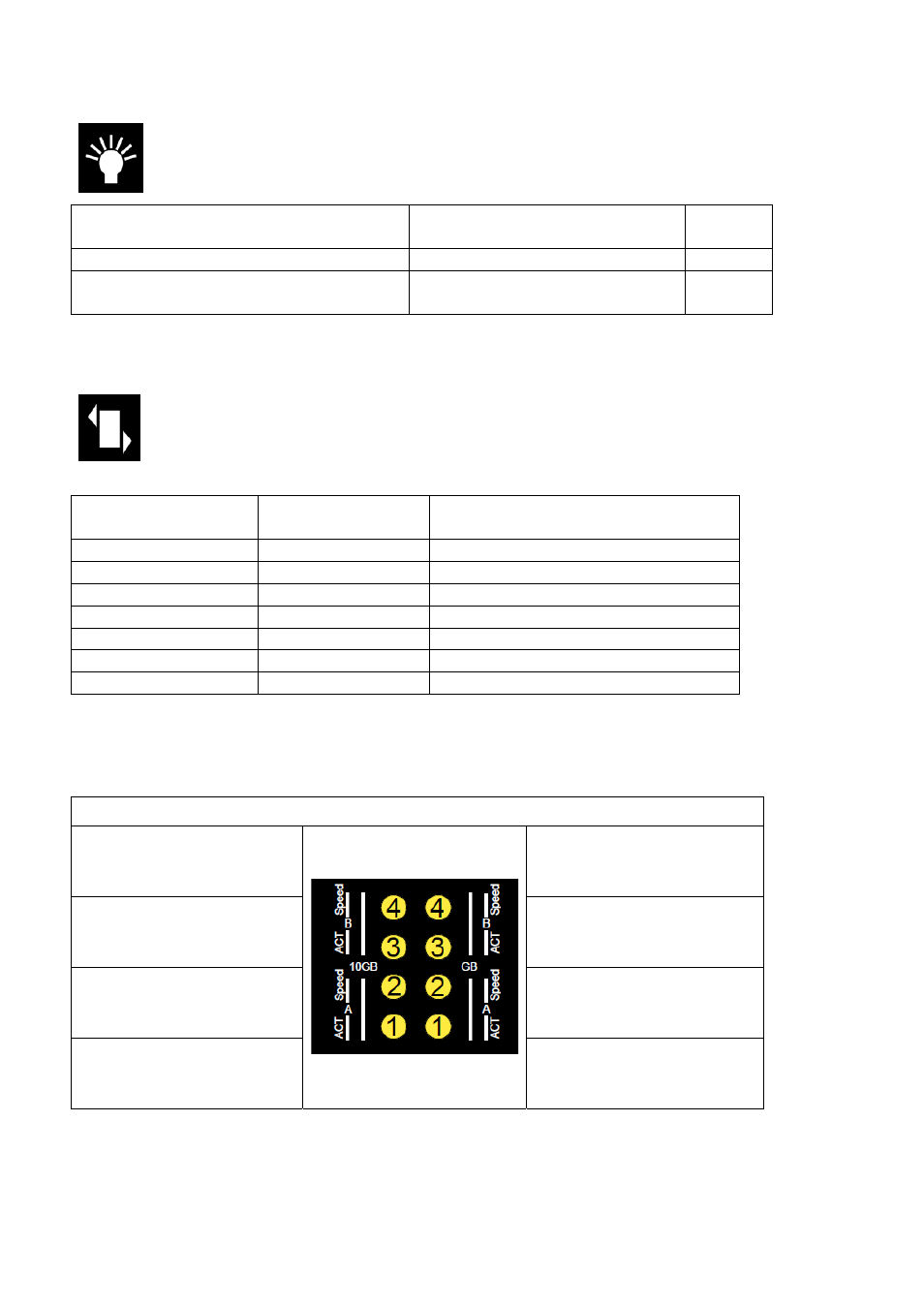

2.3.3.4 IPMC Chassis Identify Command LED
IPMC Chassis Identify Command
(Amber) State Remark
Off Default Off
Blinking Chassis Identify Command
Active
2.3.3.5 Hot-swap LED
Hot-swap LED
(Blue)
FRU State
number
FRU State Name
Off M0 FRU not installed
On M1 FRU inactive
Long blink M2 FRU activation request
Off M3 FRU activation in process
Off M4 FRU active
Short blink M5 FRU deactivation request
Short blink M6 FRU deactivation in process
2.3.3.6 Base and Fabric Channel LED
BASE Channel and Fabric Channel LED
Fabric 2 Speed and Link
1Gbps – OFF
10Gbps – ON (Amber) BCH2 Speed and Link
100 Mbps: Green
1Gbps: Amber
Fabric 2 ACT (Amber)
Blink when accessing
Ethernet I/O BCH2 ACT (Amber)
Blink when accessing
Ethernet I/O
Fabric 1 Speed and Link
1Gbps - OFF
10Gbps – ON (Amber) BCH1 Speed and Link
100 Mbps: Green
1Gbps: Amber
Fabric 1 ACT (Amber)
Blink when accessing
Ethernet I/O BCH1 ACT (Amber)
Blink when accessing
Ethernet I/O
