Step 2

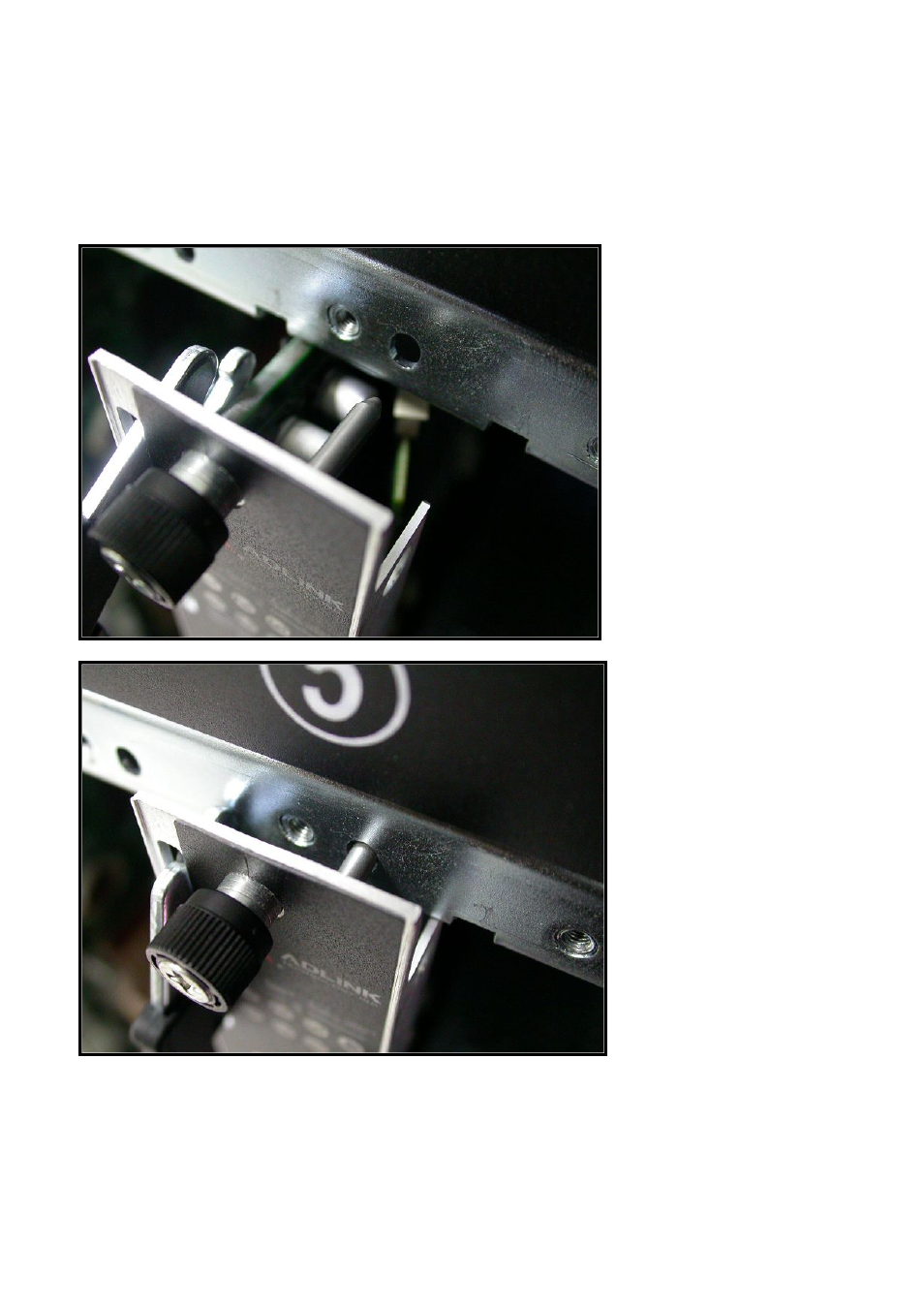

Check if the catch hooks and alignment pins at both ends of the module are correctly
inserted into the proper openings. Push inwards on the handles until the blade is firmly
seated in the chassis. (Do not force the handles if there is any abnormal resistance or it
could damage the connectors and/or backplane.)
