Operations 27
PXIe-9848

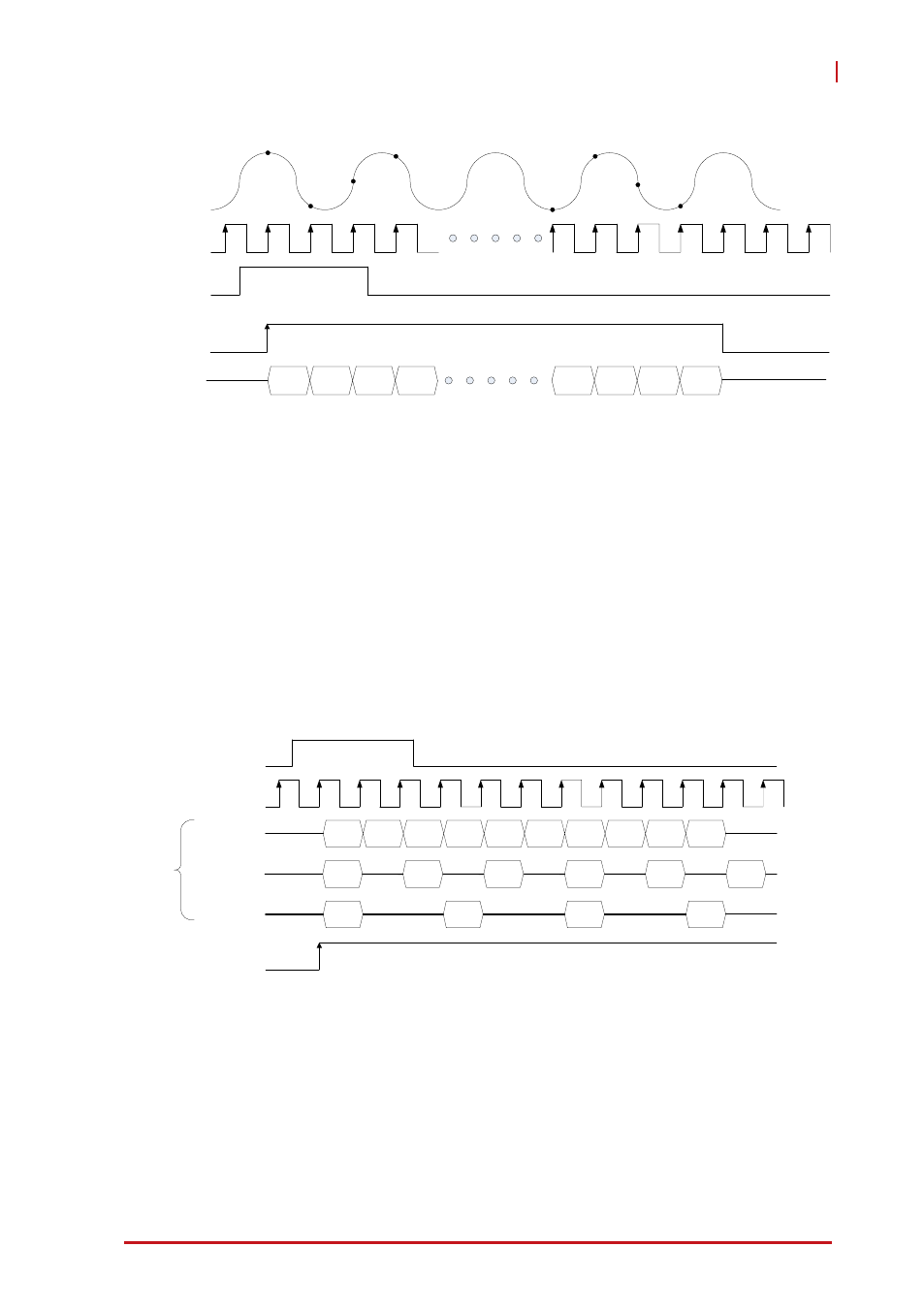

Figure 3-13: Basic Digitizer Acquisition Timing
To achieve sampling rates other than 100MS/s, a number for scan
interval counter needs only be specified. For example, if the scan
interval counter is set as 2, the equivalent sampling rate is
100MS/s / 2 = 50MS/s. If as 3, the equivalent sampling rate is
100MS/s / 3 = 33.33MS/s, and vice versa. The scan interval coun-
ter is 16 bits in width, therefore the lowest sampling rate is
1.025KS/s (100MS/s / 65535).
Figure 3-14: Varying Sampling Rates by Adjusting Scan Interval Counter
TIMEBASE
DATA D1 D253 D254
Acquisition
In Progress
Trigger
Acquisition starts right after this clock edge
D2 D3 D4 D255 D256
Analog
signal
Trigger mode = post-trigger, DataCnt = 256, ScanIntrv = 1
TIMEBASE
DATA
D1
Acquisition
In Progress
Trigger
Acquisition is initiated following this clock edge
D1
ScanIntrv = 1
D2 D3 D4 D5 D6 D7 D8 D9 D10
D2 D3 D4 D5 D6
D1 D2 D3 D4
ScanIntrv = 2
ScanIntrv = 3
