Introduction

3

PXIe-9848

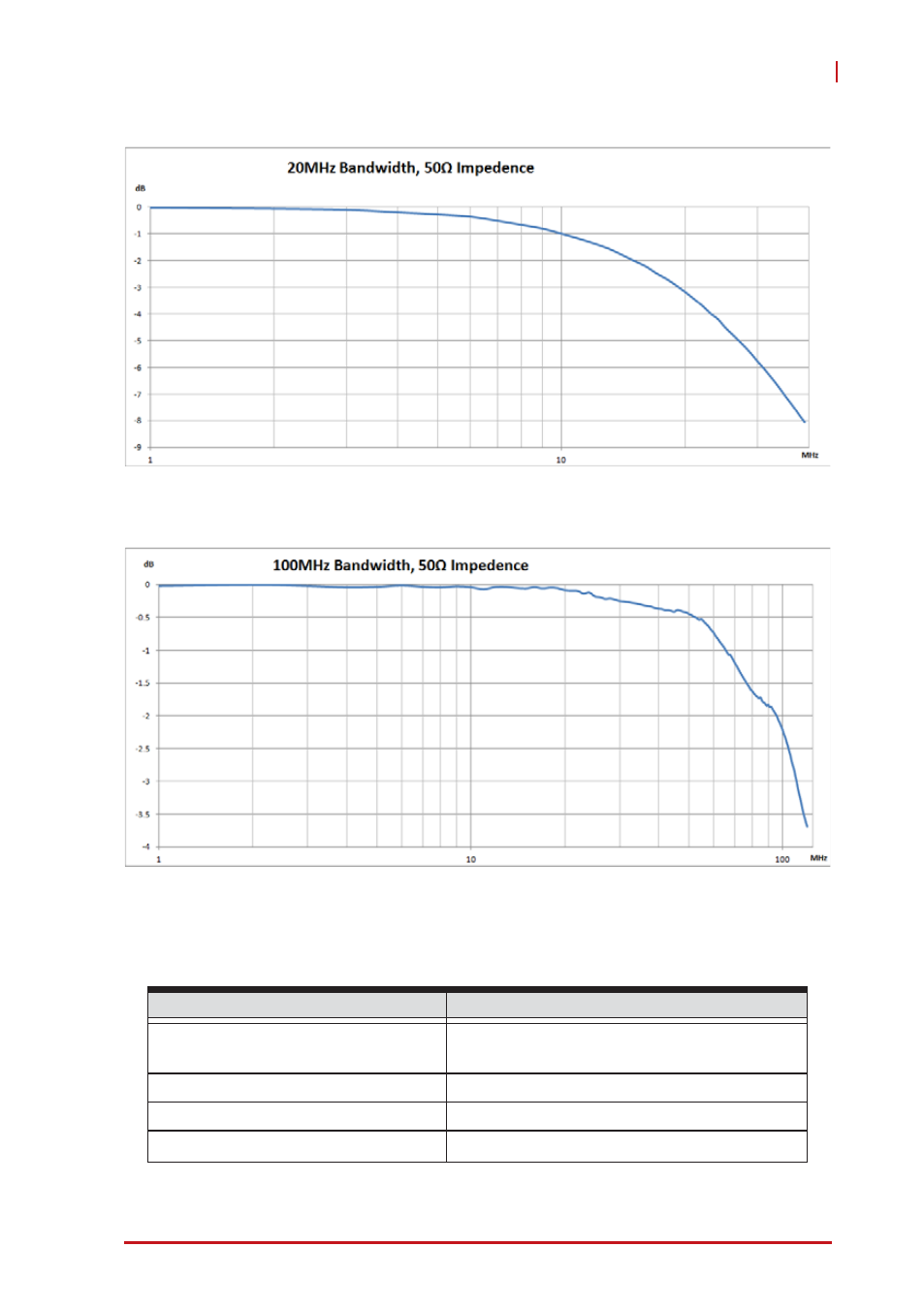

Figure 1-1: Analog Input Channel Bandwidth, ±2 V Input Range 20MHz

Figure 1-2: Analog Input Channel Bandwidth, ±2 V Input Range 100MHz

1.3.2

Timebase

Table 1-3: Timebase

Sample clock source

Internal: onboard clock (oscillator)

Sample clock source

Internal: onboard clock (oscillator)
External: PXI_CLK10, PXIe_CLK100

Timebase frequency

100 MHz

Sampling rate

100 MS/s ~ 1025.9 S/s

Internal Timebase Accuracy

< s25 ppm
