AR-V5430FL Installation Guide

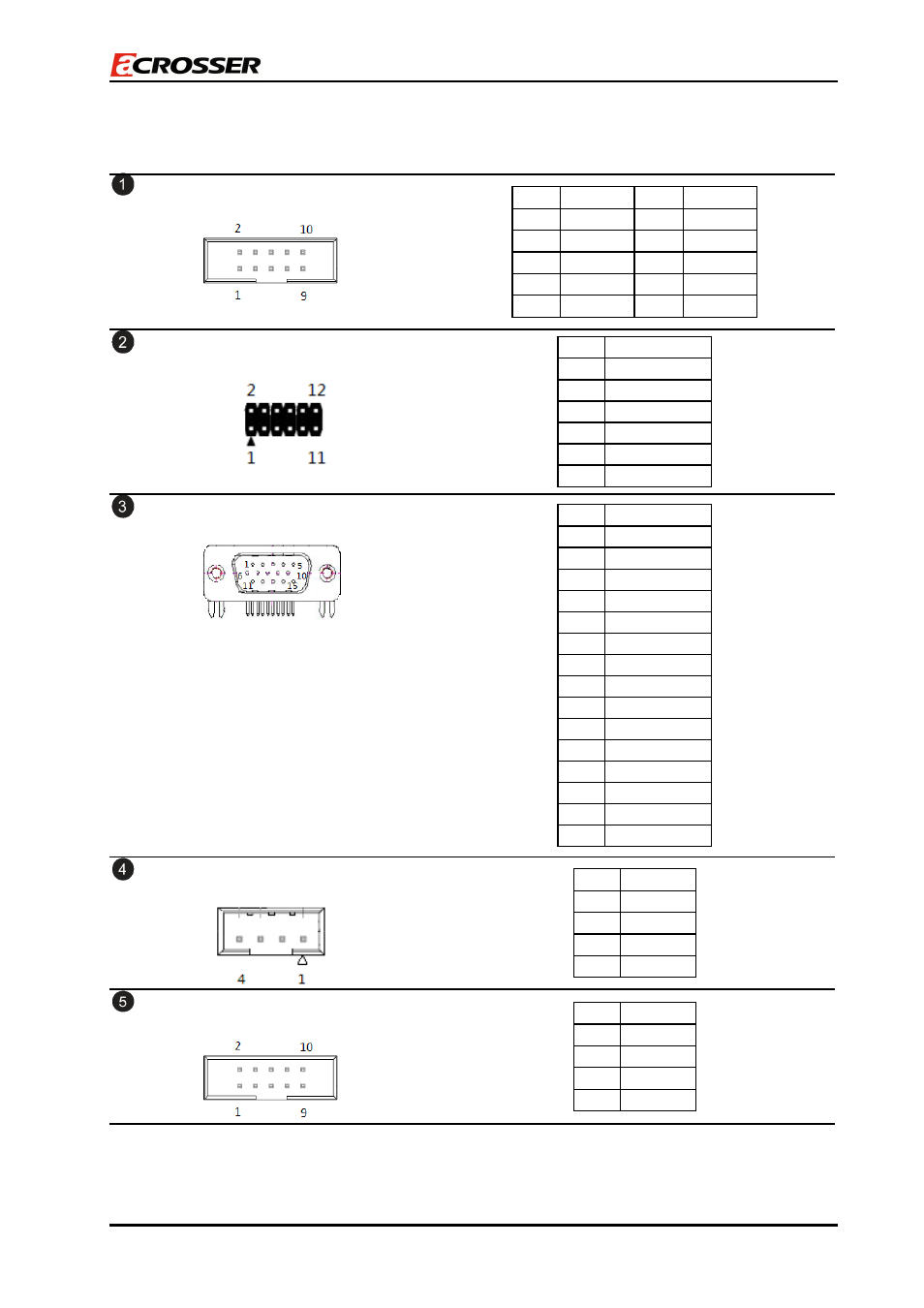

Connectors and Jumper Setting
36/39
GPIO1
TO AR-B5430 GPIO
PIN DEFINE PIN DEFINE
1 GPI0 2 +5V
3 GPI1 4 GPI7
5 GPI2 6 GPI6
7 GPI3 8 GPI5
9 GND 10 GPI4
J1
JUMPER SELECT
PIN DEFINE
1-2 NC (DEFAULT)
3-4 NO
5-6 GND (DEFAULT)
7-8 +5V
9-10 +12V
11-12 +EXT
CN2
DB15 MALE OUTPUT SIGNALS
PIN DEFINE
1 GPO1
2 GPO2
3 GPO3
4 GPO7
5 +5V
6 GND
7 GND
8 GND
9 +EXT
10 +EXT
11 GPO4
12 GPO0
13 GPO5
14 GPO6
15 +12V
CN3
POWER FORM AR-PW0932V
PIN DEFINE
1 +12V
2 GND
3 GND
4 +5V
CN4
POWER TO GPRS/GSM (AR-B2011)
PIN DEFINE
1 +12V
2 GND
3 GND
4 +5V
