Page 23
AR-V5430FL Installation Guide

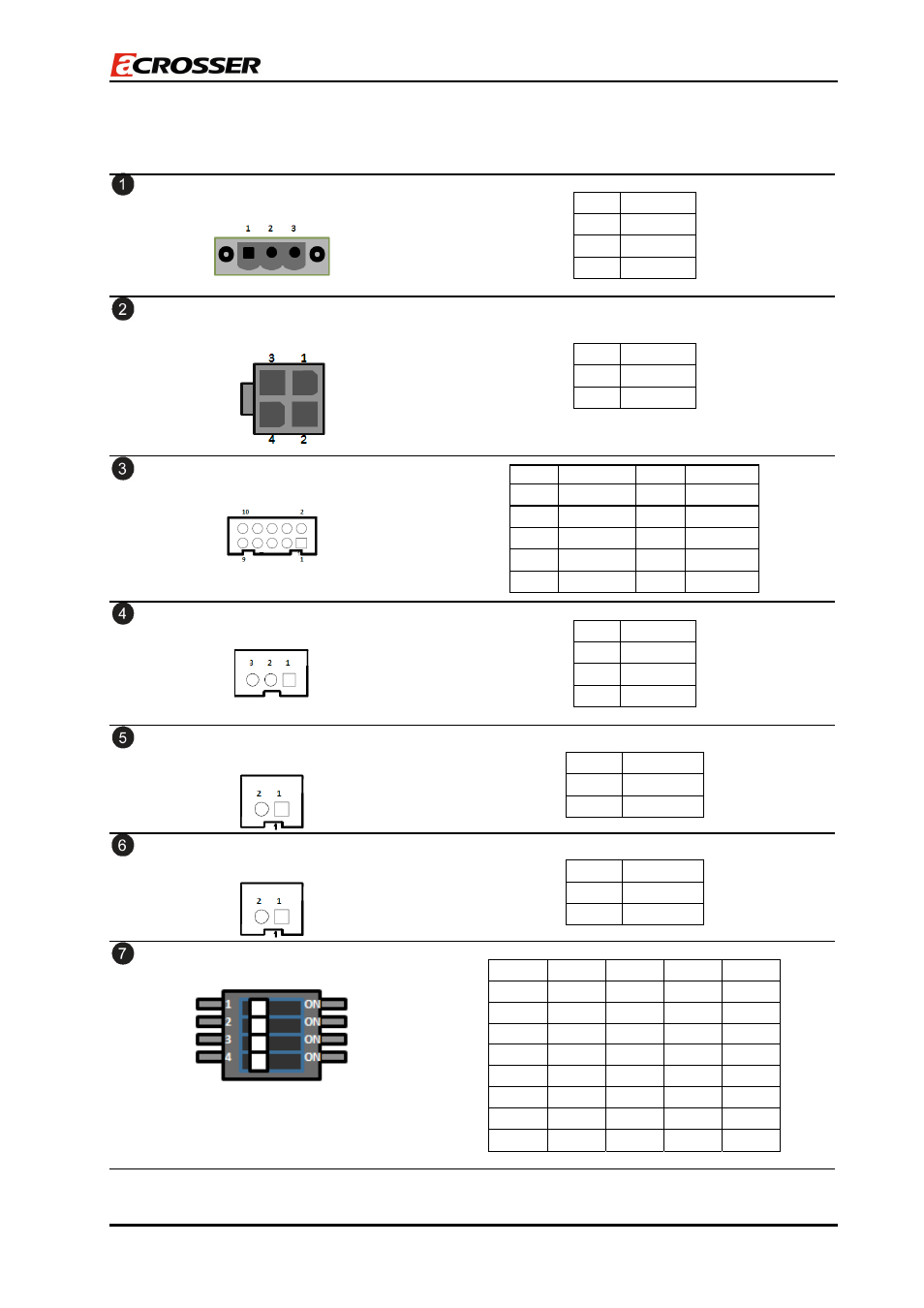

Connectors and Jumper Setting
23/39
PWR1
DC Power Input
PIN
SIGNAL
1 DC_IN
2 Key
switch
3 GND
FUSE1
Connect to fuse default 15A
PIN
SIGNAL
1,2
Fuse Out
3,4
Fuse In
J4
Front Panel connector
For detailed functions, please refer to the User
Manual.
PIN
SIGNAL PIN SIGNAL
1
PWRBTN_IN
2
GND
3
LOC_SW
4
GND
5
KEY_SW
6
GND
7
ENG_STS
8
GND
9
STS_LED
10
GND
PWR3
Suspend Power for ATX function
PIN
SIGNAL
1 GND
2 PS_ON
3 5V_SUS
CN1
Power button output
PIN SIGNAL
1
PWBTN out
2
GND
CN2
Reserve Pin
PIN SIGNAL
1
PWBTN out
2
GND
SW1
DIP switch for mode select.
Mode
1
2
3
4
0
ON
ON
ON
ON
1
ON
ON
ON
OFF
2
ON
ON
OFF
ON
3
ON
ON
OFF
OFF
4
ON
OFF
ON
ON
5
ON
OFF
ON
OFF
6
ON
OFF
OFF
ON
7
ON
OFF
OFF
OFF
