LCP-1250RJ3SR-S
DELTA ELECTRONICS, INC.
3 Oct. 17. 2007 Rev. 1.02
www.deltaww.com
Electrical Characteristics
(T
A
=0 ºC to 70 ºC, V
CC
=3.135V to 3.465V)
Parameter Symbol Min. Typ. Max. Unit Note
Supply Current I
CC
350 400 mA
Transmitter
Transmitter Differential Input Voltage V
D,TX
0.5 2.4 V 1
Differential Input Impedance Z
TX
80 100 120 Ohm
Transmitter Disable Input-High V
DISH
2.0 V
CC
+0.3 V
Transmitter Disable Input-Low V
DISL
0 0.8 V
Receiver
Data Output Differential Voltage V
D,RX
0.35 2 V 3
Differential Output Impedance Z
RX
80 100 120 Ohm
Data Output Rise/Fall Time t
r,Rx
/ t
f,Rx
180 ps 4
Notes:
1. Internally AC coupled and terminated to 100-Ohm differential load.
2. Pull up to V
CC
with a 4.7K – 10K Ohm resistor on host Board
3. Internally AC coupled, but requires a 100-Ohm differential termination at MAC side.
4. These are unfiltered 20%~80% values

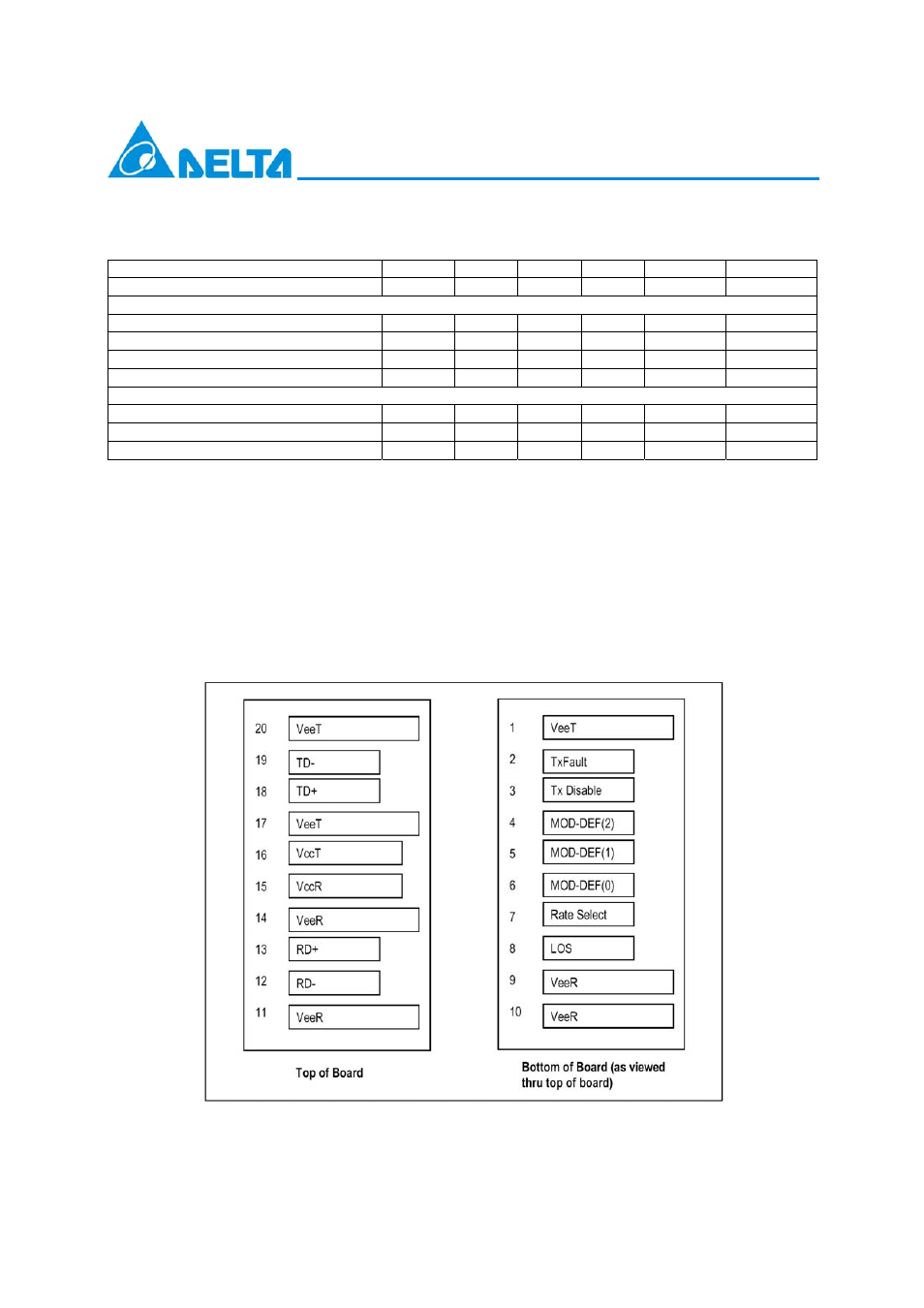

SFP Transceiver Electrical Pad Layout
