DELTA ELECTRONICS, INC.

1 2008/3/18

Rev. 0A

www.deltaww.com

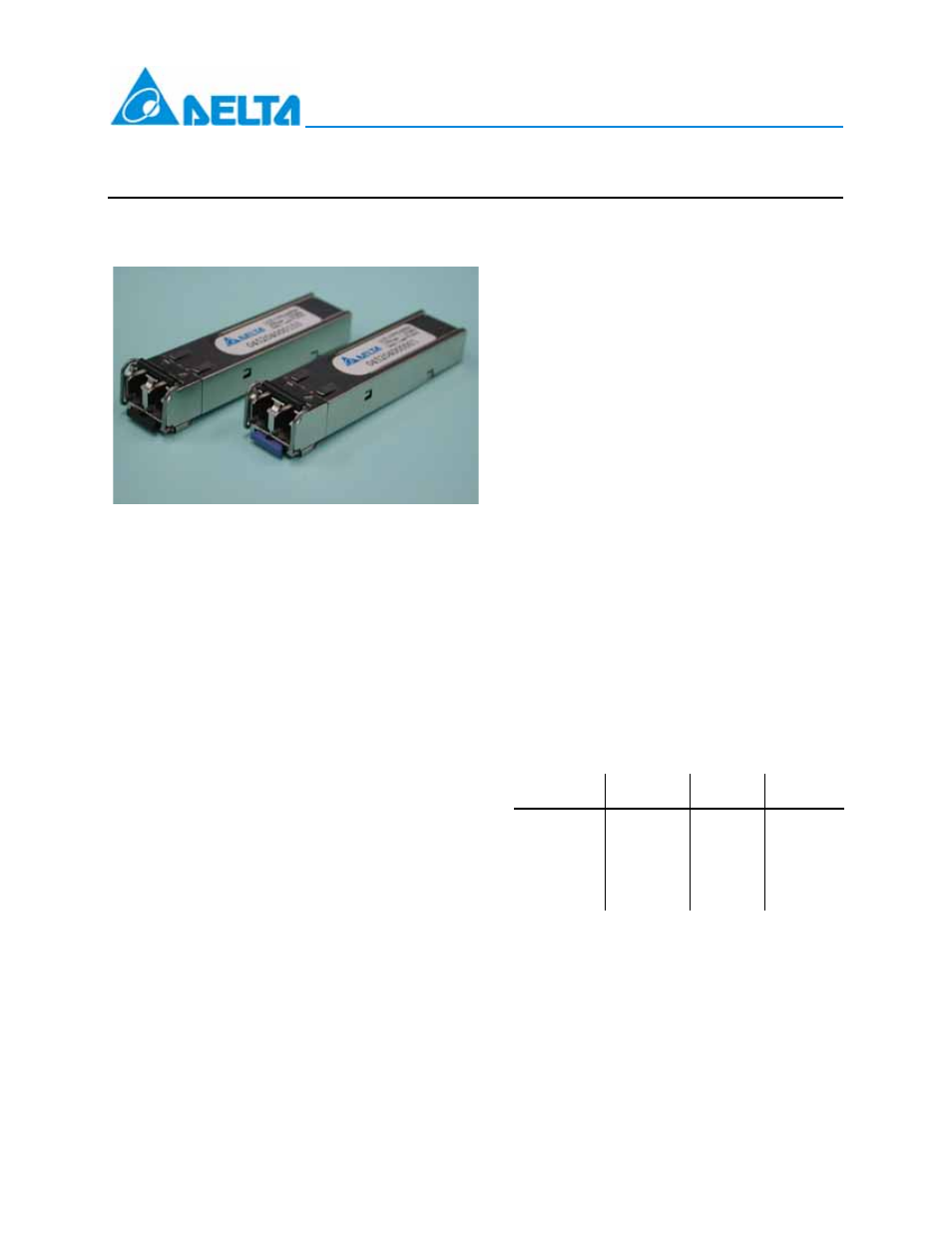

RoHS Compliant 4.25Gb/s Short Wavelength Tri-Rate SFP
Transceiver for Fiber Channel

FEATURES

Compliant with SFP transceiver SFF-8472

MSA specification and Fiber Channel FC-PI-2

850nm VCSEL laser

Built-in digital diagnostic monitoring function

Compliant with 4.25/2.125/1.0625 Gb/s Fiber

Channel (400/200/100-M5/M5E/M6-SN-I)

Compliant with Industry Standard RFT

Electrical Connector and Cage

Duplex LC connector

Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

Description

The LCP-4250A4CDR series are hot pluggable
3.3V Small-Form-Factor transceiver modules
designed expressly for high-speed
communication applications that require rates of
up to 4.25Gb/s. It is compliant with the Fiber
Channel standards FC-PI-2, as well as MSA
SFF-8472.

The LCP-4250A4CDR transceivers provide with
the LC receptacle that is compatible with the
industry standard LC

TM

connector. The

transceiver is also compatible with industry
standard RFT connector and cage.

The post-amplifier of the LCP-4250A4CDR also
includes a LOS (Loss Of Signal) circuit that
provides a TTL logic-high output when an
unusable optical signal level is detected.

The LCP-4250A4CDR transceiver is a Class 1
eye safety product. The optical power levels,
under normal operation, are at eye safe level.

Applications

Tri-Rate 1.063/2.125/4.25 Gb/s Fiber Channel

Up to 400m link over OM3 MMF for 3.072Gbps
CPRI application

Transmission Distances

Data Rate

OM3 MMF OM2 MMF OM1 MMF

4.25Gb/s 380m 150m 70m

2.125Gb/s 500m 300m 150m

1.0625Gb/s

860m 550m 300m
