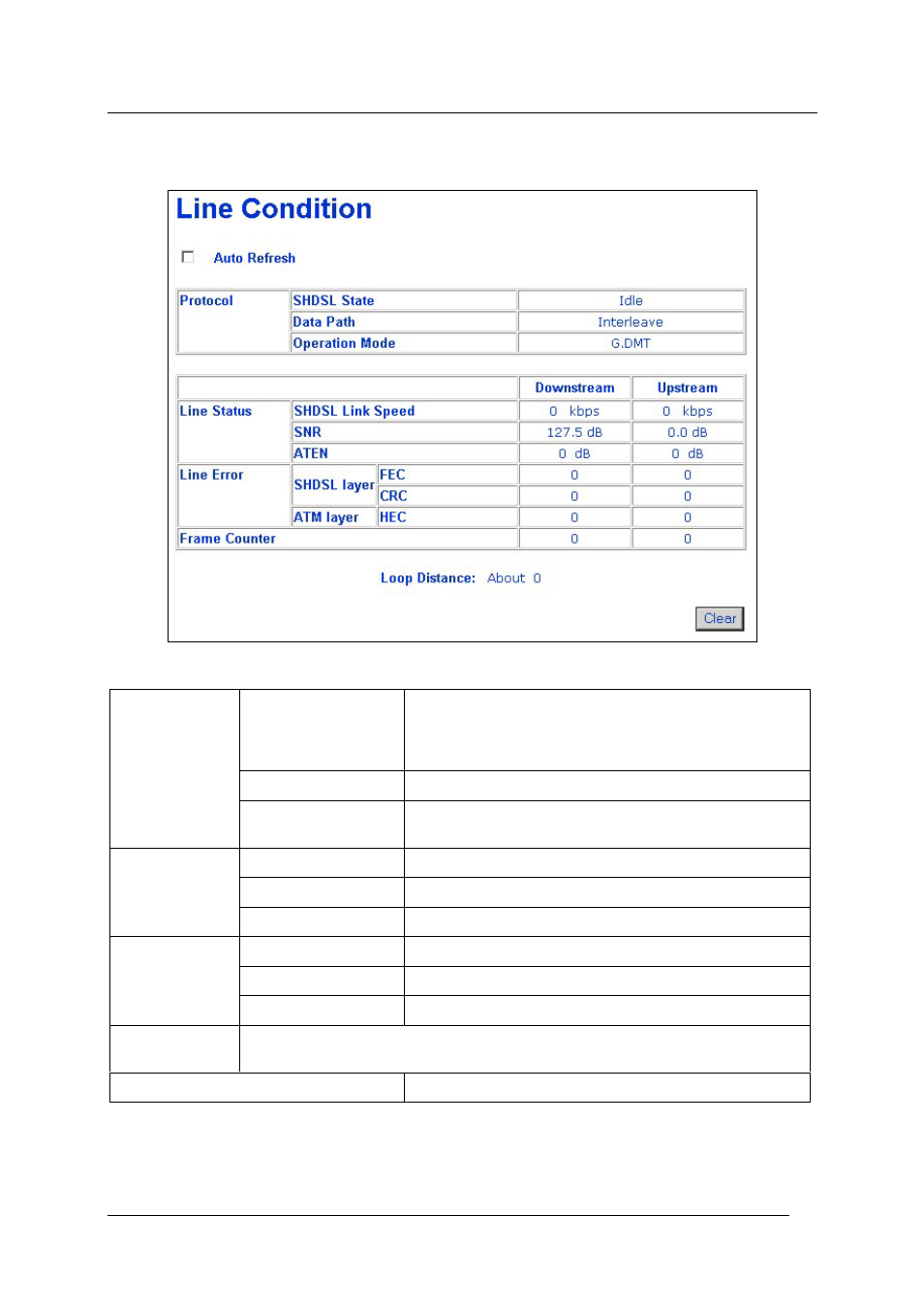

Line Condition
Use the Line Condition summary window for troubleshooting problems with the SHDSL connection.
Line Condition
Use the Clear button to start a fresh session. Check the Auto-Refresh box to automatically refresh the screen.
SHDSL State
Disconnected - SHDSL connection failure
Idle - valid connection currently not active
Active - valid connection that currently transmitting packets
Data Path Current data path type Fast or Interleaved
Protocol
Operation Mode
Modulation technique used for SHDSL connection,
G.DMT or G.lite
SHDSL Link Speed Downstream/Upstream data transfer rate in Kbps
SNR Downstream/Upstream Signal-to-Noise Ratio in dB Link Status
ATTEN Downstream/Upstream attenuation of signal in dB
FEC (SHDSL) Downstream/Upstream FEC Forward Error Correction
CRC (SHDSL) Downstream/Upstream CRC Cyclic Redundancy Control Line Error
HEC (ATM) Downstream/Upstream HEC Header Error Check
Frame Counter Number of data packets received and transmitted
Loop Distance Loop in K ft.
