FEATURES
* Advanced integrated circuit provides superb fidelity and trouble free operation.
* Selective telephone or hands free function at the receiving station.
* Multi-channel system permits up to 12 separate conversations.
* A privacy switch is provided to prevent monitoring.
* A line privacy switch provides station lock out, preventing interruption by tone or voice.
* Separate privacy tone and volume controls.
* Conference call may include 4 stations.
* P button doubles volume at a receiving station to penetrate noise.
* Designed for desk or wall use.
OPTIONS
* Two call telephone type stations may be connected.
* Multi-channel paging either with or without talkback using accessories.
EQUIPMENT AVAILABLE FOR USE WITH YOUR KAH SPEAKER-PHONE
, 4^ KAH-12: 12 call speaker phone master
station.
■- KAH-24: 24 call speaker phone master
N.- > station.
KAH-2: 2 call telephone station.
PA-1: Block paging adaptor. Connects all
KAH phones to a paging system. May be
used in multiple for zone/block paging.
PA-2: Block paging with talkback.
Connects all KAH phones to a paging system
with talkback from speakers. May be used
in multiple for zone/paging with talkback.
SP-3: Paging speaker. Complete and ready
to install including round flush mounting
frame.
PS-12C: CSA & UL LISTED Power supply
(available only in North America).
m
PS-12S: Power supply (not available in
North America).
INSTALLATION
Do not attempt to install your intercom
procedure. Aiphone’s warranty is void if system

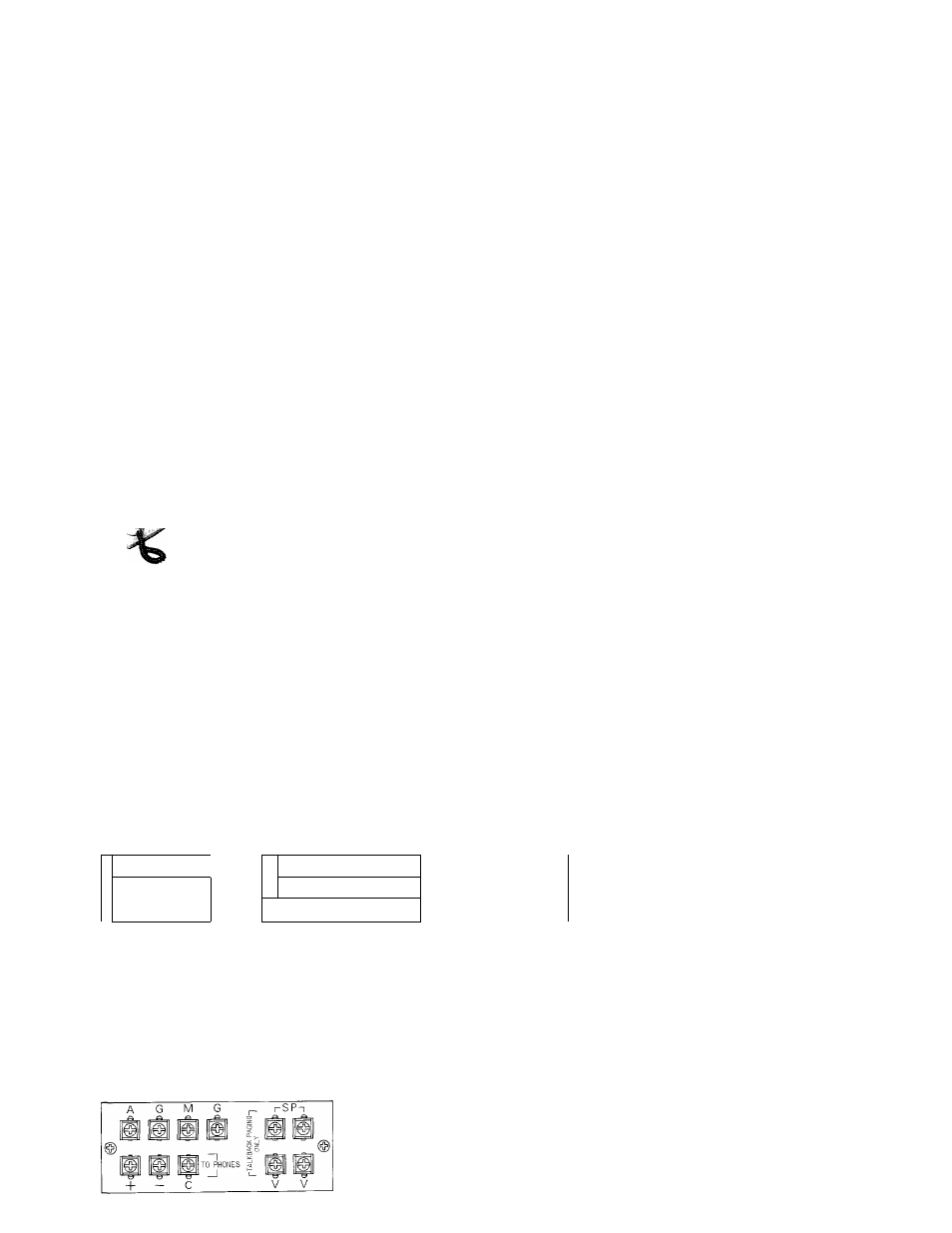

ACTUAL KAH TERMINAL LOCATIONS
KAH-12 KAH-24
system until you have read and thoroughly understood the installation
is installed in a manner other than described in this manual.
© - ®
y;2
C a T)—
" J
___ •
ACTUAL PA-1 TERMINAL LOCATIONS
" a g m ^
®, ©
+ - c
ACTUAL PA-2 TERMINAL LOCATIONS
®. ©
®, ©
d© Csp>
"" ©
for connecting relative stations.
for connecting relative stations.
for receiving a call.
for power supply.
to be used if wire distance exceeds
200 m (600’) total or more than 13
stations are used in a system.
for connecting AUX input of paging amplifier,
for connecting to background music source,
for power supply.
for connecting to a selector terminal of KAH stations.
for connecting AUX input of paging amplifier,
for connecting to background music source,
for connecting to paging speakers,
for power supply.
for connecting to a selector terminal of KAH stations,
for connecting to paging amplifier out-put.
