WIRING
Cable requirements
Use a parallel conductor cable. Coaxial cable should
not be used.
When existing chime wires are used, it is possible that the
wires may contain high voltage current. Locate and remove
the bell transformer before actually connecting
MJ-DS.

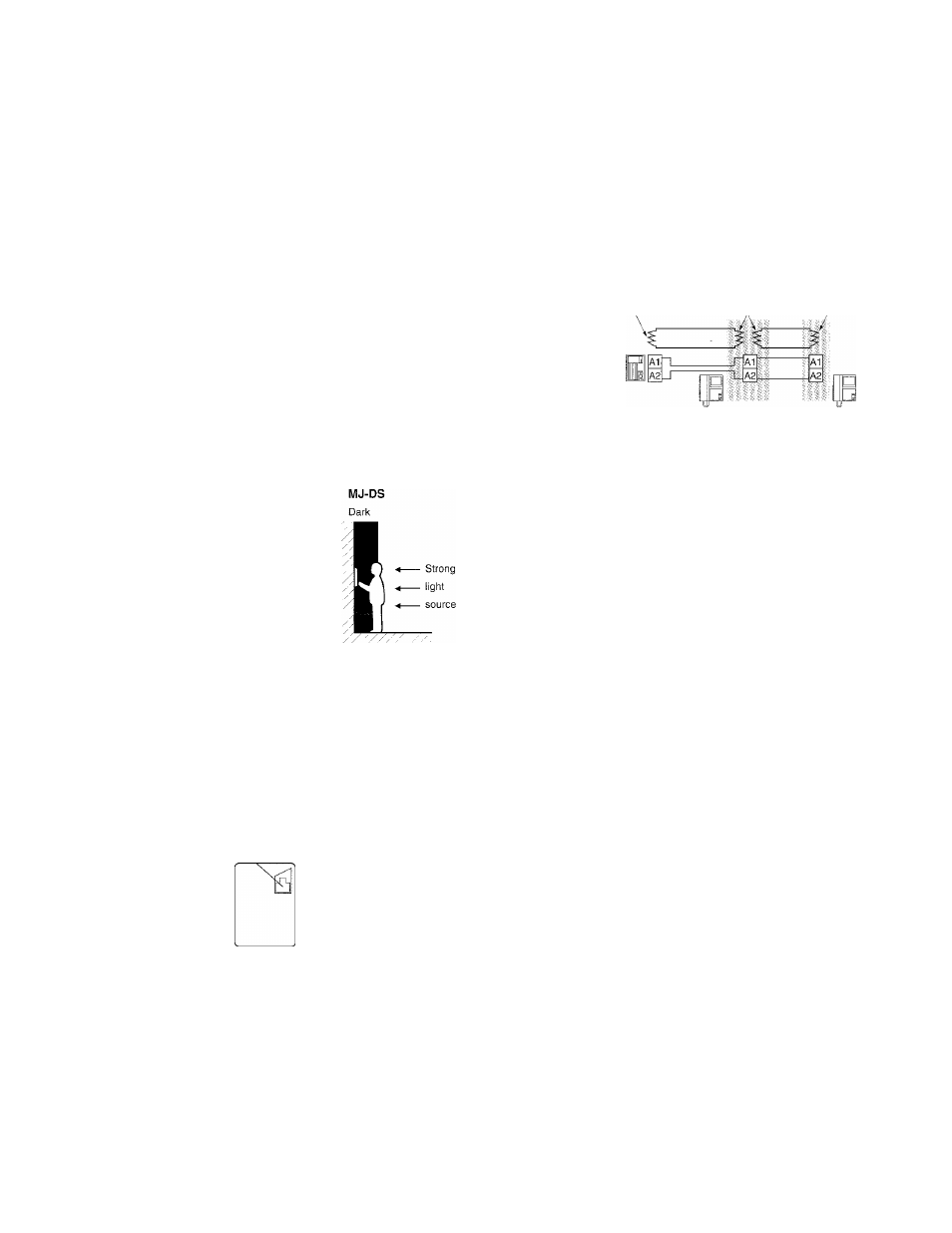

Extra pair(s) in the installed cable can affect image quality,
and must be terminated with a 120 ohm resistor at each
end on both MJ-DS and MJ-1AD.
Parallel cable Coaxial cable
YES
120 ohm 120 ohm
NO
120 ohm
Installation location
MJ-DS
MJ-DS employs CCD
camera and the
performance can be
affected by bright
direct light, such as
strong sunlight, gate
light, or street or porch
light which comes
directly into the
camera lens.
MJ-1AD
Mount the video-monitor so
that the center of monitor
screen comes to the eye
level of the user.
MJ-1AD
When camera height is too low
MJ-DS is equipped with a camera-angle
adjuster on back of the unit. Pull down this
lever to adjust the camera angle up by 14°.
Lever
MJ-DS
Pull down to
turn up the
camera.
When installing a second MJ-1 AD
Extend 2 wires (and 2 for door strike) from
MJ-1 AD to 2nd monitor, which install within
150m, 500’ max. allowed from MJ-DS.
YES NO
P
Ü
150 m
500’
