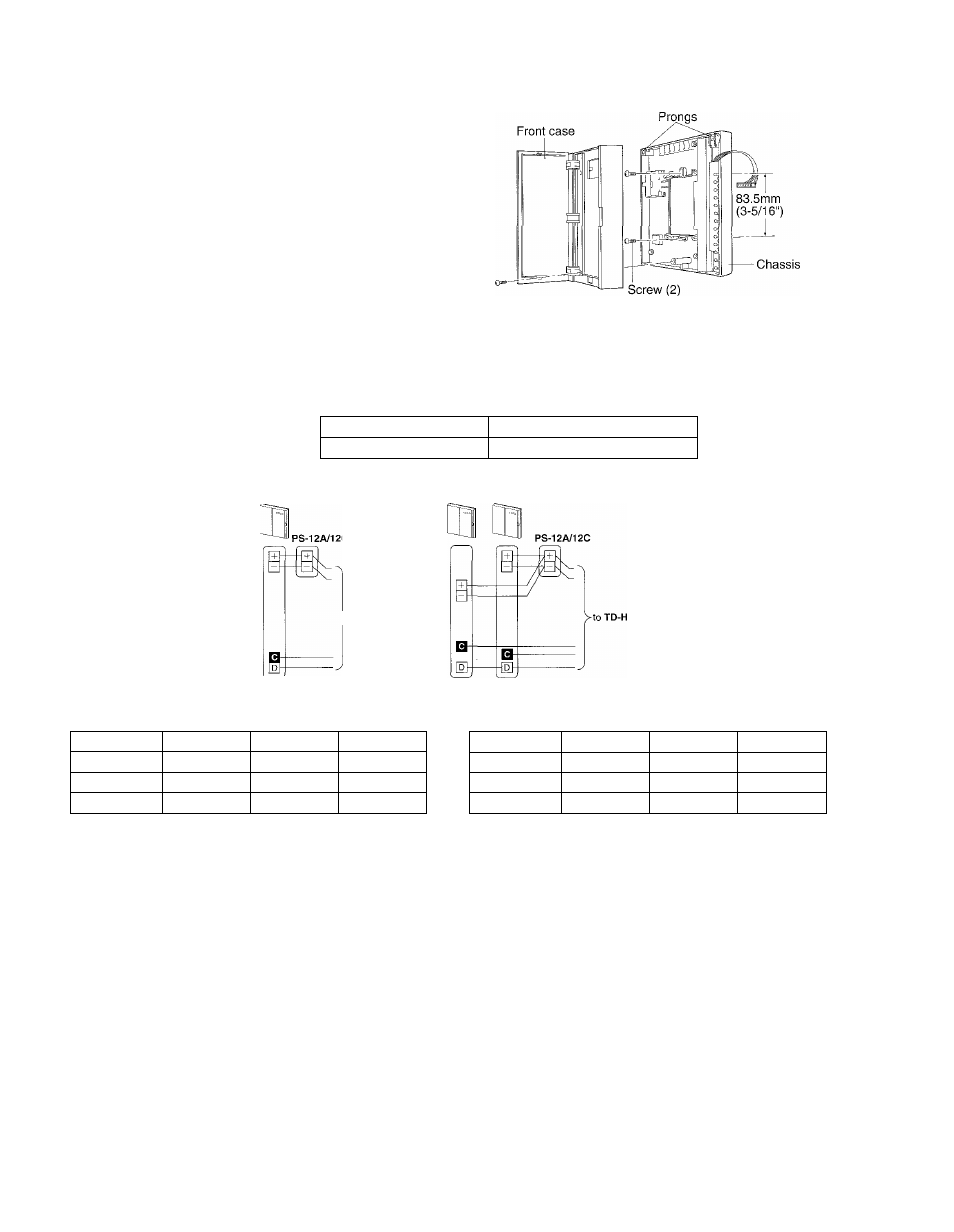

MOUNTING
DE-UR chassis, after separated, mounts with
83.5mm, 3-5/16” guide.
1. Opening the cover, loosen the bottom screw.
2. Lift front case off the prongs of chassis, and
disconnect DE-UR.
3. Mount the chassis to wall or board at 2 points.
4. Make wire terminations for each door station,
TD-H station, and PS-12A(12C) power supply.
5. Reconnect and mount DE-UR front case to
chassis.
I SPECIFICATIONS
* Power source:
* Current consumption:
* Call tone: DC 12V, supplied by a power supply PS-12A (PS-12C) of TD-H (TD-Z) system.
120mA max.
Intermittent tremolo, 2-1/2-timed
Wiring: To audio lE/IF door 2 conductors (parallel)
To TD-H/B stations 4 conductors (D, C and +, -)
★ DE-UR must be fed 12V DC from PS-12A (PS-12C) or via near DE-UR. See page 2.
Wiring distance:
Vto TD-H
DE-UR DE-UR
From DE-UR to door station From DE-UR to PS-12A/12C
Diameter 0.65mm 0.8mm 1.0mm
Distance 150m 230m 360m
AWG 22AWG 20AWG 18AWG
Distance 500' 750' 1,200'
Diameter 0.65mm 0.8mm 1.0mm
Distance 10m 15m 20m
AWG 22AWG 20AWG 18AWG
Distance 30' 50' 65'
DE-UR EL, EL terminals capacity: DC 30V, 1A or AC 30V, 1 A.
Dimensions: (H x W x D) 160 x 150 x 45 (mm). 6-1/4"H x 6"W x 1-3/4"D
Weight: 320g (0.71 lbs.) approx.
-i*
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one
year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which
examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision
whether there is a defect in materials and/or workmanship; and whether or not the product is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation of
instructions furnished, nor extended to units which have been repaired or altered outside of the factory. This warranty does not cover
batteries or damage caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
•i*
•f*
Aiphone Co., Ltd., Nagoya, Japan
Aiphone Corporation, Bellevue, WA, USA
DE-UR-I(E) 0595E
