83435300 0595
©
® AIPHONE
TD Series
DOOR STATION ADAPTOR
Model:
DE-UR
INSTALLATION & OPERATION MANUAL

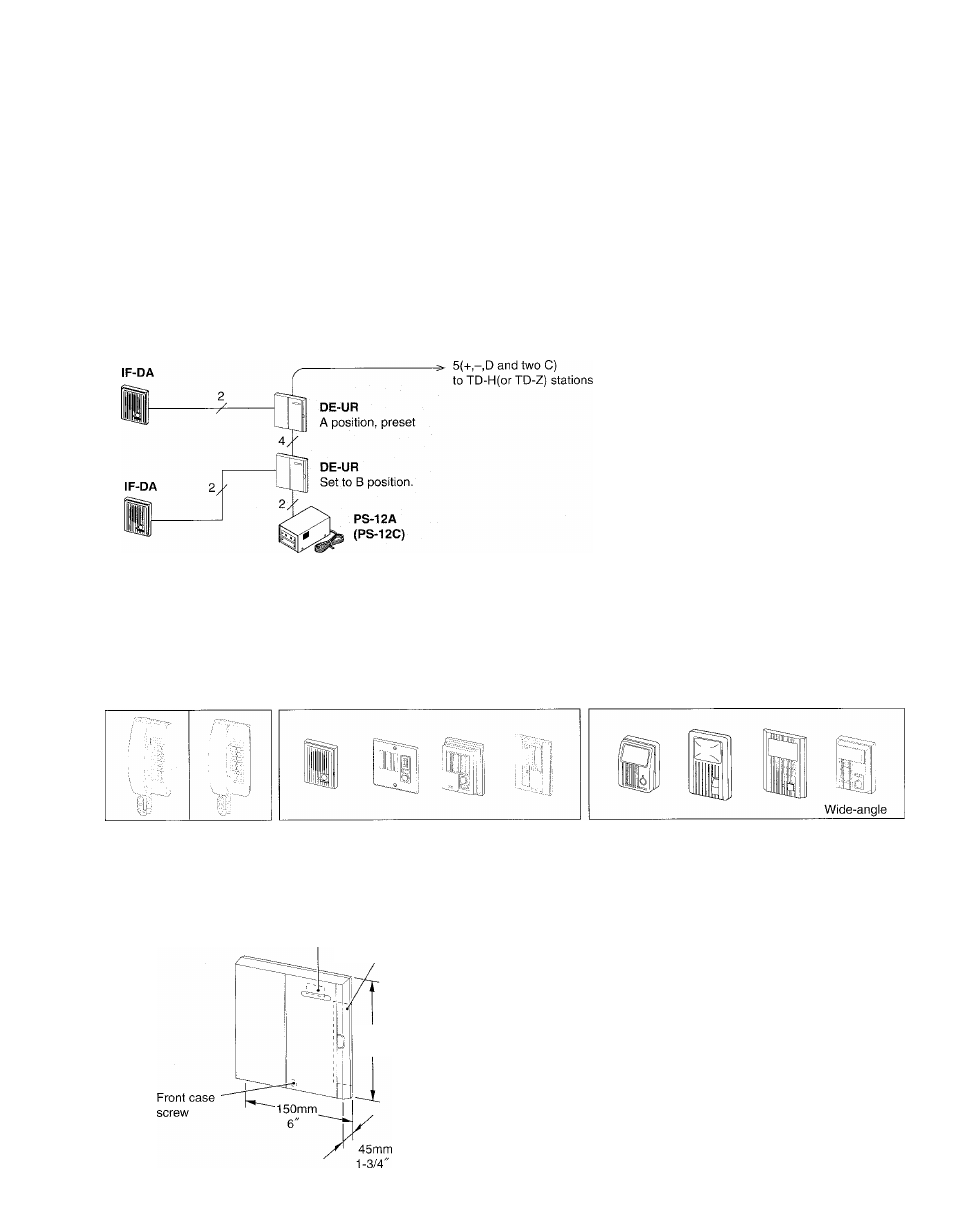

SYSTEM OUTLINE & COMPONENTS ----------------------------------------------------
DE-UR is an adaptor that can add a door station, audio or PanTilt video to TD Phone Selective Call Intercom.
Package contents
Door station adaptor (DE-UR)
Packet of screws
Installation & Operation Manual
★ TD-H or TD-Z system is
powered by a PS-12A (PS-
12C), which should be located
in the middle point of cable run.
Install a DE-UR(s) near the
power supply.
■ Components available
* Intercoms TD-H Series: TD-3H/B, TD-6H/B, TD-12H/B & TD-24H/B. (TD-H/A Series also)
TD-Z Series: TD-6Z/A & TD-12Z/A loop-wired. Audio door station only.
' Intercom
TD-6H/B TD-12Z/A
• Audio door stations
IF-DA lE-JA lE-DC lE-NC
Video door stations
MY-CA MY-DC MY-FA MY-DS
Others : lE-FY (not available In USA) Others : MY-DG, MY-EA
It can be a combination of MY-CA
(in MYW-CA enclosure) and IF-DA.
NAMES AND FEATURES
Call tone selector
Terminal block
160mm
6-1/4"
For TD-H to have 2 door stations, DE-UR employs a
switch (preset to A) to change slow intermittent tone to
faster intermittent tone.
■ Features
* Surface-mount with 83.5mm, 3-5/16" guide.
* Call tone modulating circuits, 2-1/2-sec. timed.
* Powered by using system's PS-12/V12C power supply.
* Includes door release control terminals.
