SYSTEM OUTLINE & COMPONENTS
MY-2CD is a master station for PanTilt Video Entry Security Intercom, which can incorporate max. 2 PanTilt video door
stations and up to 3 monitor stations. Audio only door station and audio-only handset sub station are optional.

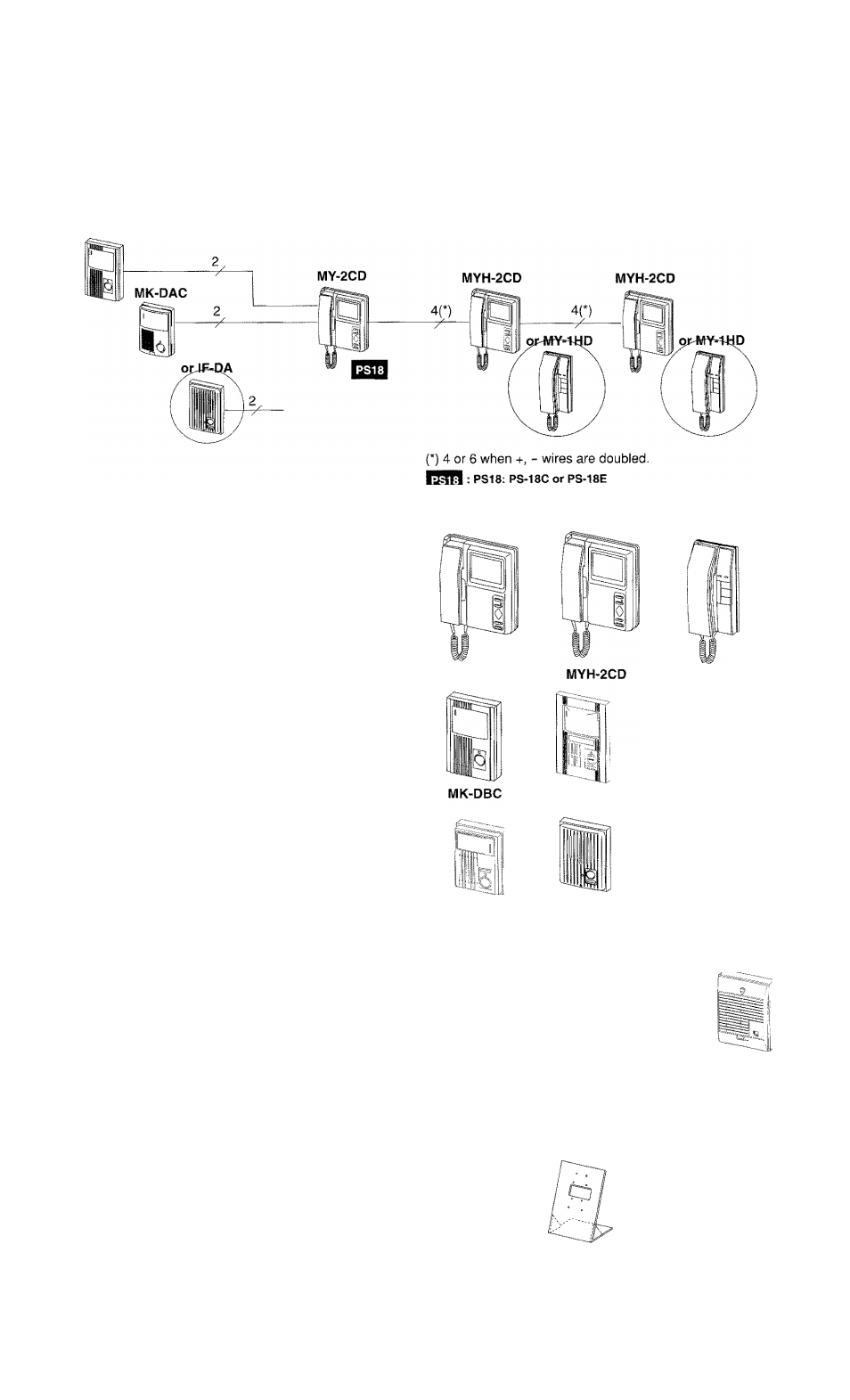

SYSTEM LAYOUT
MK-DBC
COMPONENTS AVAILABLE
MY-2CD, Master station w/monitor
MYH-2CD, Sub station w/monitor
MY-1HD, Audio-only sub station
MK-DBC, PanTilt video door station, semi-flush
MK-DGC, PanTilt, w/aiuminum cover
MK-DAC, PanTilt, surface mount
MY-DS, Wide-angle fixed camera door station
IF-DA, Audio door station (any lE/lF series)
other models
IViY-DC/A, IViY-DG/A, fi/IY-EA, MY-FA, ftilY-CA
MY-2CD
MK-DGC
MY-1HD
MK-DAC
MY-DS IF-DA
OPTIONS
MYW-BA, Long distance adaptor
RY-3DL, Door release adaptor
KC-32EU, Picture memory unit
IER-2, Call extension speaker
MYW-BA RY-3DL KC-32EU IER-2
Mounting accessories
MKW-R, Surface mount box for MK-DBC, MK-DGC.
KAW-D, 30' Angie Box for surface mount video
door stations MK-DAG, MY-DS.
MCW-S, Desk stand for MY-2GD, MYH-2CD.
KAW-D MCW-S MKW-R
