BEFORE YOU OPERATE THE EQUIPMENT — Prohibitions and precautions —
"Operation;

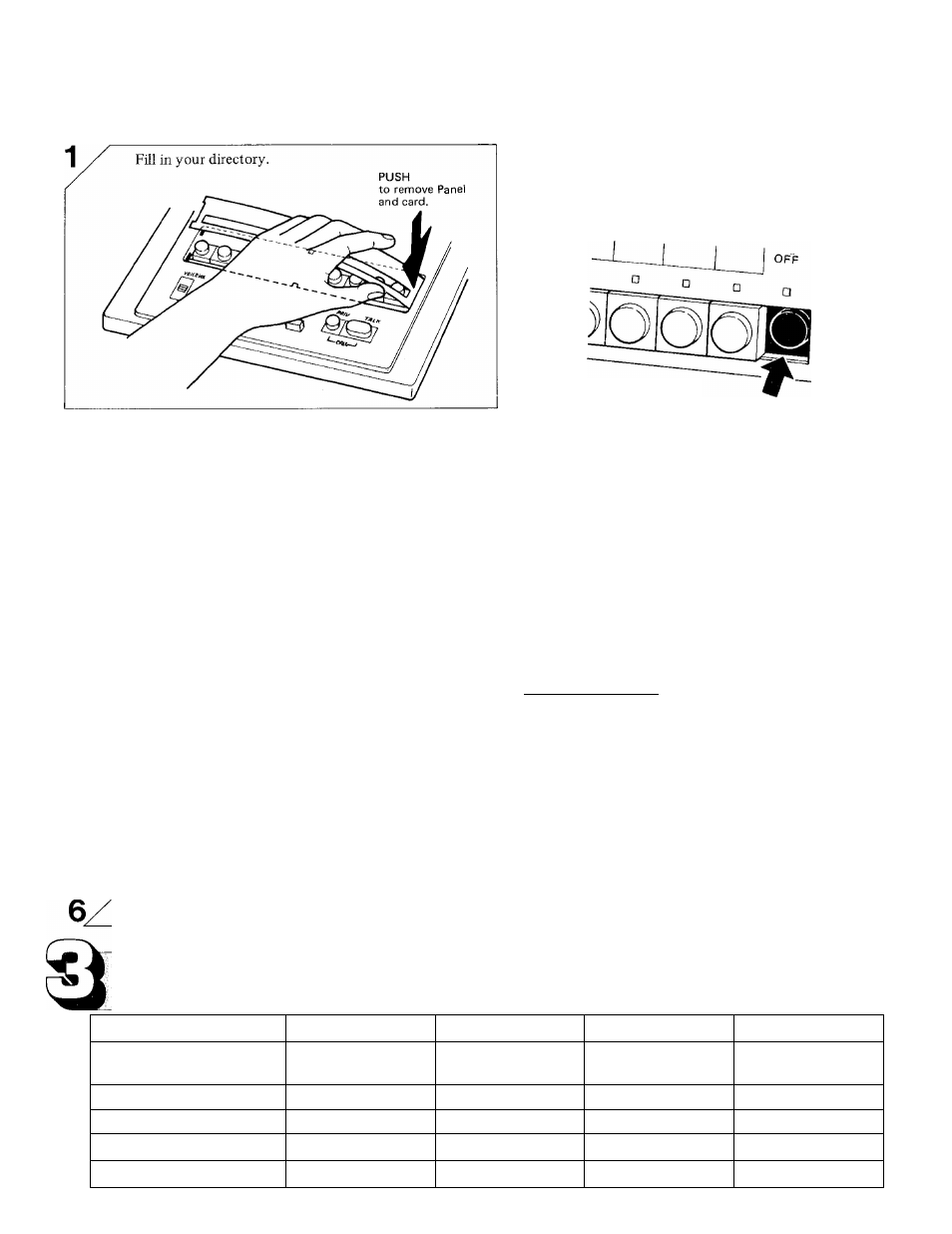

On all LAP master stations, except station
initiating a call, OFF button MUST BE
DEPRESSED and LOCKED DOWN, or
system will not work.
LAF-7B/LAF-10B (Type A)
STANDBY POSITION
The illuminated OCCUPIED LED indicates the other station is using the system.
DO NOT SELECT
WHILE OCCUPIED LED IS LIT.
DOOOC
ALL CALL OCCUPIED
□
® While the occupied LED is lit, DO NOT DEPRESS ANY SE­
LECTOR BUTTON. The squeak sound wfll come out at initiating
and receiving stations.
When you receive calls from another master and a sub at the same
time, reply first to the master and, after the Occupied LED goes
out, depress a selector button of the calling sub and communicate.
(2) DO NOT MAKE ALL CALL (When LAF-7B/10B (Type A) is
mixed with existing LAF models. See Page 4).
* Volume adjustment ;
When a sub station calls while background music
distributed, the call tone will come out through
all LAF station speakers, and call annunciator
LED stays lit for approx. 20 seconds only on the
called master station.
HIGH
MEDIUM
LOW
UP
MIDDLE
VOICE VOL. TONE VOL,
■ ■
I (
I I
— DOWN
It is recommended VOICE volume be set at
middle position and TONE volume at high or
medium position for normal use.
* Maintenance;
Clean your equipment by a soft cloth dampened with neutral household cleanser. Never use thinner nor benzine.
COMMUNICATION FUNCTIONS
------------ LAF-IB LAF-3B LAF-7B LAF-IOB/A
• • • •
Calling & communication
( 1 -call) (3 calls) (7 calls) (10 calls)
All call transmission • •
Receiving all caU/BGM • • • •
Activating door release • • • •
Monitoring • • • •
-
