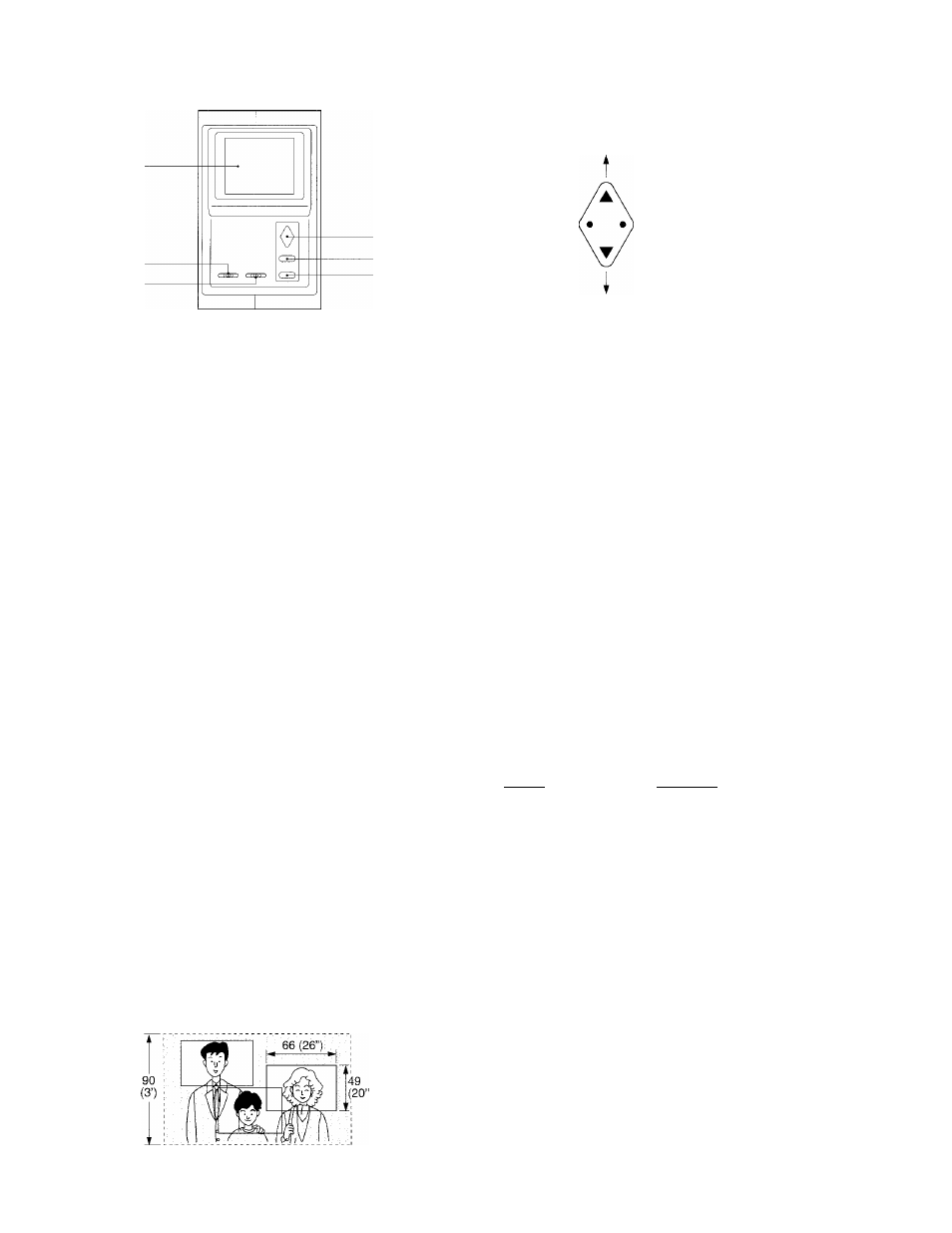

OPERATIONS on LEF-10C & MYH-CUB
Video­
monitor
BRIGHT
CONTRAST
Tilt camera up and down
up
to left ■
PanTllt pad
Backlight button
MONITOR button
- Pan camera
to right
down
PanTilt door station call-in
1. Press CALL button on PanTilt door station.
2. A mono electronic tone or chime tone is heard on LEF master.
MYH-CUB monitor(s) turns on, staying on for 45 seconds.
3. Depress a lit Station-Select button to establish the channel.
4. Press TALK button to reply.
5. At conclusion, press OFF button to disactivate both audio and video.
★ Image is on for 2-1/2 minutes during communication.
Press MONITOR button to turn on again if needed.
Surveillance w/pan-tilt scanning
1. In standby, activate MYH-CUB monitor(s) with MONITOR button.
2. Press MONITOR button a second or third time to switch image to entry 2 and 3.
Each image is held for approx. 2-1/2 minutes.
3. Press MONITOR to turn off, or it will turn off in 2-1/2 minutes.
To monitor audio and video
1. Select the selector button for the door on the LEF. The monitor is activated,
and master station is in the listen mode.
2. Press OFF to turn off both audio and video. If left on, monitor will turn off in 2-1/2 minutes.
Backlight & Contrast controls
BACKLIGHT compensates for weak contrast image.
Put CONTRAST to left H position, to sharpen image
in a dimly lit entry.
( ( 00 ) )
BRIGHT
Darker« Brighter
H • L
( (GD) )
CONTRAST
High - Medium - Low
Pan & tilting door camera
While the image is alive, pan and tilt the camera,
pressing each edge.
if Image viewing area;
MY-DC/A, MY-DG/A:
• 49cm Vert., 66cm Horiz. (20"V x 26"H)
• Max. scanned; 76"V 122"H
90cm Vx 180cm H(3'V, 6'H)
-180 (6’)
Prism MY-CA, MY-EA, MY-FA
• 51cm Vert., 72cm Horiz. (20"V, 29"H)
• Max. scanned: 76"V and 109'H
90cm V, 140cm H (3'V, 4'7"H)
180 (6’) Unit: cm (approx.)
72 (29") ►
110(3', 7")
51
(
20
")/
i /
90
(3')
140cm, 4'7"
when camera
is non-tiited.
