MOUNTING

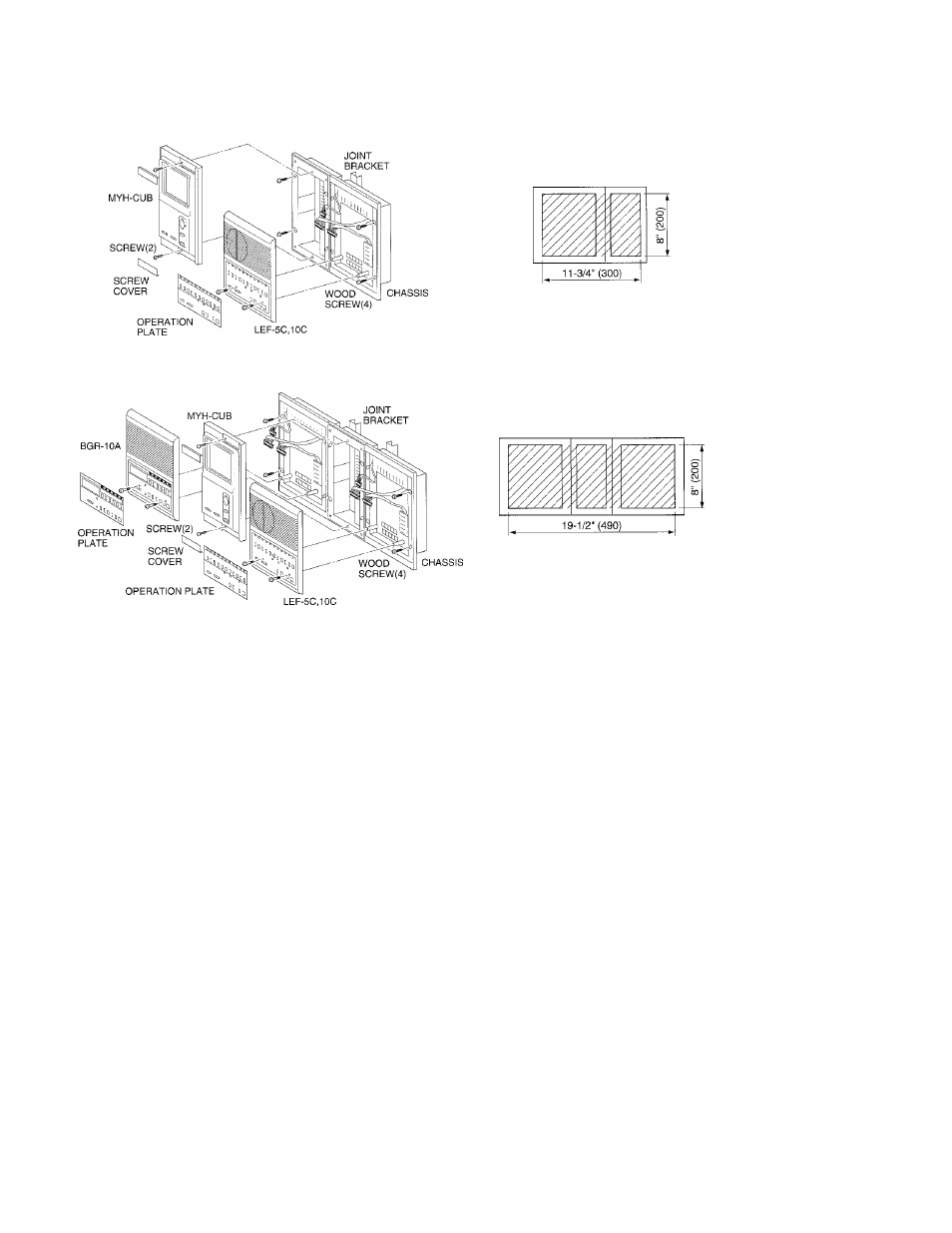

MYH-CUB & LEF-5C/10C
■ BGR-10A, MYH-CUB & LEF-5C/10C
★ Chassis is 40mm, 1-9/16" deep.
■ Mounting height
Mount the video monitor so that the center of monitor screen comes to the eye level
of the user.
■ Semi-flush mounting
1. Cut proper size holes on the wall as shown for mounting components, or use
appropriate back boxes.
2. Separate the chassis from each LEF & MYH-CUB.
3. Put LEF & MYH-CUB chassis together with a joint bracket.
4. Mount 2 or 3 chassis assembled with 4 supplied screws.
5. Make wire connections on each chassis according to the wiring diagrams.
6. Reconnect LEF & MYH-CUB, plugging in to each chassis.
7. Mount the front cases to chassis.
8. When installation is complete, plug in power supplies, and test the listed features.
★ The 3-piece combination is wider than a stud space (16"). In order to mount without
the BBX-6E (USA), the center 2x4 has to be cut and framed where the intercom will
be placed.
-4-
