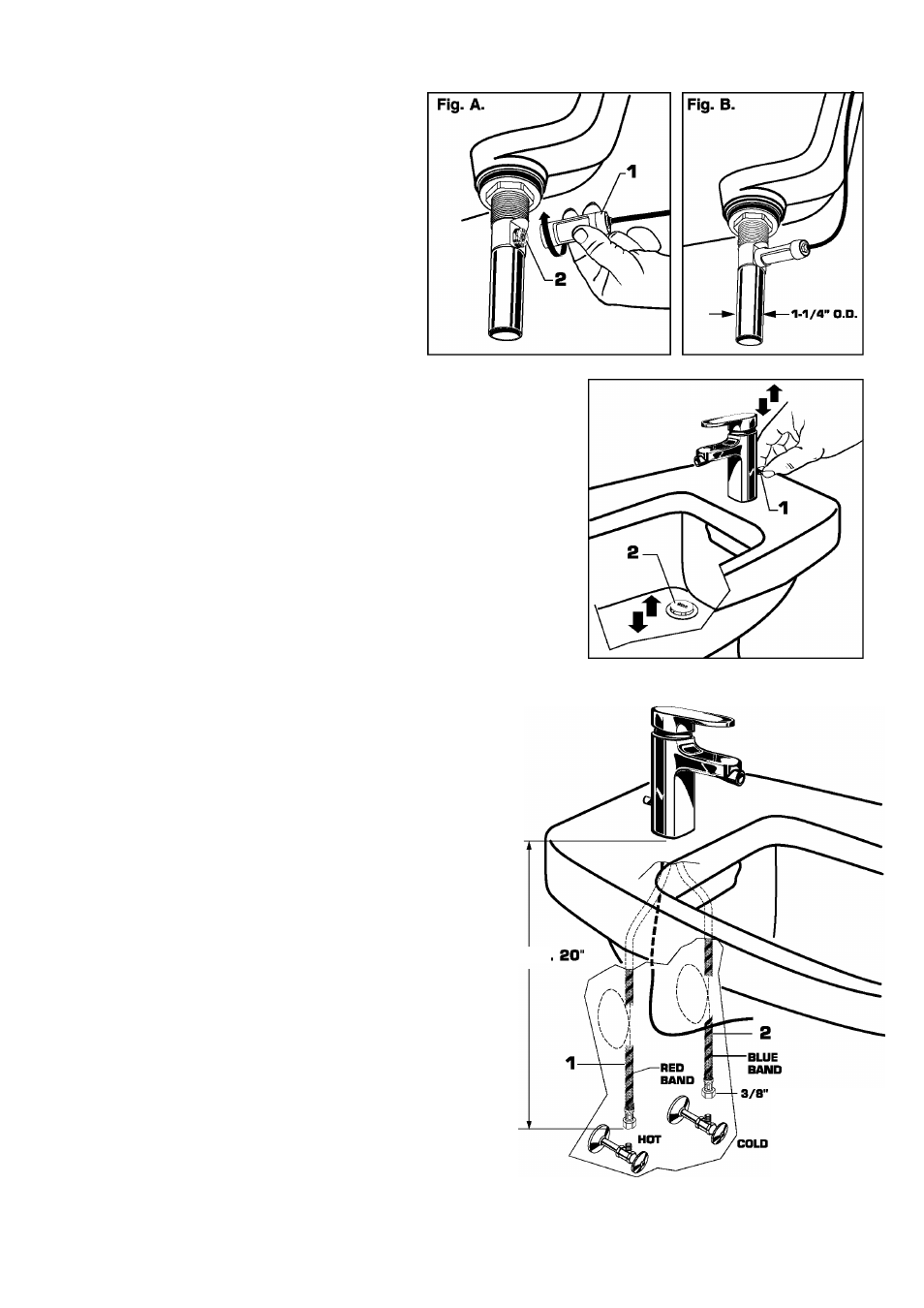

ATTACH CABLE CONNECTOR

Thread CABLE CONNECTOR (1J clockwise

onto DRAIN BODY CONNECTION

[2)

and

hand tighten.

Fig. A.

Your new POP-UP DRAIN installation is

now complete.

Fig. B.

Note:

Tailpeice on pop-up drain is 1-1/4” O.D.

Fig. B.

CHECK OPERATION OF POP-UP

Operate LIFT KNOB

(1)

to verify that STOPPER

(2)

opens and

closes.

Note:

If STOPPER

(2)

does not open and close properly then refer

to the “troubleshooting section” of these instructions.

MAKE WATER SUPPLY ANO WASTE CONNECTIONS

Connect FLEXIBLE SUPPLIES

(1, 2)

directly to wall supplies.

Connection on fitting supplies are 3/8" compression. Connect

left SUPPLY (TJ to Hot (Marked with a Red Band] and right supply

to COLD

[2)

wall supply.

Faucet supplies are 2D” long from faucet base.

Note: If additional supply length is required, installer must

purchase additional parts separately.

Important: If SUPPLY HOSES ¡1, 2J are to long, loop as

illusP'ated to avoid kinking.

Connect 1-1/4” O.D. tailpiece on POP-UP DRAIN to

waste outlet.

APPROX.

COMPRESSION

M968936
