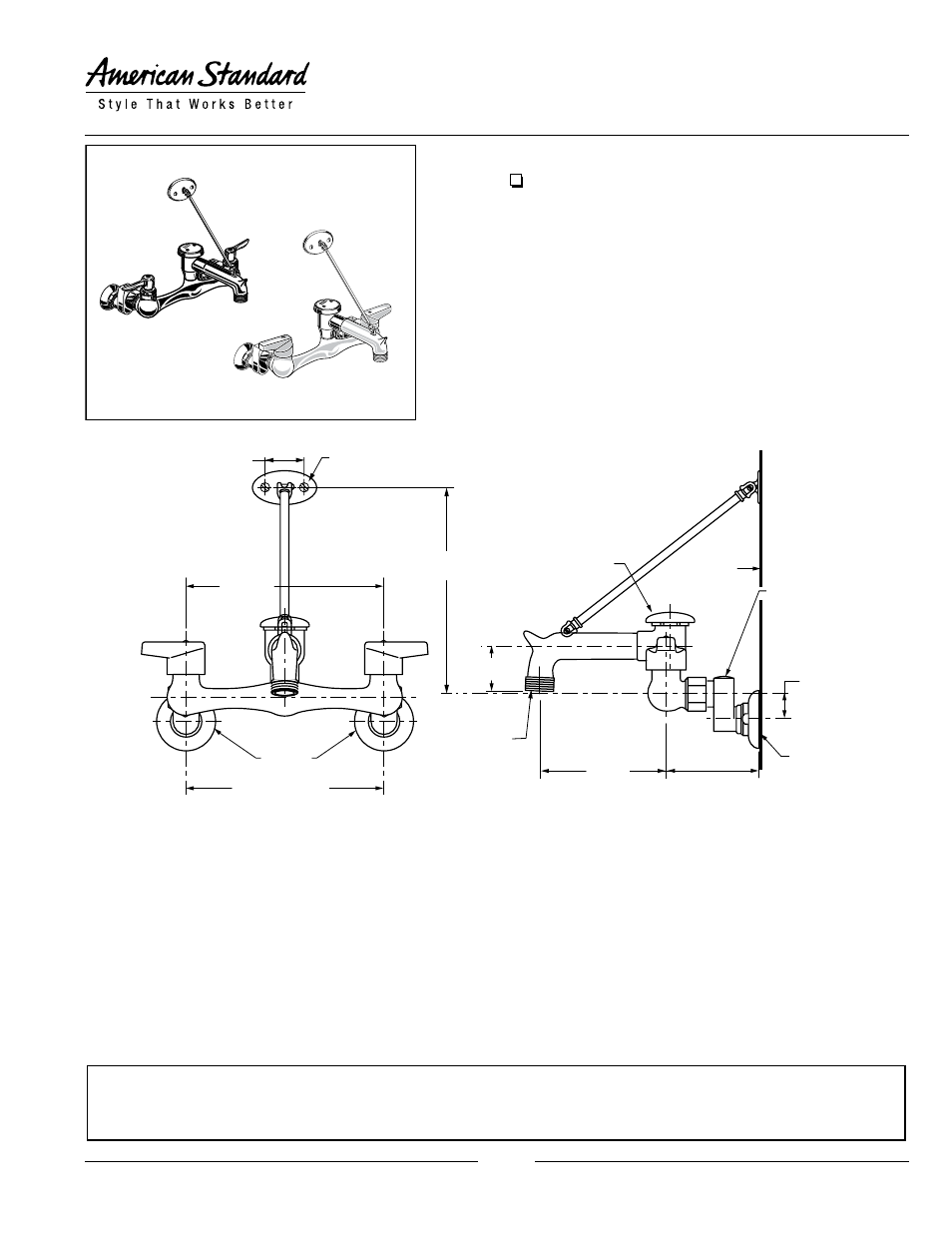

EXPOSED YOKE WALL-MOUNT
UTILITY FAUCET
WITH TOP BRACE
MODEL NUMBER:
8344.112 Exposed Yoke Wall-Mount Utility Faucet
Top brace. Vacuum breaker. Offset shanks with integral
stops. Metal lever handles. 6" threaded spout. 1/2" NPT
female inlets.
Exposed yoke wall-mount utility faucet. Top brace. Vacuum breaker.
Offset shanks with integral stops.
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
ASSE 1001
ANSI A117.1
8344.112
#14 X 1-1/2 WOOD SCREWS
3/4" HOSE
THREADS
FINISHED
WALL
203mm
(8)
51mm
(2)
GENERAL DESCRIPTION:
Cast brass body. Metal lever handles with hot and cold
indicators. 1/4 turn ceramic disc valve cartridges that are
reversible for use on both "hot" and "cold" sides. Vacuum
breaker prevents back flow. Offset shanks with integral stops.
Spout, top braced to wall, with bucket hook and threaded
hose end. 1/2" female inlets adjustable from 6" to 10".
PRODUCT FEATURES:
Cast Brass Construction: Durable - Excellent in high use
applications.
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Vacuum Breaker: Prevents back flow.
Offset Shanks with Integral Stops: Permits easy and
convenient access. Adjustable rough-in from 6 to 10 inches.
Top Brace: Provides additional support.
Choice of Finishes: Available in Polished or Rough
Chrome.
SUGGESTED SPECIFICATION
Exposed yoke wall-mount utility faucet shall feature a cast brass body and spout with bucket hook, top brace, and metal lever
handles. Shall feature vacuum breaker and offset shanks with integral stops. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Fitting shall be American Standard Model # 8344.112.___
Product
Number
Description
Finish Options
Polished
Chrome
002
Rough
Chrome
004
7 8 3 7 . 0
3 2
7 8 3 7 . 0
3 2
Polished Chrome
Rough Chrome
Ø 60mm
(2-3/8)
24mm
(1)
OFFSET SHANKS
WITH INTEGRAL
STOPS
1/2 N.P.T.
FEMALE
THREADS
BACKFLOW
PREVENTER
44mm
(1-3/4)
156mm
(6-1/8)
92 to 105mm
(3-5/8 to 4-1/8)
HOT COLD
FLOW RATE*
GALLONS PER MINUTE
I N L E T P R E S S U R E ( P S I )
*Flow rates shown are for mixed hot and cold.
5
10
15
20
100 80 60 40 20
ADJUSTABLE
152 to 254mm
(6 to 10)
203mm
(8)
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
