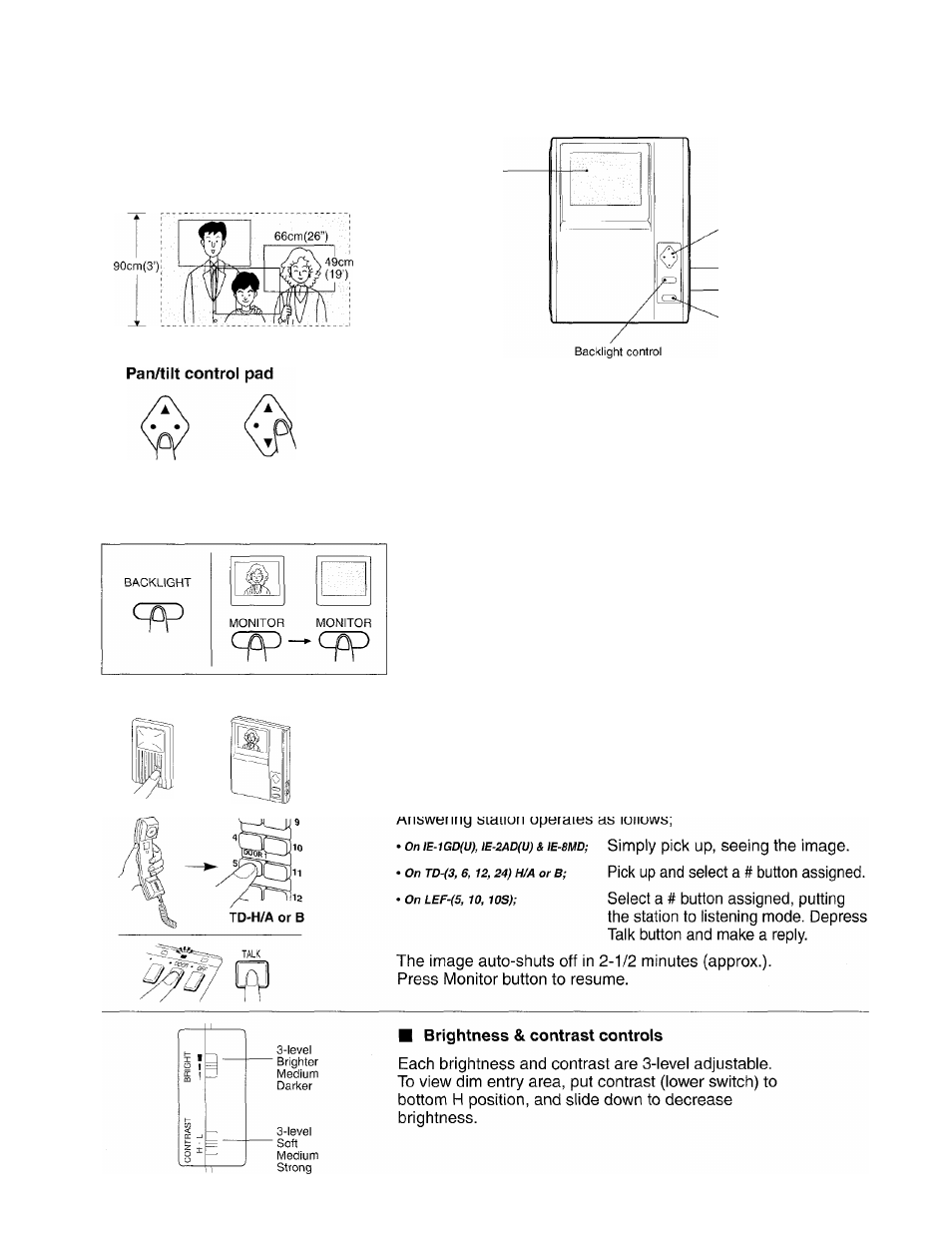

OPERATIONS on MY-CU & MYH-CU
I MY-DC, DG image viewing area
j : when camera is panned and tilted fully
□ : when camera is in still position.
-180cm(6’)-
Door camera
tilts down
Door camera
pans to right
Video monitor
Pan/tiit control
Brightness
Contrast
Monitor
When an image of entry is on the monitor, move door camera up
or down, side to side. Press on each edge of diamond-shaped
pad, and door camera is panned and tilted to view max. 90cm
high
X
180cm wide (3’ H
x
6’ W) on the monitor screen.
Backlight control & Monitor buttons
Backlight
control button literally adjusts to brighten image of
entry strongly backlit or when the entrance area is dim day or
night.
Monitor
button views image of entry handsfree for 2-1/2
minutes (approx.). Press “Monitor” to turn off, or to view image of
2nd and 3rd entry.
PanTilt door station cail, monitor-activating
Chime,
Call tone
When a PanTilt door station has called, it turns on MY-CU and
MYH-CU sub-monitor(s). The image is kept on for approx. 45
seconds.
