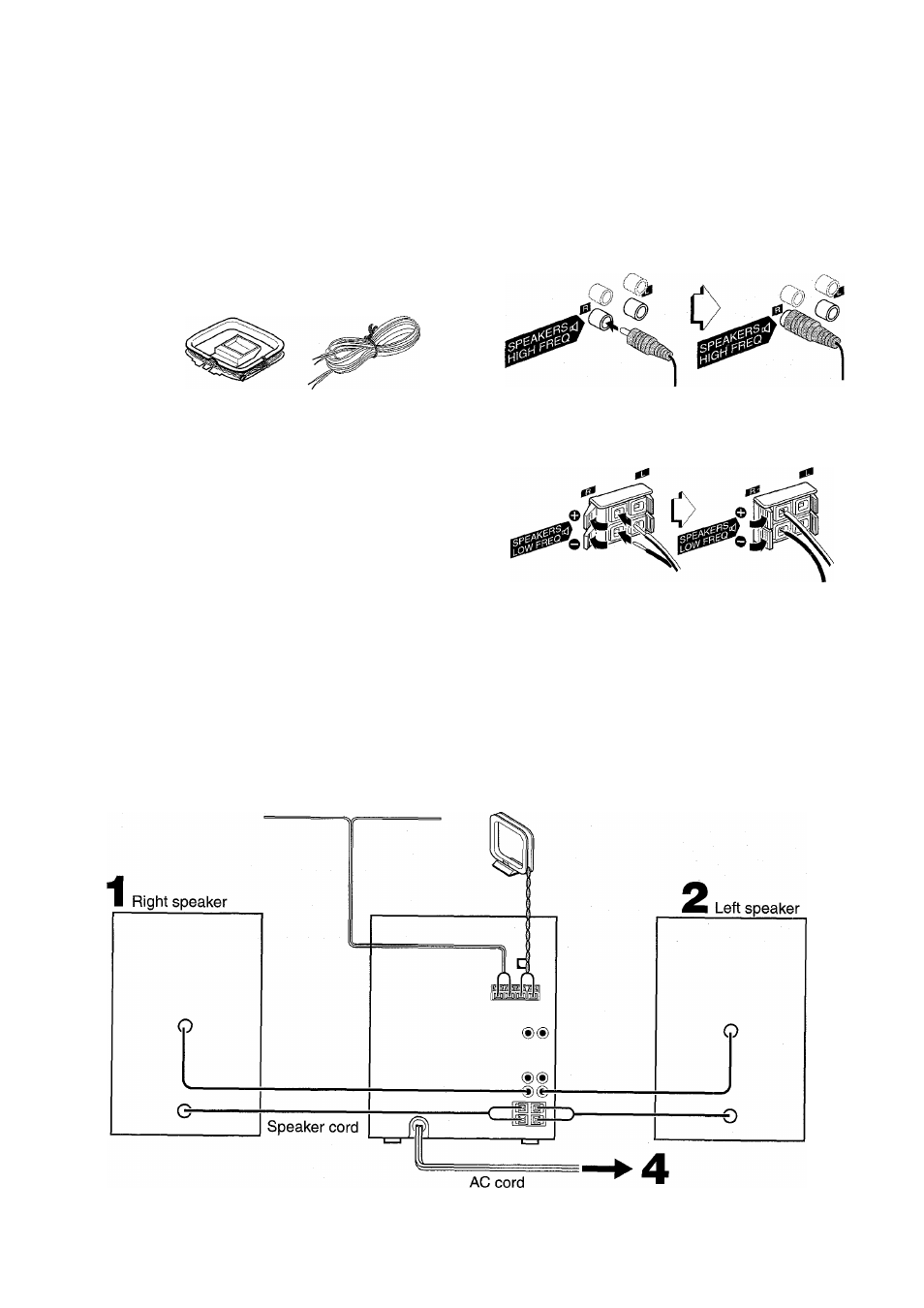

PREPARATIONS

Check your system and accessories

NSX-A555

CX-NA555 Compact disc stereo cassette receiver
SX-WNA555 Front speakers

Remote controi

AM antenna

FM antenna

Operating instructions, etc

Before connecting the AC cord

The rated voitage of your unit shown on the rear panei is

120 V AC. Check that the rated voltage matches your local

voltage.

iWlPORTANT

Connect the speakers, antennas, and all optional equipment first.

Then connect the AC cord.

There are no differences between the front speakers. Both

speakers can be connected as L (left) or R (right).

i Connect the right speaker to the main unit.

® Connect the speaker cord with the plug to the

SPEAKERS

HIGH FREQ R

terminal.

(D Connect the speaker cord with the white stripe to the

SPEAKERS LOW FREQ R O

terminal and the black cord

to the O terminal.

2 Connect the ieft speaker to the main unit.

Connect the speaker cord with plug to the

SPEAKERS HiGH

FREQ L

terminal, and another speaker cord to the

SPEAKERS LOW FREQ L

terminals in the same manner as

step 1.

FM antenna

AM antenna

ENGLISH
