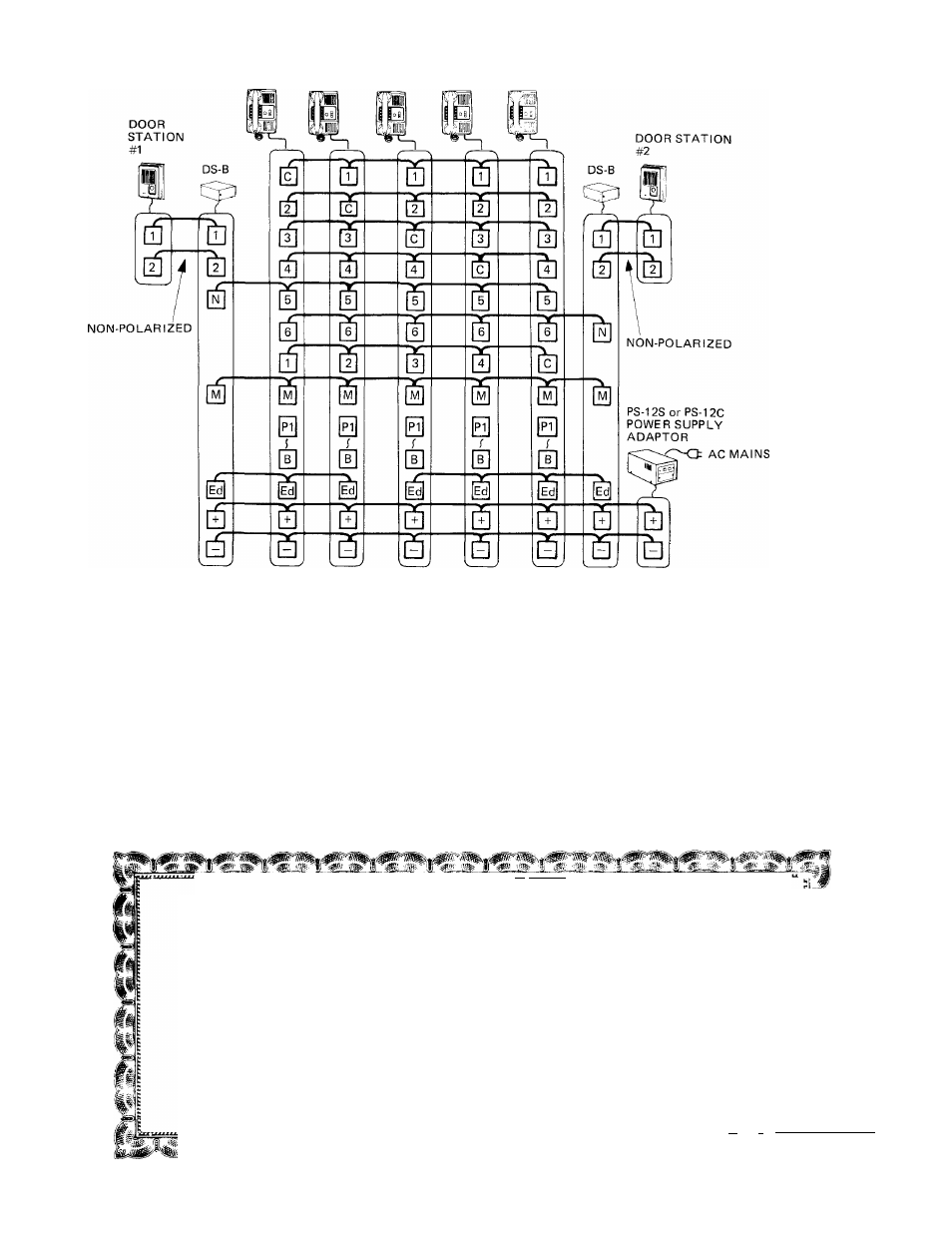

( WIRING EXAMPLE

TS-6K SYSTEM

WITH 2 DOOR STATIONS

STATION STATION STATION STATION STATION

TS-6K

* In the above example, door station #1 can call and communicate with TS-K masters #1 and 2. Door station #2 can call

and communicate with TS-K masters #3, 4 and 5. In addition, door station #1 may communicate with master #3, 4 or

5, after call is transferred, and door station #2 with master #1 or 2 in the same way.

NOTE; (1) Up to two door stations may be connected to up to 4 TS-K masters in a system.

(2) If the system is in use, a call from door does not sound at any TS-K station.

(3) Transfer of call from door to another TS-K station may be accomplished as follows;

1. Momentarily hang up handset to cancel communication with the door.

2. Select the TS-K station number desired and ask the station to select the number assigned for door station.

3. Hang up your handset.
