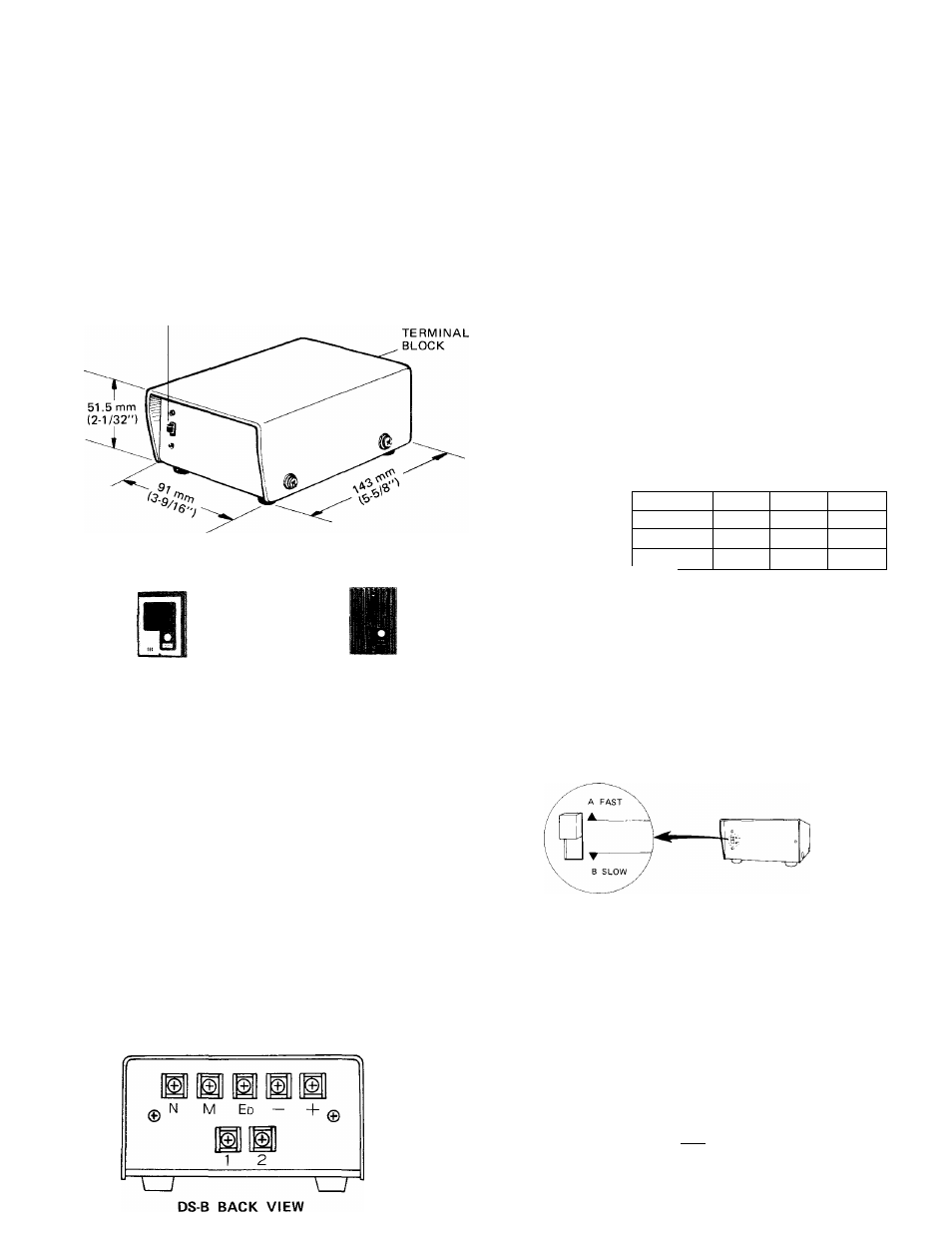

@ AIPHONE
DS-B-l-0986 fe
DOOR STATION ADAPTOR
Model:
DS-B
DS-B DOOR STATION ADAPTOR IS DESIGNED FOR USE WITH TS-K SPEAKER-PHONE
INTERCOM SYSTEM.
- INSTRUCTIONS -
* Power source
CALL
TONE
SWITCH
May be extended from PS-12S (PS-
12C in North America) of TS-K sys
tem.
* Current consumption; 50 mA maximum.
* Wiring: 5 wires between DS-B and TS-K master
(polarized)
2 wires between DS-B and door station
(non-polarized)
* Wiring distance; Select the proper wire gauge to
meet your requirements from the
chart below;
* PLEASE SELECT THE MOST SUITABLE DOOR
STATION FOR YOUR APPLICATION;
MAXIMUM COM
MUNICATION
DISTANCE FROM
TS-K TO DOOR
STATION
DIAMETER 0.5 mm 0.65 mm 0.8 mm
DISTANCE
90 m
150 m
230 m
AWG
24 AWG 22 AWG 20 AWG
DISTANCE
300'
500'
750'
IC-DC
■
IC-NA
IC-RA
■
IC-KA
I
IC-JA
IC-FY
(
WALL MOUNTING
Attach the mounting bracket to gang box or wall
with the supplied screws. Insert the prongs of the bracket
into the holes of the body and pull the body downward.
DS-B
M O U N T I N G
B R A C K E T
-- -
'
83.5
.(
3
-
5
/
16
”) ■
WALL
l|
CALL TONE SWITCH )
The call tone (tremolo sound) from door can be set
either fast or slow by using the switch provided. TS-K
speaker-phones can identify which door station called.
c TO PREVENT ELECTRIC SHOC^
DO NOT CONNECT ANY TERMINAL ON ANY UNIT TO AC POWER LINES.
BE SURE TO REMOVE PLUG OF PS-12S OR PS-12A (OR PS-12C) FROM POWER OUTLET BEFORE YOU
OPEN THE UNIT OR MAKE WIRING CONNECTIONS.
Do not pinch connecting wires in windows, doors or desks.
DS-B must be installed in as dry and dust-free environment as possible.
ACTUAL TERMINAL LOCATION
E
□
EE
. . for connecting to number terminal of TS-K
master
. . for connecting to terminal of TS-K master
. . for connecting to ¡Ed| terminal of TS-K master
for connecting E S terminals of PS-12S or
' PS-12A (or PS-12C) power supply adaptor
. . for connecting door station (non-polarized)
