831222 0489 CC;

O AlPHONE

HOME INTERCOM SUB STATION ]

MODELS:

LA-B

LA-BN

1-call, semi-flush mount

-do-, privacy type

J

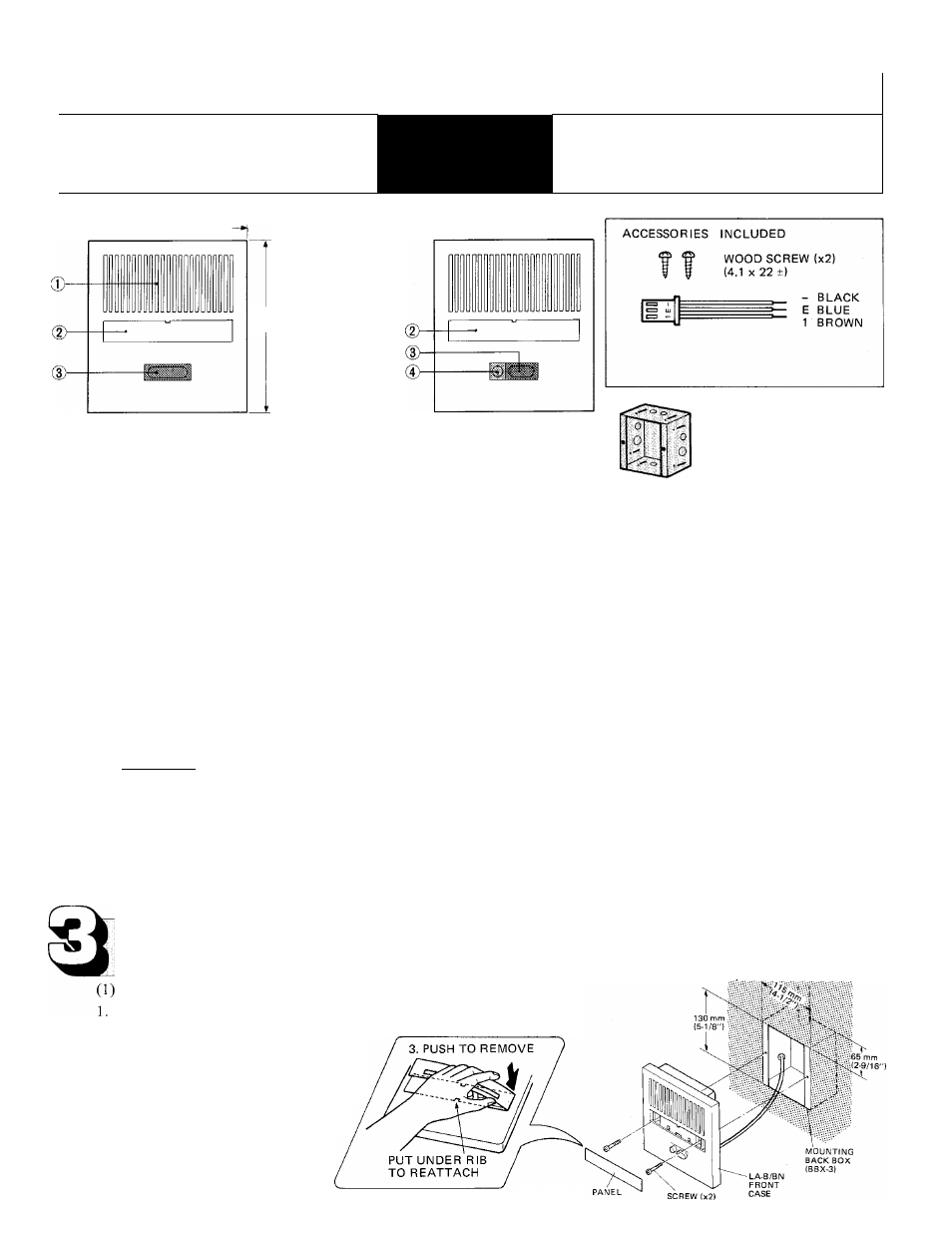

INSTALLATION MANUAL

------155 mm (6-1/8")—

165 mm

(

6

-

1

/

2

" )

130 mm
(5-1/8")

1 5 mm 65 mm

(9/16") (2-9/16")

LA-BN

LA-B

MOUNTING

BACK BOX

(Model: BBX-3)

•Must be ordered separately.

SCREW (x2)

(4 X 25 ±)

15 mm (4-1/2")-*J

NAMES AND FUNCTIONS

©

a

Speaker

Panel

(D CALL button

® PRIVACY button

3-pin connector (for station wiring)

Mounting back box (Model; BBX-3)

DESCRIPTION AND PRECAUTIONS

1. LA-B and LA-BN are 1-call sub stations, semi-flush mountable and used for your LAF-B Home Intercom System; LAF-

lOB (Type A), LAF-7B, LAF-3B, LAF-IB and existing LAF stations. When used for LAM-1/3 system, E and — connec­

tors must be united.

2. Installation; Do not connect LA-B/BN sub to more than 2 master stations.

3.

Operation; Simply depress CALL button to signal a master (and PRIVACY button pops up on LA-BN). After master

replies, talk handsfree. DO NOT PRESS CALL BUTTON DURING COMMUNICATION.
After communication, depress PRIVACY button again on LA-BN.
Incoming call from master is announced by electronic tone or voice.

Just reply handsfree (on LA-BN, after momentarily depressing CALL button).

4. Before you install and operate the equipment, read and observe carefully Instructions stated in the Installation/Operation

Manuals packed with each LAF-B master unit.

INSTALLATION

Semi-flush mounting to wall (in new construction);

For new construction, use a mounting back box
(Model; BBX-3).

2. Install the back box in the wall.
3. Remove a panel on front case.

4. Mount LA-B/BN unit to the back box

with two screws (supplied).

5. Reattach the panel.

- 1
