ELECTRIC
FIREPLACE
INSTALLATION
INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
TECHNICAL SERVICE
Replacing Light Bulbs
There are (3) colored lamps rated at 120V, 100 Watts, for use in a
medium sized socket. These bulbs are located under the log bed
and can be replaced as follows:
1. If you are unsure which bulb need replacement, defective bulbs
may be visually located as any of 3 bulbs colored – Red,
Yellow and Orange starting from the left (see Figure 10, page
6). Defective bulbs can be replaced individually or for
convenience you may want to replace all the light bulbs even if
only one is defective.
2. Disconnect power to the unit at the main breaker or fuse panel.
3. Lift the log bed off the hearth base to gain access to the lamp
fixtures; log bed is attached with contact magnets only.
4. Remove each defective bulb from its socket, and replace with
the appropriate color and size bulb.
NOTE: be careful not to tear or damage the reflective ribbon. If
they have come loose, they can be easily reattached or replaced at
the support brackets. See – Replacing Reflective Ribbons, page 18.
5. Return power to the circuit and turn main power switch and
lamp power on to check the operation of the bulbs before
replacing the log set.
6. If all the bulbs are working properly replace the log bed over
the center opening in between the rear screen and front grate.
Maintaining Motors
Motors used on the fan and heater assembly are permanently
lubricated do not require lubrication. Annual cleaning and/or
vacuuming around the heater and fan unit is recommended.
Removing/Replacing Control Door
The upper control door may be removed for service or
replacement when necessary:
1. Open the upper control door. See Figure 11, page 6.
2. Remove 4 Phillips screws above the heater grill and angle
the deflector shield out the opening. See Figure 29.
3. Remove the 4 Phillips screws with magnet assemblies.
4. Lift up on the inner control door and push in each end until
the pivot pins are free of the notches located on each side
of the access opening. See Figure 29.
5. Rotate the control door up into the control compartment
and slide one end into the side of the compartment.
6. Tilt out one end first then pull the remaining door assembly
through the opening.
7. Replace the door, by starting with door upside down and
pins facing the unit. Follow steps 1 through 5 in reverse.
8. Replace the discharge deflector and magnet assemblies.
13
Disconnect power before attempting any
maintenance or cleaning to reduce the risk
of fire, electrical shock or personal injury.
Any electrical repairs or rewiring of this
unit should be carried out by a licensed
electrician in accordance with national
and local codes.
Do not exceed 100 Watts per bulb when
replacing bulbs. Use of higher-rated bulbs
may result in fire, causing property
damage, personal injury, or loss of life.
Make sure the power is turned off at the
supply prior to disassembling this unit.
MAGNET
ASSEMBLY
END VIEW
END VIEW
LOUVER
DOOR
DOOR
LOUVER
DISCHARGE
DEFLECTOR
END VIEW
LOUVER
DOOR

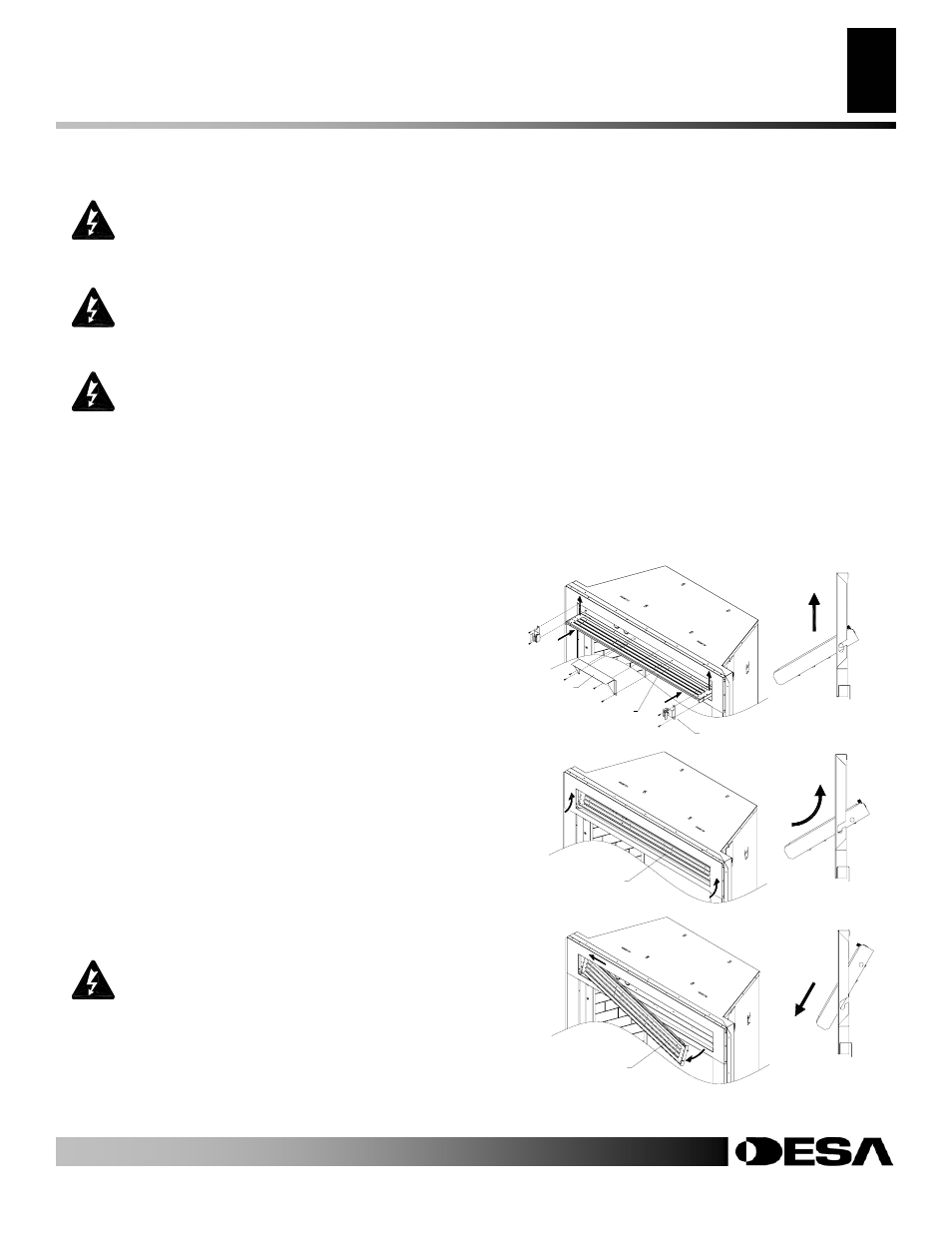

Figure 29 – Removing/Replacing Control Door
