ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH

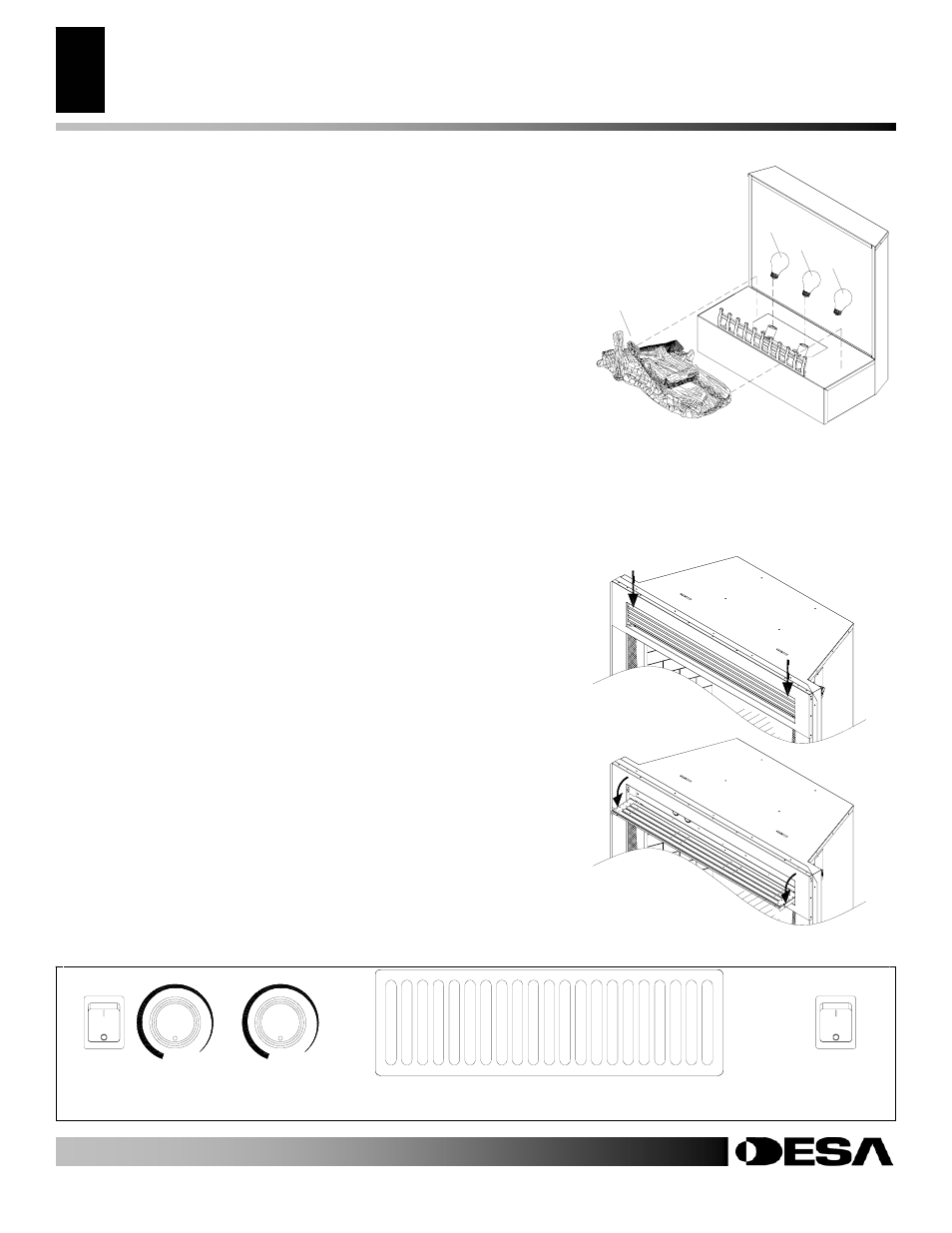

HEARTH ASSEMBLY
Before operating the appliance the lamp bulbs must be inspected and lava
rock treatments, if desired, may be added as follows:
1. Lift the log bed off the hearth base to gain access to the lamp fixtures,
(the log bed is attached with contact magnets only).
2. Turn the power on to the light circuit and check that all bulbs are
operating. The Red bulb is placed in the left most fixture and the Yellow
and Orange follow in that order. See Figure 10.
NOTE: If any bulbs need replacing, see Replacing Light Bulbs, page 13. Be
careful not to tear or damage the reflective strips. If they have come loose,
the ends can be easily reattached or replaced at the support brackets. See -
Replacing Reflecting Ribbons, page 18.
4. Center the log bed over the opening and in between the screen and grate.
5. Cover the remaining hearth area with a ¼” layer of lava rock provided.
PRODUCT FEATURES AND CONTROL OPERATION
Models (V)E36/32L series electronic fireplaces feature a random flame
effect, and realistic log bed with glistening embers that can be adjusted for
flame speed and light intensity.
Models (V)E36/32LH have an added circulating heater, rated at 1100 W.
In addition to a heater, the models E36/32LB and E36/32LBH include a
hand detailed, textured red-brick lining (Models VE36/32LB and
VE36/32LBH come standard with natural white brick).
The controls can be accessed by pulling on the top outer edges of the
uppermost louver until the panel releases from the magnetic catches on each
side and swings down to the open position. See Figure 11.
Figure 12 shows the control layout for heater equipped models with the
main power switch to the flame controls and the heater power switch (when
equipped) to the heating unit. This allows independent and efficient
operation of both features.
Once main power is turned on, flame speed and brightness may be turned
on and adjusted independently.
A slow flame speed creates a soothing appearance of a romantic fire while a
high flame speed invites the presence of a warm roaring fire.
The flame brightness may be adjusted to accommodate a particular mood or
lighting situation within the room.
6
FLAME SPEED
HI- OFF
LOW
OFF
HI-
LOW
FLAME BRIGHTNESS
VITESSE D'FLAMME
LUMINOSITÉ D'FLAMME
HAUT- ARRÊT
BAS
BAS
ARRÊT
HAUT-
COURANT
PRINCIPAL
CHAUFLAGE
MAIN
POWER
HEATER
Figure 12 - Control Panel Operation
RED
YELLOW
ORANGE
LOG BED
Figure 10 - Hearth Assembly
Figure 11 - Accessing Controls
