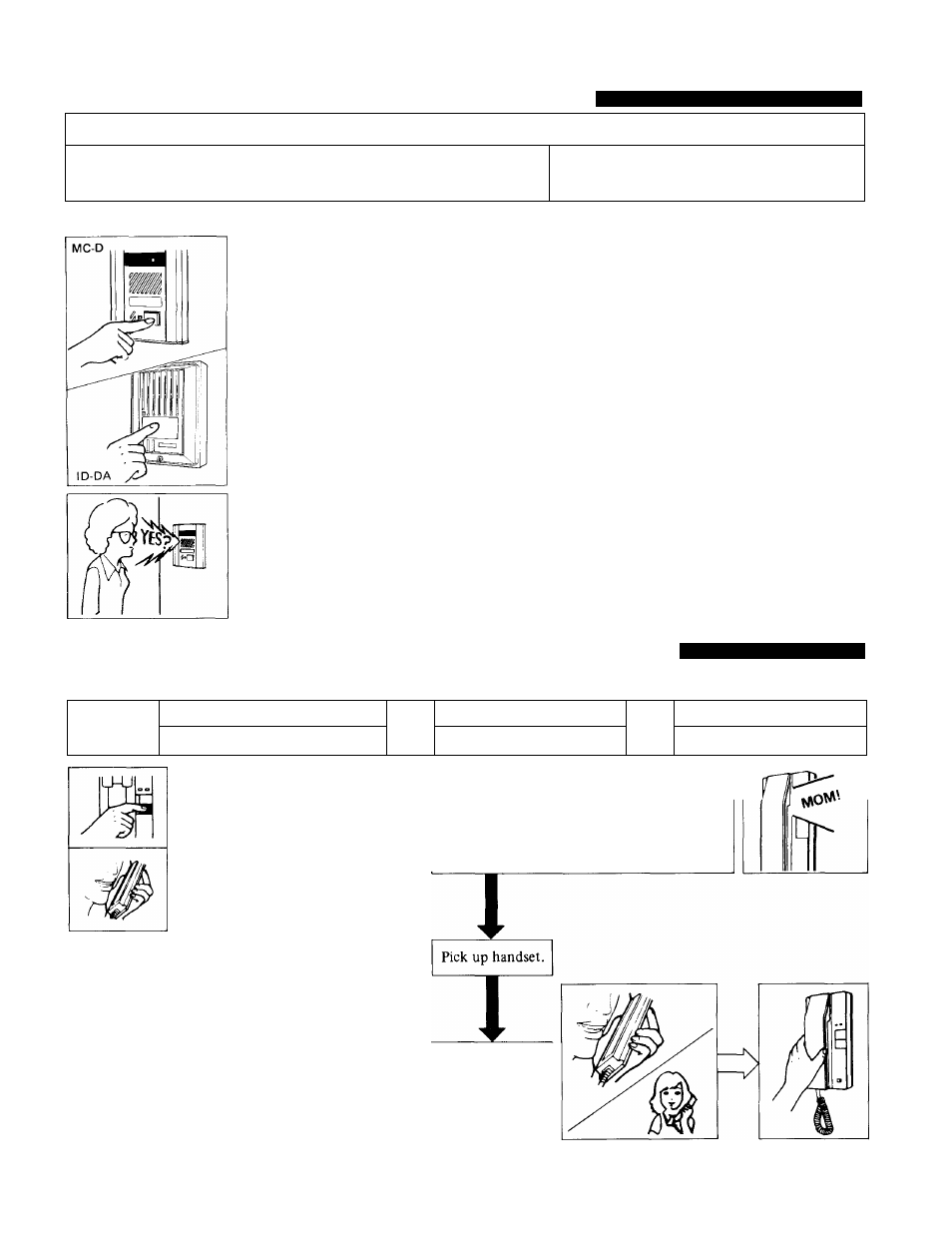

OPERATIONS
IC-IAD(U) IC-1GD(U)/A, IC-2AD(U)/A
DOOR STATIONS
#(l) MC-D (with CCD camera)
^ IC-DC, etc. (without camera)
^ (for IC-2AD(U)/A system only)
(1) CALLING:
Momentarily depress CALL button.
*You can hear call-
acknowledged tone.
Talk handsfree standing in front of the
camera, when room station replies.
Momentarily depress CALL button.
*You can hear call-
acknowledged tone.
Talk handsfree toward the door station,
when room station replies.
Notes: *The call-acknowledged tone is heard by electronic chime.
4-stroke .. . from MC-D door station (# ©).
2-stroke .. . from intercom door station (#© ).
*Do not touch CALL button while communicating.
(2) ROOM-TO-ROOM COMMUNICATION
IC-1GD(U)/A, IC-2AD(U)/A
ROOM STATIONS
MAIN
MC-U & IC-1GD(U)/A
SUB
MCH-U & ICH-1CD/A
SUB
MCH-U & ICH-1CD/A
MC-U & IC-2AD(U)/A
#®
MCH-USe ICH-1CD/A
# ®
MCH-U & ICH-1CD/A
Pick
up
handset,
depress
ROOM CALL button once
and call by voice directly,
depressing
and
holding
ROOM CALL button.
Two room stations are called simultaneously
by pre-tone and voice direct.
Wait for a reply.
Communicate.
After communication, hang up handset.
Notes: *Calling from sub room station is available by TONE ONLY. Please call by Morse code.
♦During room-to-room communication, a call from door station can be announced by low chime tone thru handset
and picture appears, if from MC-D. Hang up handset at both stations and, at either station, pick up handset and reply.
-
