on the hooks at the top of the wall-mounting plate so that the
hooks at the bottom of the indoor unit match the hooks of the
wall-mounting plate. (Fig 5)
Inspections:
a. See if the hooks at the top and bottom are firmly fixed.
b. See if the position of the master unit is
properly leveled.

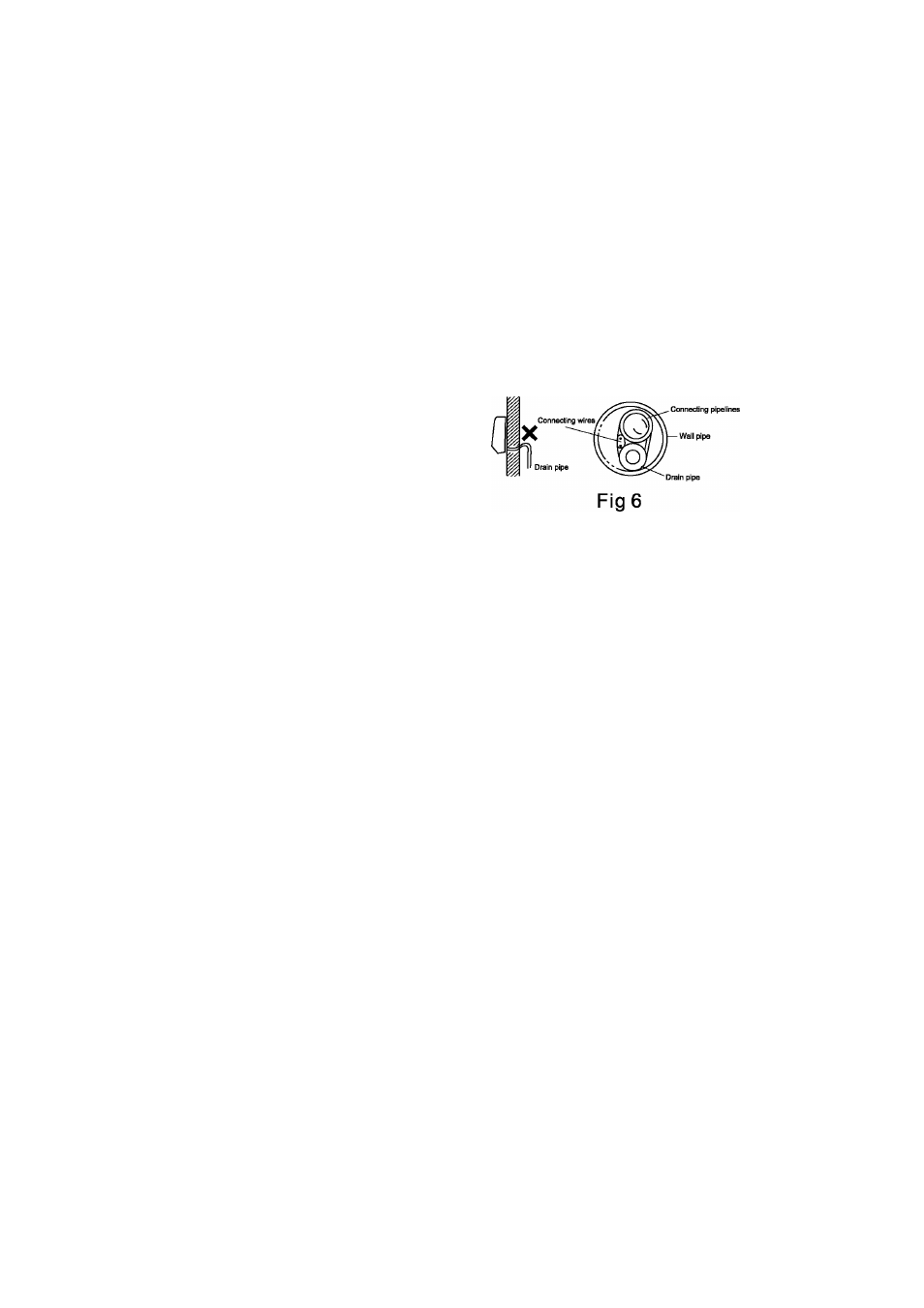

c. The drain pipe should not curve
upward( Fig 6).
d. The drain pipe should be at the
lower part of the wall pipes(Fig 6).
4. Wire connections of indoor and outsoor units connect the wires
of the indoor and outdoor units properly according to the schematic
diagram.
Note:
Do not connect the wires in a wrong way, otherwise electric
malfunctions will be caused and ever damages to the units will
occur.
The appliance is fitted with means for disconnection from the
supply mains having a contact separation in all poles that provide
full disconnection under over voltage category III conditions,
and these means must be incorporated in the fixed wiring in
accordance with the wiring rules.
