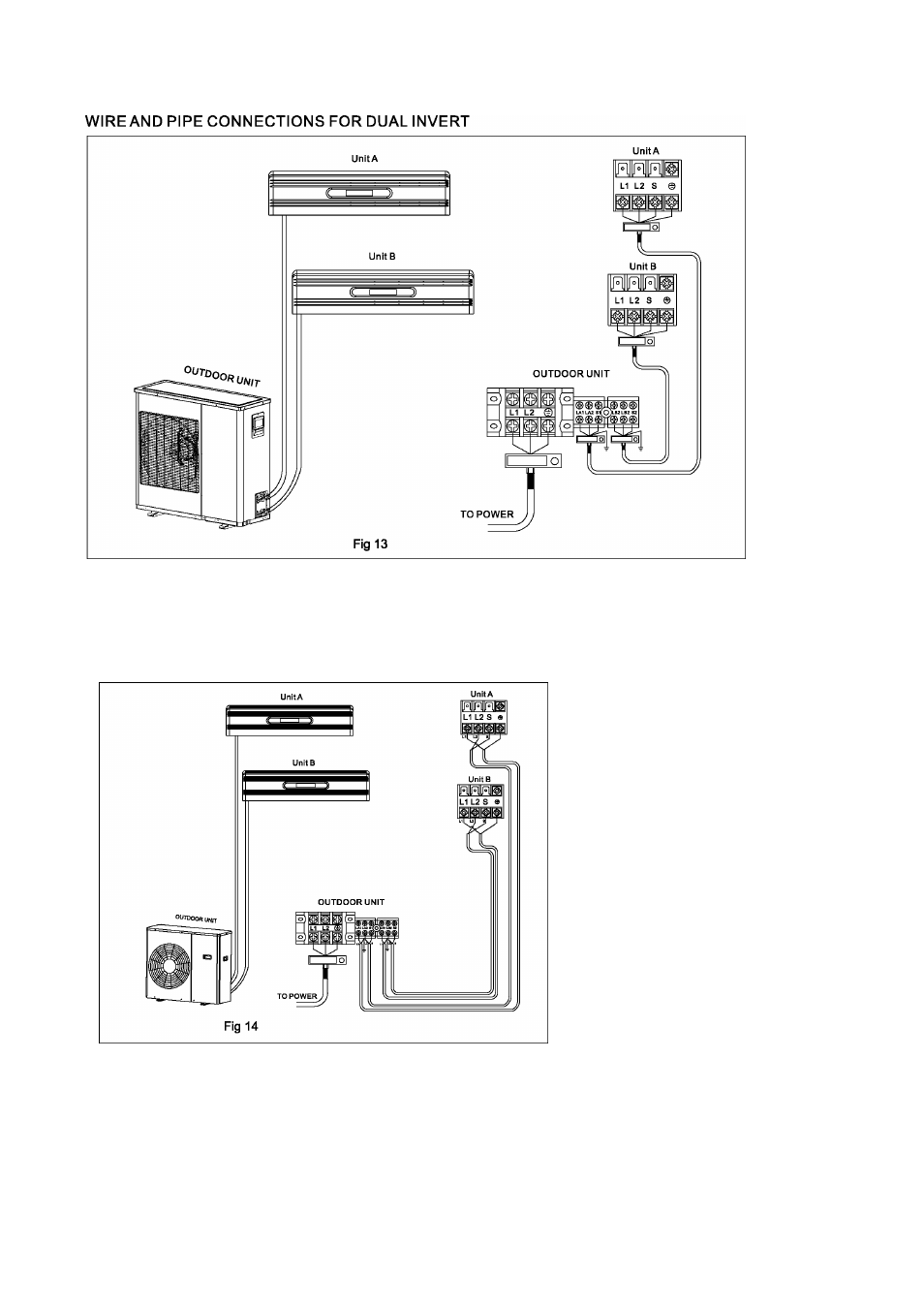

For North America Model: Fig 13.14
Electrical connections:
Power input cable:
1
group
3
wiresX
14
AWG
cable between indoor an outdoor units:
2
group
4
wiresX
14
AWG
This figure adapt to AOM
183
HX(AWM
093
HX+AWM
093
HX)
Electrical connections:
Power input cable: 1 group 3 wiresX 14AWG
cable between indoor and outdoor units: 2 group 2 wiresXI4AWG
This figure adapt to AOM243HX(AWM123HX+AWM123HX or AWM093HX+AWM123HX)
