LOCATION OF OUTDOOR UNIT
Select the location considering the foiiowing:
OUTDOOR UNIT
1 .The location must allow easy servicing and provide good air circulation as shown in f i g
8
.
2.The unit may be suspended from a wall by a bracked(Optional)or located in a free standing
position on the flooripreferably slightly elevated).
3.lf the unit is suspended , ensure that the bracket is firmly connected and the wall is strong
enough to withstand vibrations.
4. Unit location should not disturb neighbours with noise or exhaust air stream.
5. Place the mounting pads under the unit legs.
6
.

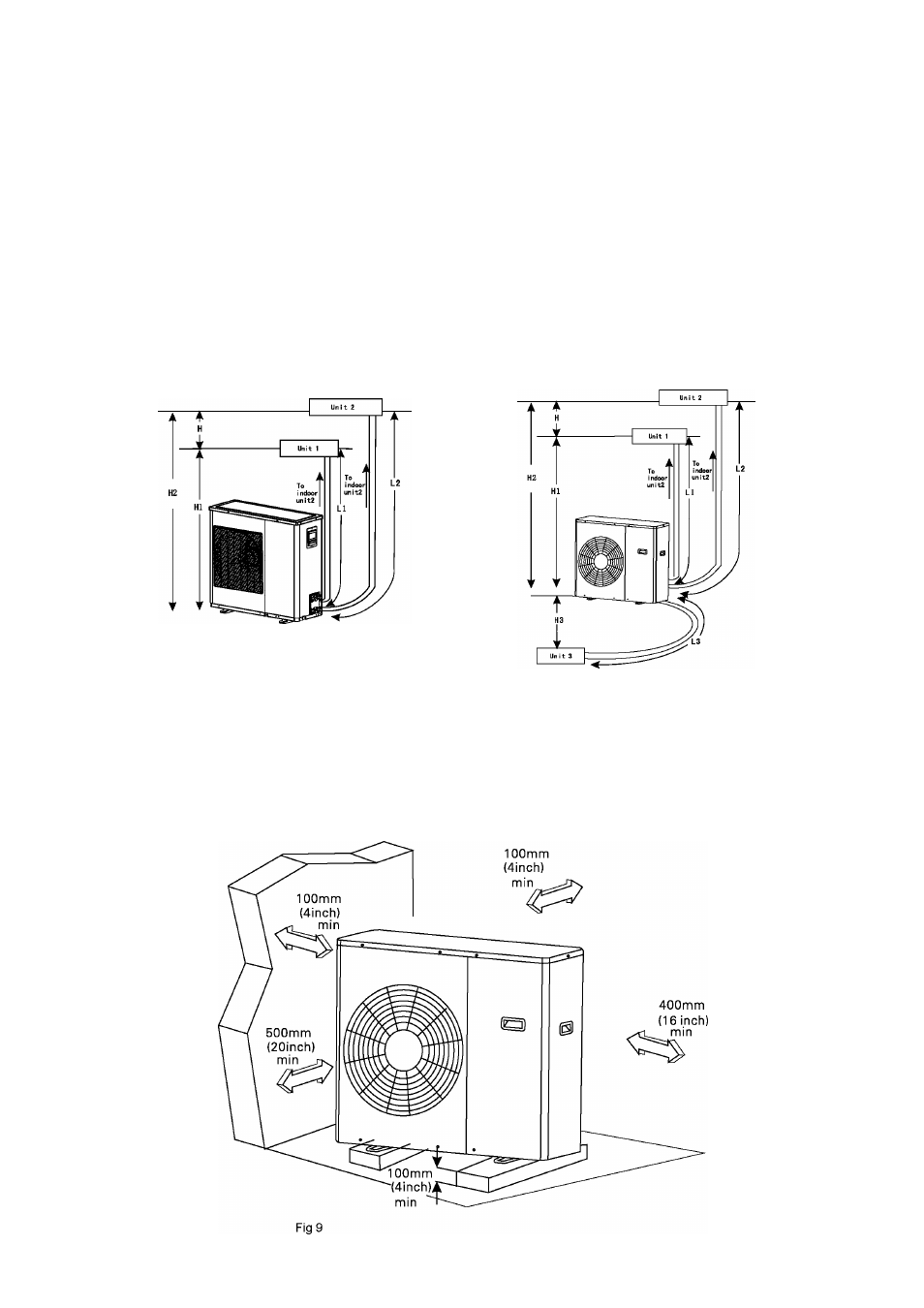

Refer to figuregfor allowed installation distances.
25mm(82FT)
L,+L2^30m(100FT)
H„H2^10m(33FT)
Fig
8
L„L„L3^25m(82FT)
L,+L2+L3^50m(164FT)
H,,H2,H3^10m(33FT)
