FINISHING

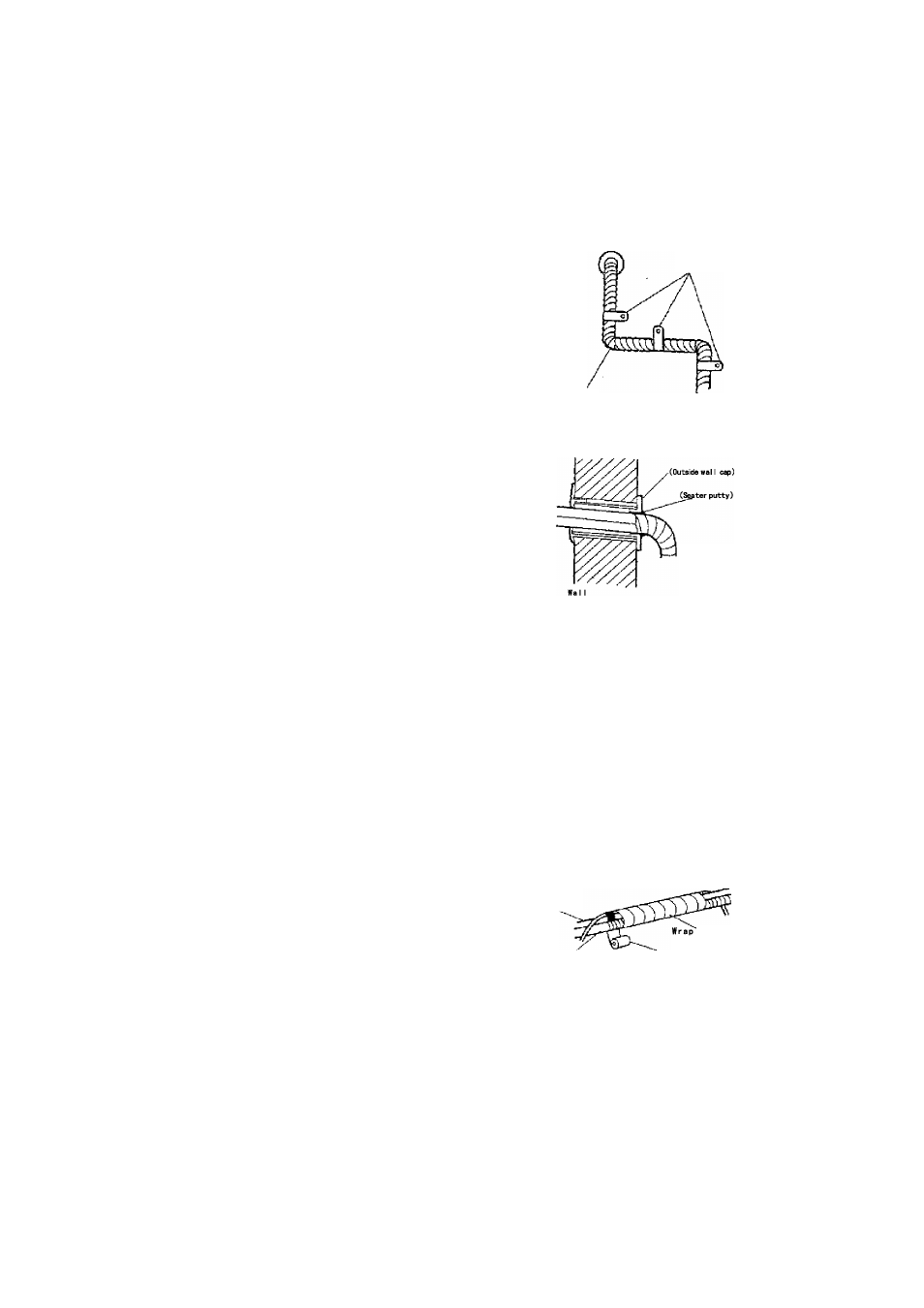

1. Insulate between pipes.
•
For rear,right,and beween piping,overlap
the connection pipe heat insulation and
indoor unit pipe heat insulation and bind
them with vinyl tape so that there is no gap.
• Forleftand left rear piping,butthe connection
pipe heat insulation and indoor unit pipe
heat insulation together and bind them
with vinyl tape so that there is no gap .
•
For left and left rear piping , bundle the
piping and drain hose together by wrapping
them with cloth tape over the range within
which they fit into the rear piping hosing
section.
2. Temporarily fasten the connection cord
along the connection pipe with vinyl tape.(
(Saddle)
P i pe
(Outdoors)
Over lapthe insulation
Connection^^e
Wrap to about 1/3 the width of the tape
So that there is no gap.
the bottom of the pipe so that water does not
enter.)
3. Fasten the connection pipe to the outside
wall with a saddle etc.
4. Fill the gap between the outside wall pipe
P i pe
hole and the pipe with sealer so that rain
water and wind cannot blow in.
5. Fasten the drain hose to the outside wall,
etc.
vinyl tape
w i t h
0 I oth tape
Cloth tape
©
