PREPARATIONS

Check the AC voltage

The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voitage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord in the end.

Speakers

There are no difference between the front speakers as well as
the surround speakers. Both speakers of its kind can be
connected as L (left) or R (right).

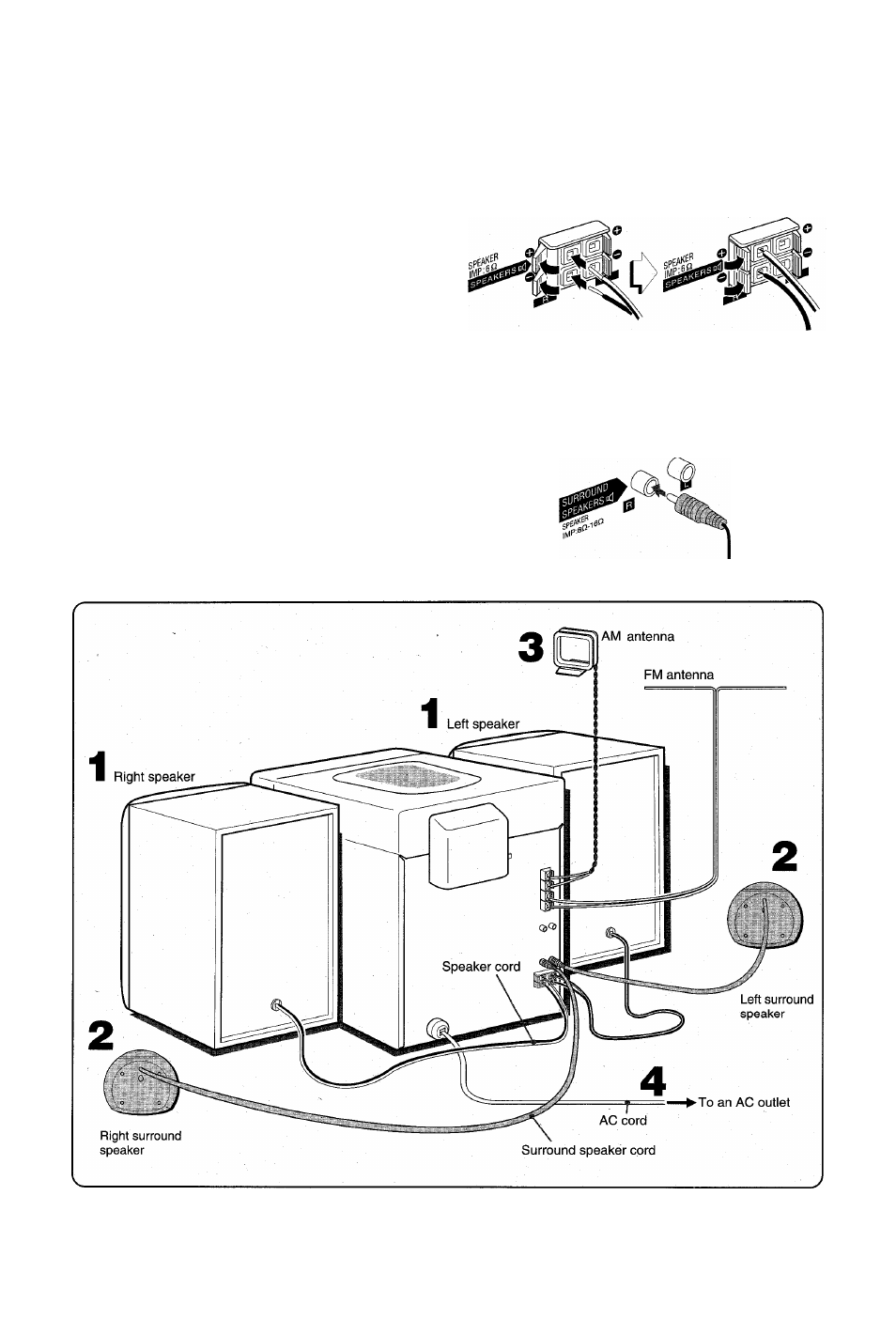

1 Connect the right and left speakers to the main

unit.

Connect the right speaker cord to

SPEAKERS R

terminals,

and the left to

SPEAKERS L

terminals.

The speaker cord with the white stripe should be connected
to the O terminal and the black cord to the © terminal.

2 Connect the surround speakers to the main unit.

Connect the right surround speaker cord to

SURROUND

SPEAKERS R

terminal, and the left to

SURROUND

SPEAKERS L

terminal.

ENGLISH
